Overview

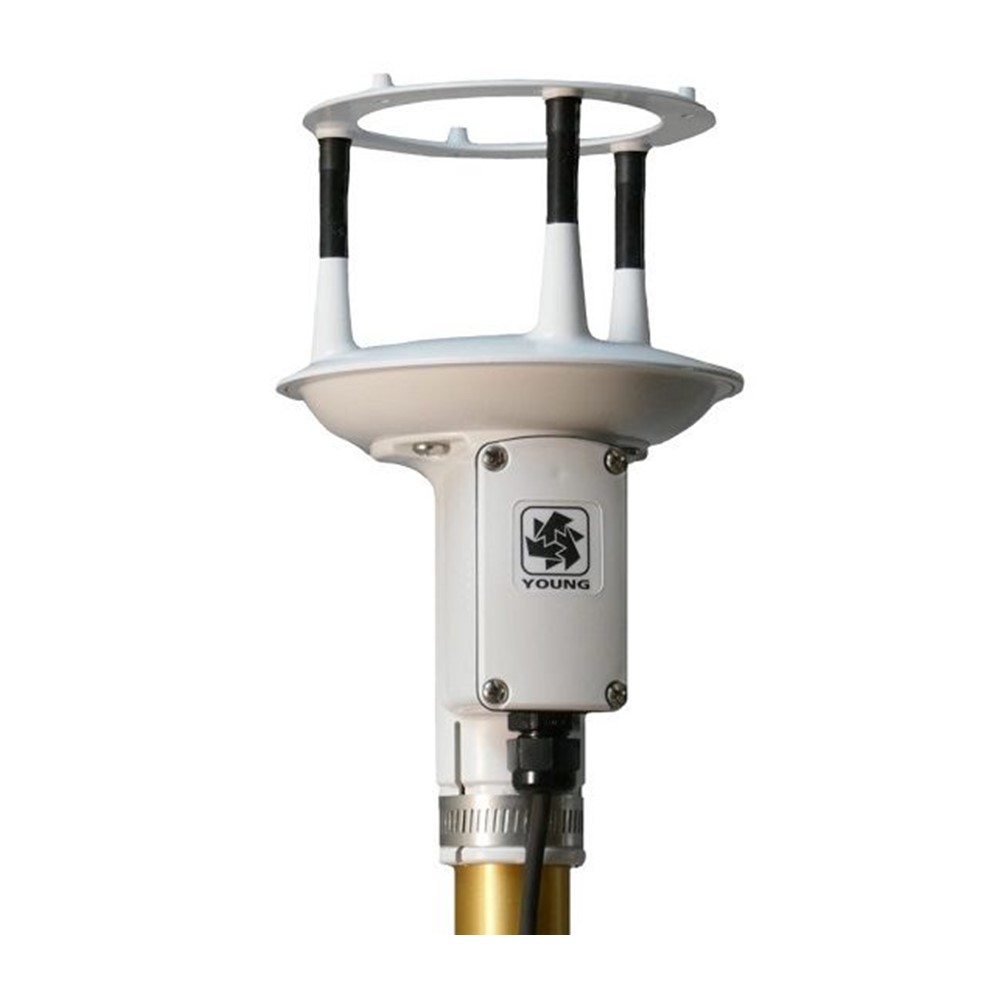

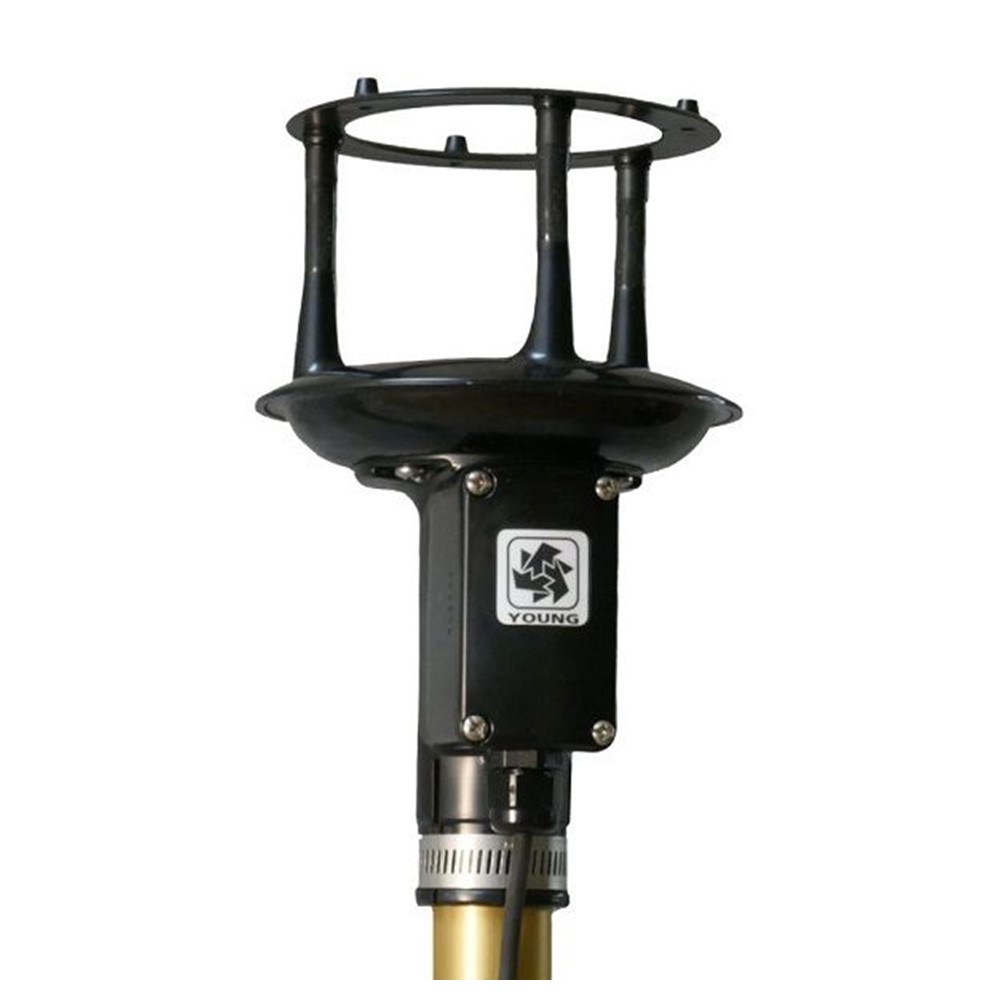

The YOUNG Model 915000 and 910000 ResponseONE Ultrasonic Anemometer is ideal for general meteorological applications requiring accurate and reliable measurements.
Durable
The IP66 rated construction enables reliable operation in severe environments. Each sensor is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range. Standard serial output formats include SDI-12, NMEA, and ASCII text. Output may be continuous or polled to conserve power. Standard RS-232 or RS-485 serial formats enable direct integration with YOUNG displays, marine NMEA systems, data loggers or other compatible serial devices. The sensor mounts on a standard 1-inch IPS pipe. A mounting orientation ring is included that engages with the base of the sensor to retain orientation when the sensor is removed for maintenance. Terminations are made in a junction box at the base of the sensor by small clamp-style connectors (no special connectors are required).
Internal Compass
The YOUNG Model 91500 ResponseONE Ultrasonic Anemometer includes an internal compass to provide orientation for wind direction, making it ideal for mobile or portable applications.
Wind Speed:
Range: 0-70 m/s (156 mph)
Resolution: 0.01 m/s
Accuracy:
+/-2% or 0.3 m/s (0-30 m/s)
+/- 3% (30-70 m/s)
Wind Direction:
Azimuth Range: 0-360 degrees
Resolution: 0.1 degree
Accuracy: +/- 2 degrees
Electronic Compass (Models 91500 & 91500B):
Range: 0-360 degrees
Resolution: 1 degree
Accuracy: +/- 1.4 degrees
Serial Output (selectable):
Interface: RS-232, RS-485/422, SDI-12
Formats: NMEA, SDI-12, ASCII (polled or continuous)
Baud Rates: 1200, 4800, 9600, 19200, 38400
Power:
Voltage: 10-30 VDC
General:
Protection Class: IP66
EMC Compliance: FCC Class A digital device, IEC Standard 61326-1
Dimensions: 22.5 cm high x 13.5 cm wide
Weight: 0.36 kg (0.8 lb)
Shipping Weight: 1.27 kg (2.8 lb)
Operating Temperature: -40 to +60 C
Removable Bird Spikes: Included
