Wave Energy Converter Training System Hydrodynamics Lab Educational Equipment

Description

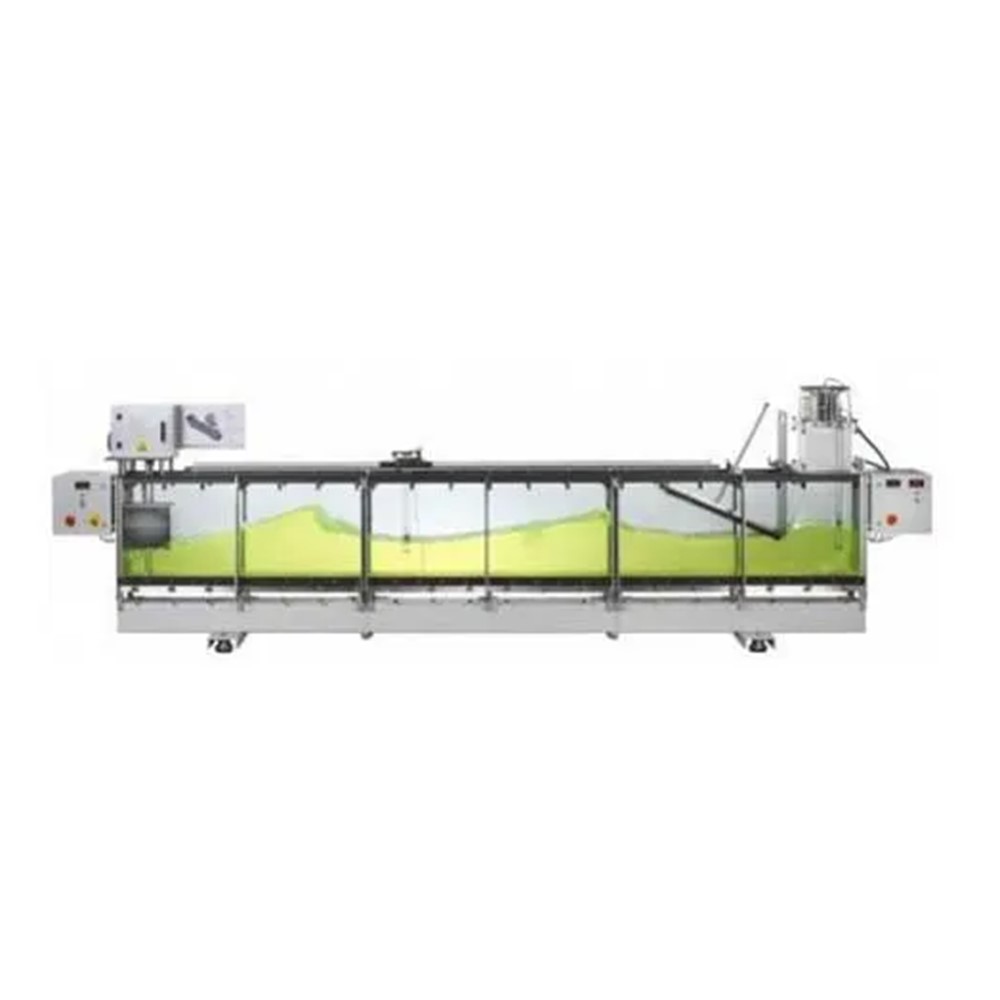

MR1044 Wave Energy Converter Training System Hydrodynamics Lab Educational Equipment

The System Should Cover the Following Training Objectives:
Investigation of operating principles of a wave energy converter
Understanding of energy generation from wave motion
Conducting measurement of wave motions
Investigation of design and operation of a wells turbine
Optimization of operating behavior
Minimum Technical Specifications Required (like or better than):
Wave generator of power: 0.5KW and displacement volume: 25L
control unit
AC motor with adjustable frequency
Adjustable lift of displacer

Baffle plate for guiding the wave into the chamber
Wave energy converter with oscillating water column, chamber
Turbine load should include: DC motor for starting up the turbine, switches to generator
Wave flume of Dimensions LxWxH: 4800x280x550mm
Wells turbine of max power 1000mW, maximum speed of 5900rpm, six blades rotor and outer diameter: 120mm, inner diameter: 80mm
Portable wave measurement unit with level sensor of range 0 to 600mm
Current measuring range: up to ±980mA

Wave generator frequency measuring range: 0 up to 1.8Hz
Flow velocity: 0 up to 25m/s
Speed measuring range: 0 up to 5900rpm
Should be able of operating manually
Should include software for data acquisitioning and for operating the system digitally
USB interface
PC Core i7, DVD+/-RW, 8GB RAM, 1TB Hard Disk Drive, Optical Mouse, Multimedia Keyboard, Monitor (21″) LED
