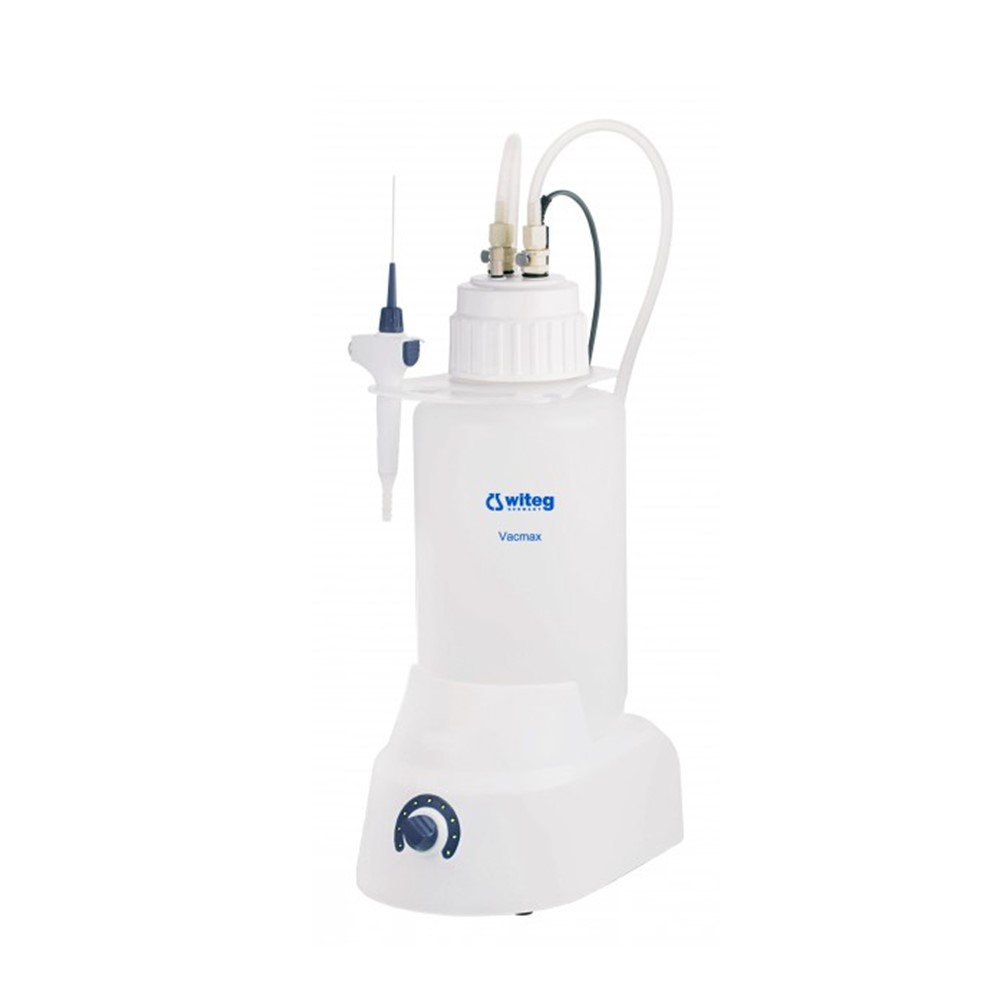

Vacuum suction system Vacmax, integrated vacuum pump with vacuum control

Suitable for:

  • for laboratory waste recycling and for separating solids and liquids
  • can be used in cell culture, DNA extraction, microplates, waste disposal and other liquid separation or recovery processes

Description

Technical features:

  • the vacuum range can be adjusted to achieve different aspiration speeds from 1 ml/s to 15 ml/s (liquids 1 – 17 ml/s).
  • Sensitive level sensor to prevent liquid overflow during operation
  • fully autoclavable collection bottle, tubing and handle
  • Lid, hose and handle are easy to disassemble, clean and autoclave
  • wide range of adapters to mount tubing, microplates and disk plates for different tasks
  • Interchangeable handle – suitable for various tasks thanks to tip adapter, from single channel to 8 channels, depending on the application with tubing, microplate, disk plate, etc.
  • including a hydrophobic filter 0.45 μm, Ø6 mm
  • Pump noise less than 65 dB (A)
  • CE certificate and traceability by serial number

Accesories:

  • Needle Ø1.5mm, 60mm
  • Filter (Hydrophoc) 0.45 µm
  • PPCO vacuum collection bottle 4 l
  • 8-channel release adapter (1)
  • 8-channel needle Ø1.5 mm (2)
  • 1-channel release adapter (3)
  • Needle Ø2.5mm, 6mm (4)
  • long needle Ø2.5 mm, 120 mm (5)
  • long needle Ø1.5 mm, 120 mm (6)

Autoclavable

hose, collection bottle, handle

width (outside)

180mm

length (outside)

240mm

height (outside)

450mm

power supply

100-240VAC, 50/60Hz

vascular capacity

4L

speed

Air suction: 1 – 15 ml/s, liquid suction: 1 – 17 ml/s

vacuum area

0 – 600 mbar

packaging size

560x410x220mm, 5kg
