Compact and light weight thanks to direct connection to the motor.
Features of Vacuum Pumps, Compact (PQ30)

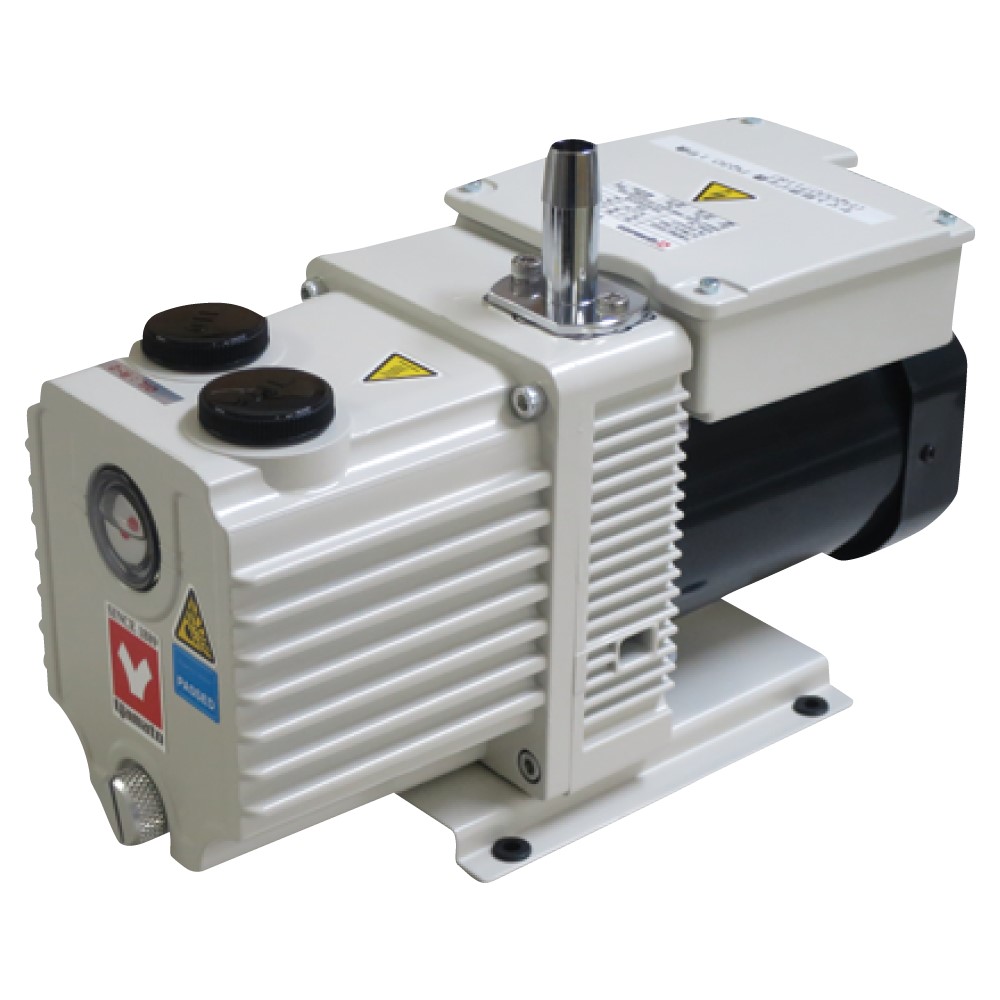

Vacuum Pumps, Compact (PQ30)
Description
Features
Integrated check valve below the inlet port and pump internal atmospheric release mechanism for backflow prevention.
Features
Magnet coupling produces low noise and results to longer lifetime of shaft seal.
| Model | PQ30 |
|---|---|
| Oil amount (mL) | 370mL |
| Oil type | R-2 |
| Effective exhaust speed (50 Hz) | 30l/min |
| Effective exhaust speed (60 Hz) | 36l/min |
| Attainable vacuum (Pa) | 0.67 Pa |
| Motor | Single phase,100-120V,100W,2P |
| Suction pipe diameter (mm) | O.D.15 x I.D. 11 mm |
| Operating atmospheric temp. range (deg.C) | 7 to 40℃ |
| External dimensions（W×D×H mm） | 120×289×163mm |
| Power Source | AC115V / AC220V Single phrase with step down transformer |
| Weight | 9.3kg |
