Compact and light weight thanks to direct connection to the motor.

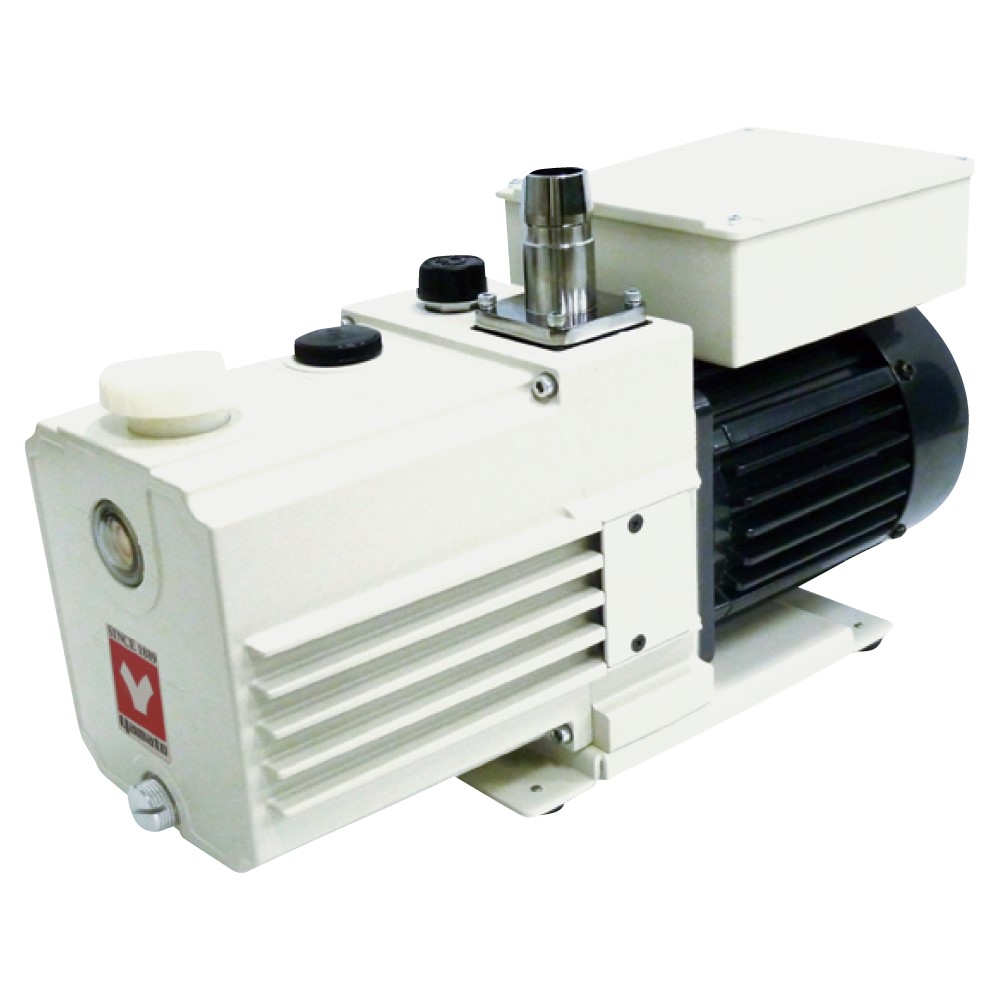

Features of Vacuum Pumps, Compact (PQ100)
Compact and light weight thanks to direct connection to the motor.
Features of Vacuum Pumps, Compact (PQ100)
Features
Safe for continued operation with the integrated thermal protector.
Features
Easy to transport. Also ideal for embedding into a unit.
Features
Magnet coupling for no oil leakage from shaft seal and realized longer lifetime. Integrated check valve below the inlet port for backflow prevention. (PQ30/100)
Model | PQ100 |
---|---|
Oil amount (mL) | 1000mL |
Oil type | R-2 |
Effective exhaust speed (50 Hz) | 100l/min |
Effective exhaust speed (60 Hz) | 120l/min |
Attainable vacuum (Pa) | 0.67 Pa |
Motor | Single phase,100V,300W,2P |
Suction pipe diameter (mm) | O.D.27×I.D.20 mm |
Operating atmospheric temp. range (deg.C) | 7 to 40℃ |
External dimensions(W×D×H mm) | 150×414×235mm |
Power Source | AC115 V/AC220V Single phrase with step down transformer |
Weight | 22kg |
