Small Oil Rotary Vacuum Pump Standard Available for Various Applications
Features of Vacuum Pumps, Compact (PD53)

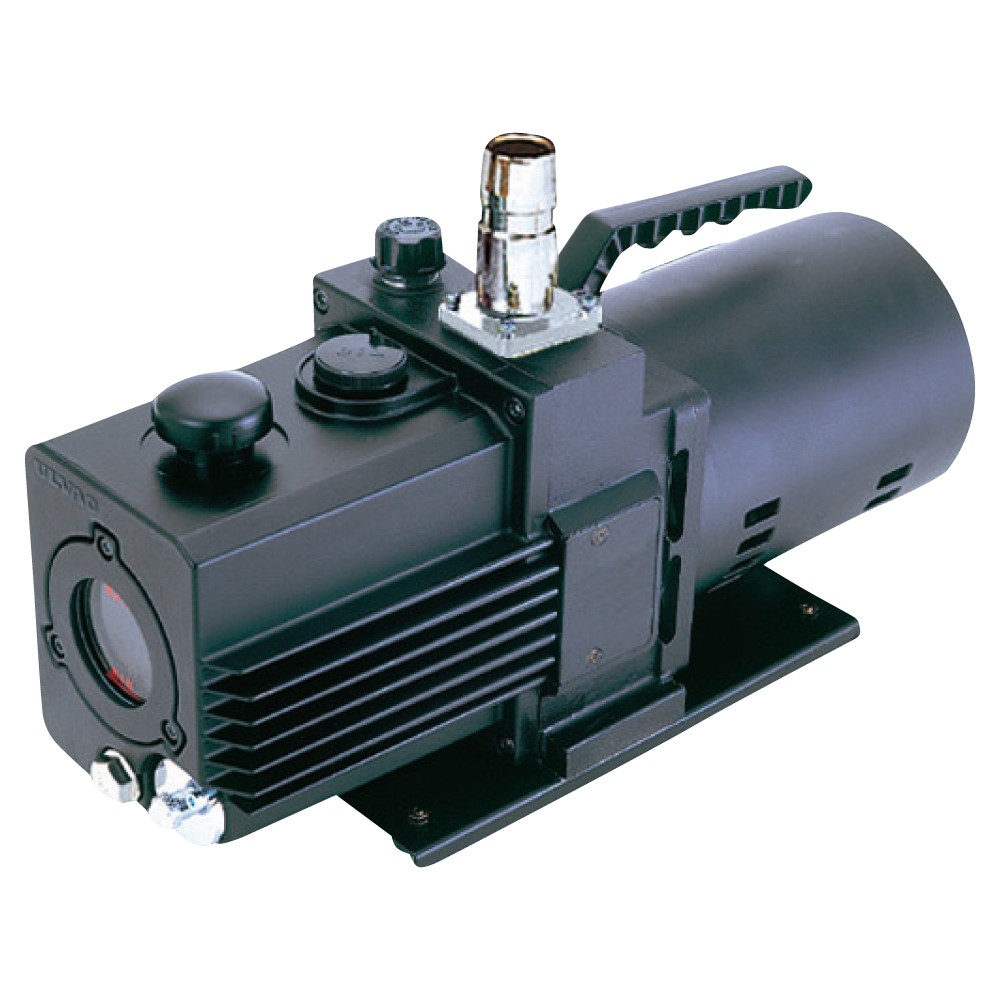

Vacuum Pumps, Compact (PD53)
Description
- Built-in thermal protector
- Built-in thermal protector, continuous operation is safe.
- Oil backflow prevention valve
- It is with an oil check valve.
| Model | PD53 |
|---|---|
| Effective pumping speed (50 Hz) | 50l/min |
| Effective pumping speed (60 Hz) | 60l/min |
| Ultimate pressure | 0.67 Pa |
| Oil amount | 650mL |
| Oil type | SMR-100 |
| Intake pipe diameter | O.D. 18 × I.D. 14 mm |
| Operating ambient temperature range | 7 to 40℃ |
| External dimensions（W×D×H mm） | 166×395×247mm |
| Power Source | AC115V /AC220V Single phase with step-down transformer |
| Weight | 13.9kg |
