Compact and light weight thanks to direct connection to the motor.

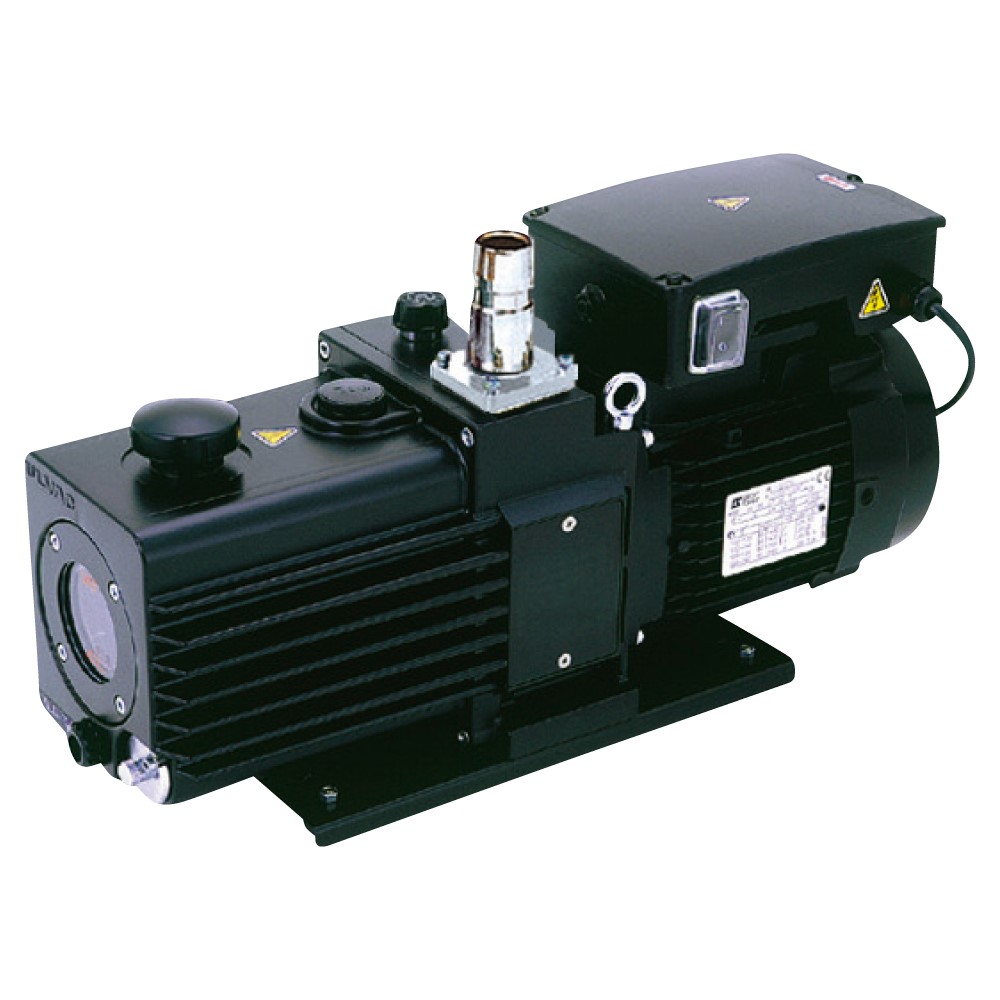

Features of Vacuum Pumps, Compact (PD139)
Compact and light weight thanks to direct connection to the motor.
Features of Vacuum Pumps, Compact (PD139)
Features
Safe for continued operation with the integrated thermal protector.
Features
Two-step exhaust system to attain high level vacuum. (Model PD)
Features
Easy to transport. Also ideal for embedding into a unit.
Features
Equipped with an oil stop valve. (PD53/139/204)
Features
Large oil level gauge allows easy check of dirt. (PD53/PD139/204)
Features
Supports multi voltages of 100 to 120V and 200 to 240V. (PD139/204)
Model | PD139 |
---|---|
Oil type | SMR-100 |
Effective exhaust speed (50 Hz) | 135l/min |
Effective exhaust speed (60 Hz) | 162l/min |
Attainable vacuum (Pa) | 0.67 Pa |
Motor | Single phase,100/200V,400W,4P multiple-range motor |
Oil amount (mL) | 1000mL |
Suction pipe diameter (mm) | O.D.27×I.D.20 mm |
Operating atmospheric temp. range (deg.C) | 7 to 40℃ |
External dimensions(W×D×H mm) | 170×488×263mm |
Power Source | AC100-120V/AC200-240V Single phase |
Weight | 29kg |
