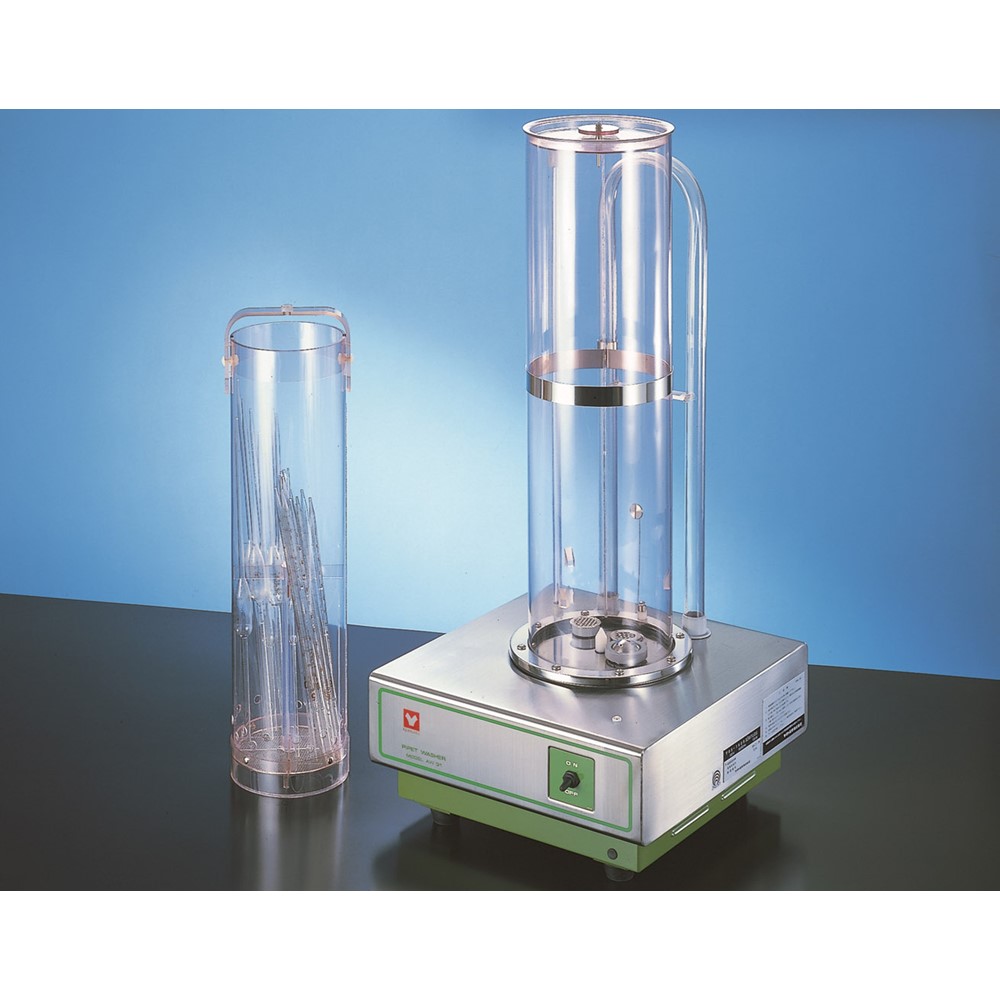

Compact, washing and rinsing function ultrasonic washer
Features of Ultrasonic Pipet Washer (AW31)
Compact, washing and rinsing function ultrasonic washer
Features of Ultrasonic Pipet Washer (AW31)
Features
With return current system for smart cleaning efficiency.
Features
Dirty liquid is drained by the force of jet from bottom nozzle for good cleaning.
Features
Bath basket is spinning constantly for good cleaning.
Features
Compact design.
Features
Washing and rinsing can be done in one washer.
Features
Washable by water-soluble alkaline detergent.
Model | AW31 |
---|---|
Pipet quantity | Pipet (Max. 500mm) 1mL = 264pcs 5mL = 216pcs. 10mL = 136pcs |
Operation water amount | 1 to 3L/min. |
Ultrasonic oscillator | High frequency output, 55W, 28kHz Oscillation plate: stainless steel, SUS430 Oscillator: ball ferrite |
Bath material | Clear vinyl chloride |
Cabinet | Stainless Steel SUS304 |
Accessories | Rack , Manual pump , Water supply hose : I.D. 12mm×1.5m length ,Drain hose : I.D. 25mm×1.5m length ,Detergent |
Internal dimensions(φ×H mm) | φ138×540mm |
External dimensions(φ×W×D×H mm) | φ146×390×400×844mm |
Power Source | AC115V/AC220V 1A Single-phase with step-down transformer |
Weight | 18.5kg |
Remarks(weight) | Basket : Approx. 1 kg |
