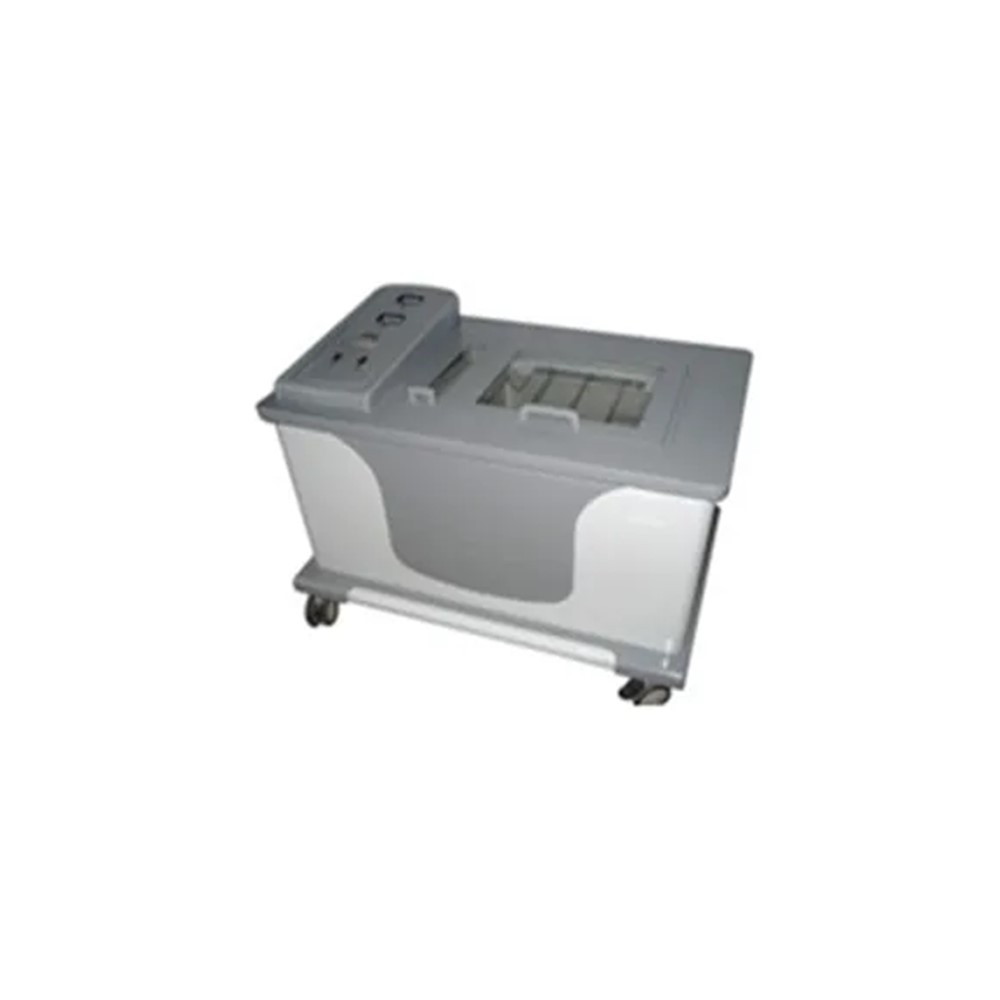

Tin Lead Plating Machine Didactic Equipment Teaching Equipment PCB Product Line Equipment

I. Introduction
1.Double sides, multi layer circuit board etc. non-metal material double side drilling hole protection.
2.Full ABS engineer plastic machine and inner groove, antiseptic, anti high temperature, anti vibration, technology flow is good, outlook is beautiful.
3.★Cathode oscillation technology, prevent concentration gradient, add hole liquid flow. Swing time:3-5 times/minute.

Technical specification:
4.★Max panel:400×400mm, it can electroplate for 5 boards at the same time.
5.Minimum hole:0.6mm
6.Max thickness diameter ratio, 3:1
7.Output voltage:0-15V,adjustable continuously
8.Output current:0-20A, adjustable continuously
9.Dimension:420×430×420mm
10 ★With 2 groove, one is for tin-lead plating, the other is for quit tin-lead.
