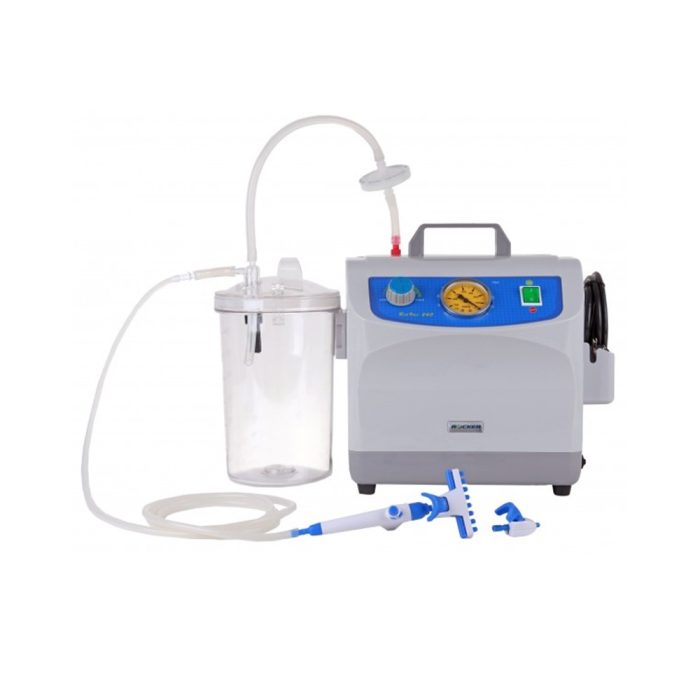

Suction system BioVac 225/240 to -720 mmHg, flow rate 38 l/min

Suitable for:

  • cell culture aspiration
  • laboratory waste suction

Description

Technical features:

  • up to -720mmHg
  • up to 38 l/min
  • Diaphragm (BioVac 225) or piston pump (BioVac 240)
  • Overflow protection in the intake bottle
  • 0.2 µm PTFE hydrophobic filter disc between suction bottle and pump prevents the medium from flowing into the pump
  • oil-free, maintenance-free, low noise level
  • Accessories and suction bottle autoclavable
  • CE certificate



BioVac standard is supplied with a 1-channel adapter (150 mm).

BioVac Plus comes with handle, 1-channel adapter with tip ejector (POM), 8-channel adapter with tip ejector (POM) and 1-channel adapter (150 mm).

features

Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.

execution

Pump type: membrane

width (outside)

37 cm

length (outside)

15 cm

height (outside)

25 cm

material

Suction bottle: PC

suitable / suitable for

Cell culture suction, laboratory waste suction

Connection

3/16 inch (5mm)

vascular capacity

1000ml

vacuum area

Max. -680mmHg

flow rate

23 l/min
