Suitable for:
- Protection of samples and work processes from particle contamination

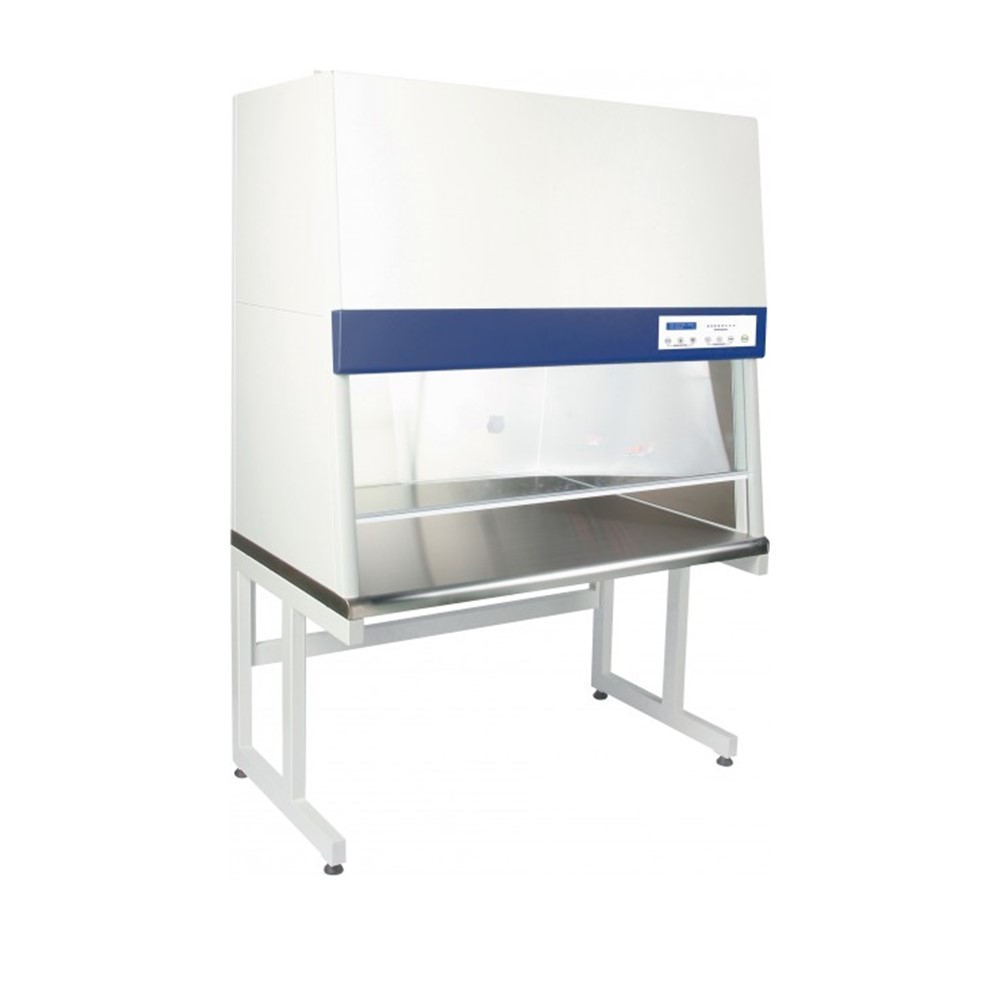

Sterile bench WLCV 1350/1700/2020 m²/h with HEPA filter
Description
Technical features:
- Class 100 HEPA filter removes up to 99.97% & 0.3 µm size (easy to change)
- Mesh protective grid for HEPA filters
- vertical airflow
- optimized airflow system for uniform vertical airflow/velocity
- 8-level air speed control
- UV and fluorescent lamp, external connection valve for gas, internal socket
- quiet and vibration-free fan (under 65 dB)
- Corrosion-resistant 304 stainless steel work table, powder-coated housing and sliding door made of toughened safety glass for protection against UV radiation
- 99h 59min timer
- high-quality backlit LCD display
- CE certificate and traceability through serial numbers
Safety device:
- UV protection system: UV lamp only lights up when the safety glass door is completely closed
Steering:
- digital microprocessor control
- High-performance touch control panel
Safety cabinet WLC-V, HEPA filter class 100, UV (20W) and fluorescent lamp (36W), power cable, user manual
features
HEPA filter class 100 & vertical air flow: The clean bench offers reliable protection for samples and work processes against particle contamination. The air above the housing passes vertically through a pre-filter and a class 100 HEPA filter, which removes particles with an efficiency of up to 99.97% & a size of 0.3 microns.
UV lamp: The integrated UV lamp contributes to improved sterilization. It switches off automatically when the door is opened.
Door: The easy-to-open sliding door made of toughened safety glass ensures safe working and protection against UV radiation.
Connections: Working with different types of equipment inside the sterile bench is made possible with two different integrated power connections. In addition, two different types of gas can be connected.
Control: Intuitive, capacitive knob control. 8-level air speed control. Timer function for the UV lamp.
Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.
width (inside)
1200mm
length (inside)
660mm
height (inside)
610mm
width (outside)
1280mm
length (outside)
735mm
height (outside)
1895mm
filter
HEPA filter: class 100, 0.3 μm particle removal 99.97%; Pre-filter: 3-30 μm particle removal
suitable / suitable for
Protection of samples and work processes from particle contamination
Connection
1 x air tap, 1 x gas tap, 2 x 230V power connections
lighting
1 x UV 20W, 1 x FL 36W
speed
Air flow: 0.3 – 0.6 m/s, resolution: 8 levels
air volume
1,350 m2/hr
