Automatic operations carried out with an interactive key input system.
Features of Steam Sterilizer (Laboratory Use) (ST201)

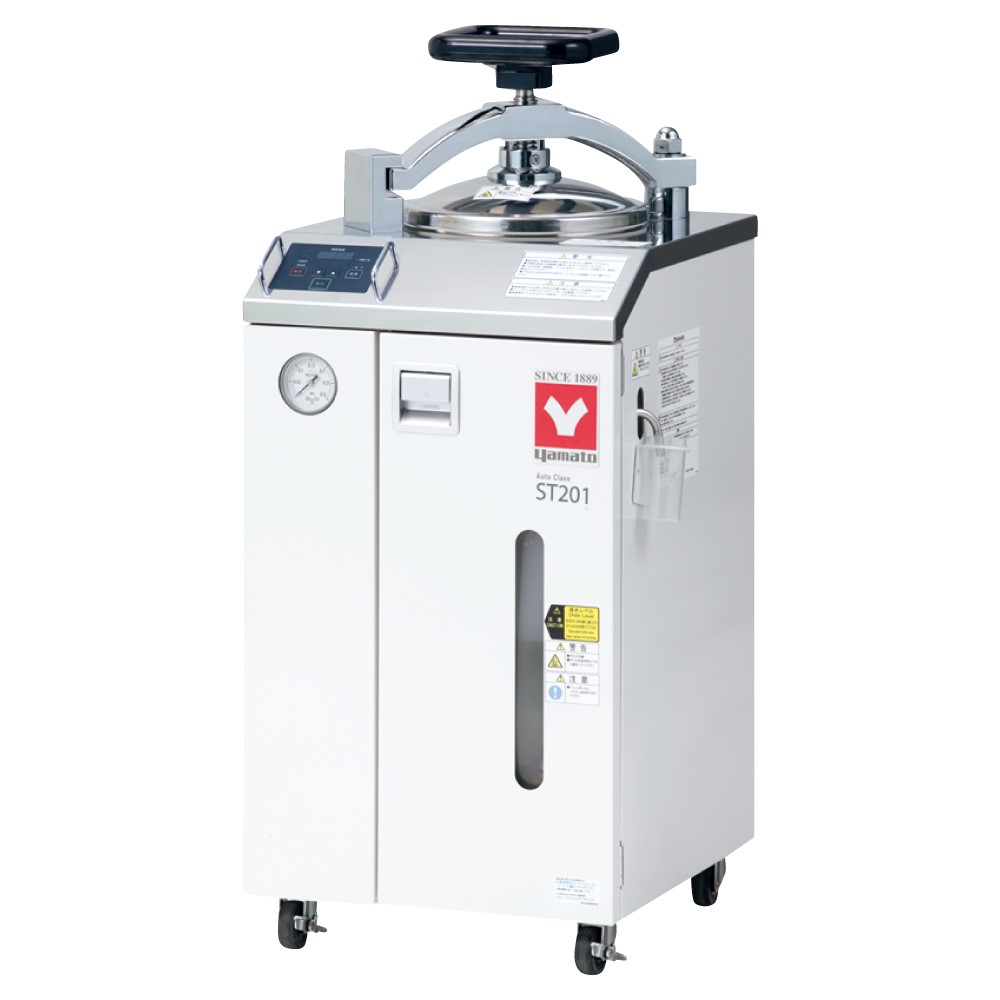

Steam Sterilizer (Laboratory Use) (ST201)
Description
Features
With an interactive key input system, the conditions are memorized.
With a single key press, everything is done automatically from air exhausting to sterilization and dry.
Safety measures are enriched, including self-diagnosis function.
| Model | ST201 |
|---|---|
| System | Automatic high pressure steam sterilizer |
| Temp. setting range: Sterilization | 105 to 123deg.C |
| Maximum operational pressure | 0.18MPa |
| Interior Material | Stainless steel |
| Heater | 1.3kW |
| Temp. controller | PlD control by micro processor |
| Temp. setting method | Digital setting by UP/DOWN key |
| Temp display method | Digital display by green LED |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. |
| Min. division | 1 min. or 1 Hrs. |
| Safety countermeasures | Self diagnosis functions (Sensor, Heater, SSR, Main relay, Low water), Over pressure safety valve, Electric leakage breaker |
| Internal dimensions（φ×H mm） | φ240×445mm |
| External dimensions（W×D×H mm） | 410×470×957mm |
| Remarks(dimensions) | 20 (22) liters |
| Power Source | AC220V 6.2A Single phase |
| Weight | 60kg |
| Accessories | 2 Racks (mesh pitch 8.5 mm), 1 Drain board, 1 Steam saucer and 1 Drain bottle. |
