High-performance, easy operation and ergonomically designed sterilizer featuring wasy top loading and handling of samples

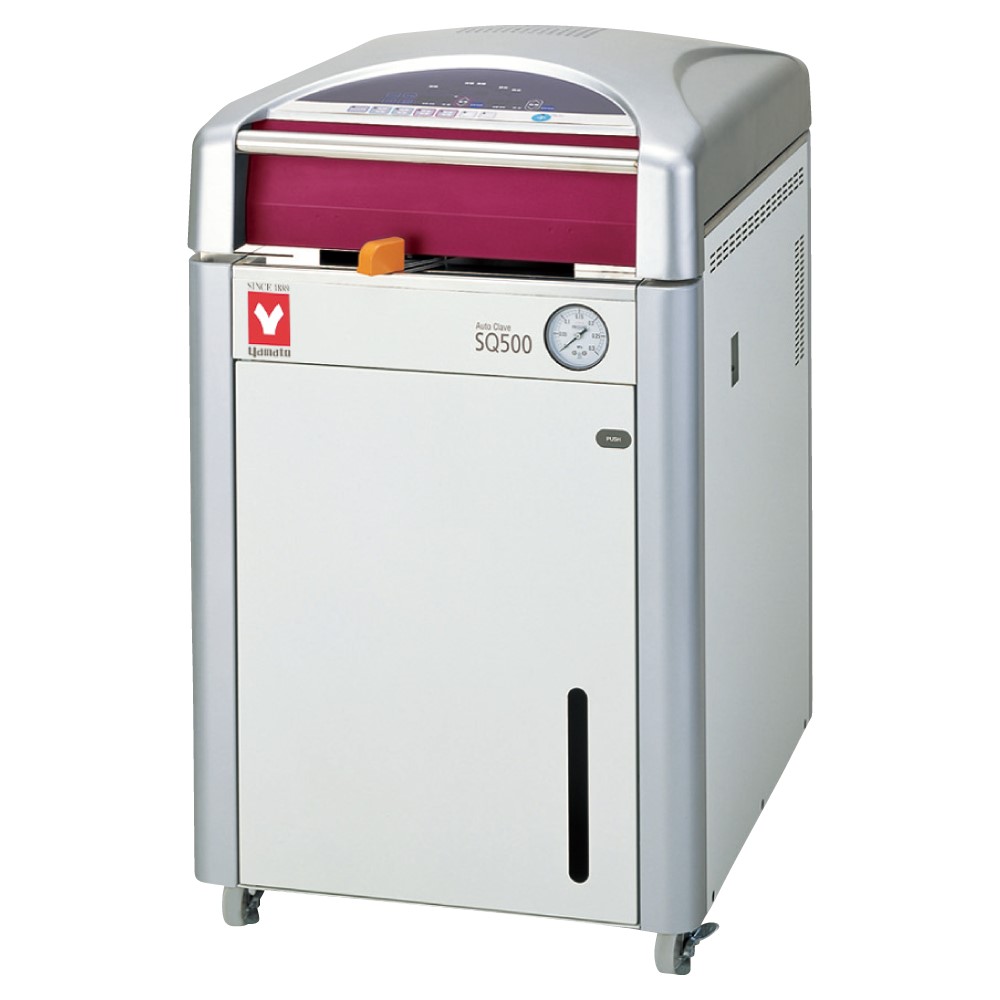

Features of Steam Sterilizer (Laboratory Use, Large Capacity) (SQ500)
High-performance, easy operation and ergonomically designed sterilizer featuring wasy top loading and handling of samples
Features of Steam Sterilizer (Laboratory Use, Large Capacity) (SQ500)
Features
Maximum sterilizing temperature goes up to
135°C suitable for protein modification
Features
By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
Features
Custom programs can be saved for repeated use
Features
Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
Features
Mobile on wheels
Enhanced safety device
Lid interlock mechanism, Drain bottle unset alarm, Memory malfunction, Automatic shutdown when malfunction, Self-diagnostic functions
Model | SQ500 |
---|---|
System | Automatic high-pressure steam sterilization |
Operating temperature range | 45~135℃(45~80℃[pre heating temperature]/45~60℃[heat retention phase ]/65~100℃[disolution phase ]/105~135℃[sterilizing phase]) |
Max. working pressure | 0.255MPa |
Ambient temperature | 5~35℃ |
Lid | Manual upward opening with an interlock for safety |
Heater | 1000W×2 units |
Exhaust valve | One exhaust valve and one slow release valve |
Connection ports for optional | Total 3 ports. Female thread for sample temp. sensor (1/4″ ), Female thread for chamber temp. sensor (1/4″ ), |
Cooling fan | Axial fan motor |
Temp. controller | PID control by microprocessor |
Temp. display / setting | Digital display / digital setting by ▲/▼ keys |
Timer / Timer resolution | 0 or 1 min. to 99 hrs 59 min. / 1 minute |
Operation mode | Instrument sterilization course, Liquid sterilization course, Sterilization and keep warm course, Melting and keep warm course, |
Other features | Key locking, Presetting, Saving, preheating, Forced cooling, Sample temperature sensor (option), Pattern locking, |
Safety device | Sensor failure detection, SSR short-circuit, Broken heater wire, Prevention of idle heating (Liquid expansion type), |
Accessories | 2 pcs. stainless steel mesh basket, Vapor cup×1, Drain bottle×1, Drain board×1, Filter×1 |
Internal dimensions(φ×H mm) | φ370×442mm |
External dimensions(W×D×H mm) | 520×660×846mm |
Remarks(dimensions) | Internal dimension of chamber 47.5L |
Power Source | AC100~120V Blaker capacity 20.5~24.5A |
Weight | 95kg |
