RCF-free (alumina fiber) that complies with RCF regulations is used for the furnace chamber.
Features of Standard Electric Furnace (FO201)

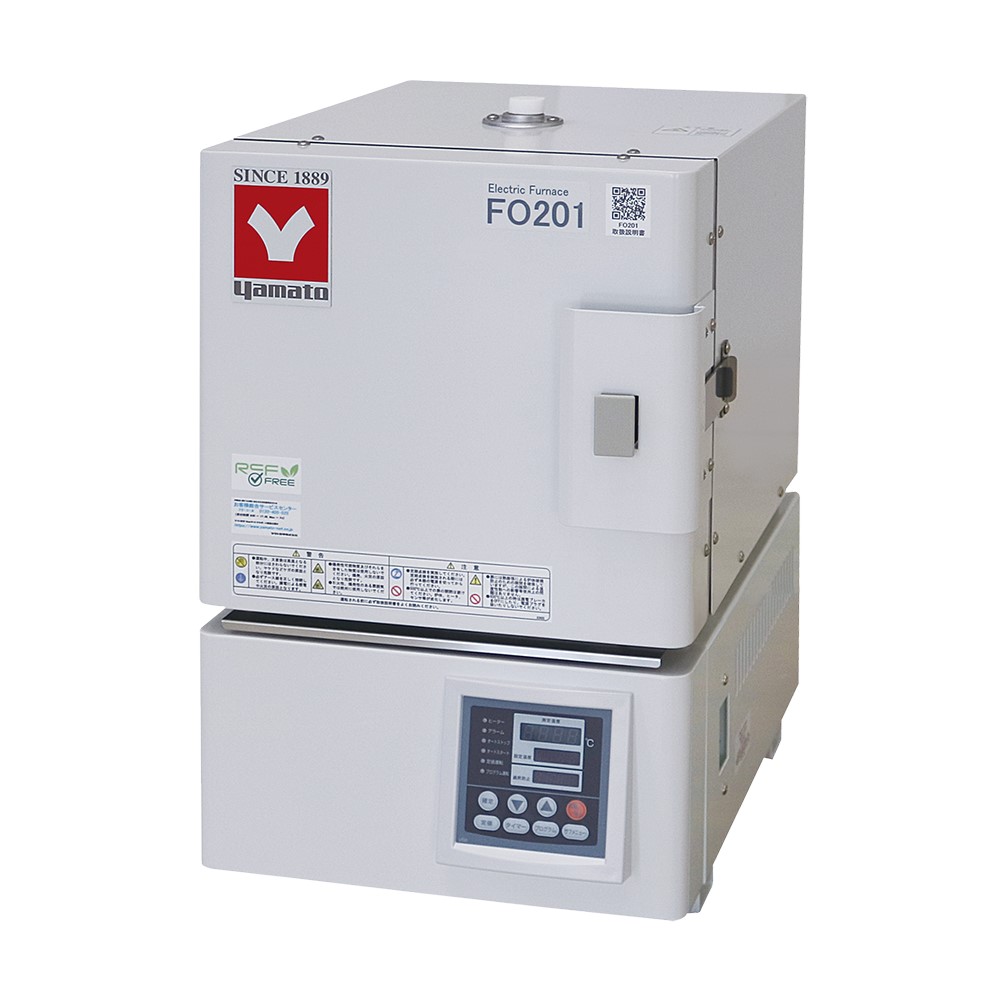

Standard Electric Furnace (FO201)
Description
Features
RCF-free, safe and secure
Features
Simple Operation
Features
Equipped with program operation and timer function
Features
Improved safety functions
Features
Uses R thermocouple
Features
Equipped with a variety of options
| Model | FO201 |
|---|---|
| Operating temp. range | 100 to 1,150℃ |
| Temp. control accuracy | ±2.0℃（at 1,150℃） |
| Max. temp. reaching time | Approx. 60min. |
| Exterior material | Chrome-free electro-galvanized steel plate, Chemical proof painting |
| Internal material | Alumina fiber |
| Sensor | R-thermocouple |
| Heater | Iron-chrome wire |
| Heater | 1.5kW |
| Exhaust port | 20 mm I.D. (upper part) |
| Cooling Fan Type | Axial fan motor |
| Temp. controller | PID control by microprocessor |
| Temp. setting/display method | Digital setting by▲/▼ keys / Digital display |
| Overheat protection | Integrated controller |
| Overheat protection set | Digital setting |
| Operation function | Fixed temp., program (6 modes 30 seg.×1, 15 seg.×2, 10 seg.×3) |
| Additional function | Calibration off-set, Power outage compensation |
| Timer | 1min to 99hr59min and 999hr 50min digital setting, Auto start, Quick auto stop |
| Safe Device | Self diagnosis circuit (Abnormal temp. sensor, Auto overheat protection), Averheat protector, Avercurrent ELB |
| Accessories | 1 exhaust cap, 1 thermal fuse |
| Internal dimensions（W×D×H mm） | 100×250×155mm |
| External dimensions（W×D×H mm） | 346×505×567mm |
| Remarks(dimensions) | 3.75L |
| Power Source | Single Phase AC100V 16A Plug is not attached, Electric code length is 2m |
| Weight | 30kg |
