Features of Spray Dryer (Large Capacity) (DL410)

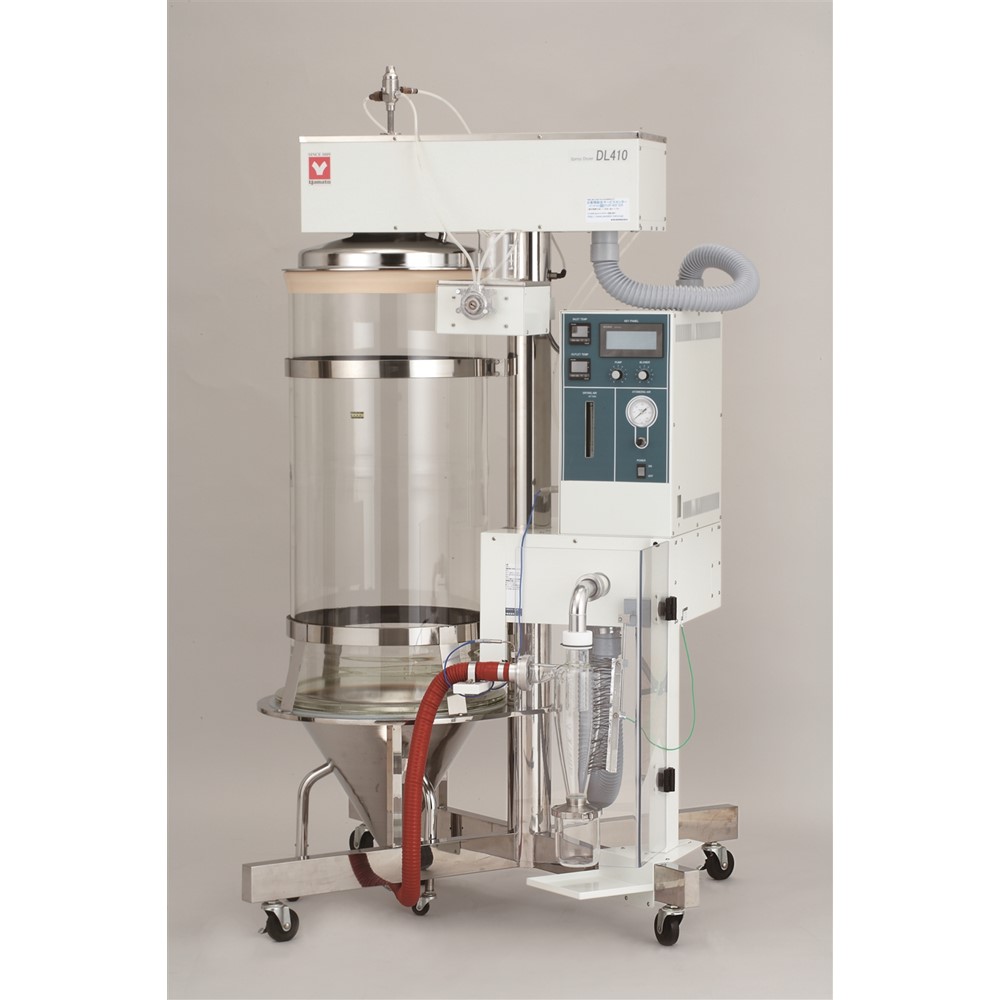

Spray Dryer (Large Capacity) (DL410)
Description
Features
This spray dryer can produce fine particles from 40 to
100μm which are considered to be extremely difficult to
produce in laboratories. It is useful for preliminary tests for
pilot plant or expensive samples, micro capture spray
drying research, substitute for general laboratory drying
method etc.
Features
Air flow meter, pressure gauge and other measurements allow easy control of experiment conditions
Features
Safe for heat-sensitive samples, such as food or medical products
Features
Digital display of inlet/outlet temperature and drying air volume
Features
Detachable drying chamber, cyclone and product vessel
Easy operation and maintenance
The hot air inlet and drying chamber cover automatically move up and down, and since the cyclone and product vessel can easily be removed,
cleaning and maintenance after your experiment is easy
Features
Control functions are conveniently arranged on the control panel for various conditions
| Model | DL410 |
|---|---|
| Water evaporation rate | Max. approx. 3,000 ml/h |
| Temperature control range | 40°C – 300°C at inlet |
| Dry air flow rate | 0.3 – 1.0 m³/min |
| Spraying system | Two-way nozzle (Dia. of orifice: 0.7mm) Nozzle No.3 standard supply |
| Spray/hot air contact system | Downward spray parallel flow system |
| Temperature controller | PID digital temperature controller |
| Temperature sensor | K thermocouple |
| Stainless pipe heater | 2kW×2 |
| Sample liquid feeding pump | Flow rate variable up to 70ml/min. |
| Drying chamber | Ultra hard glass, I.D. 457 x 975(H) mm |
| Spray line cleaning | Needle inside the nozzle to clean the mesh automatically |
| Safety device | Inlet/Outlet temp. overheat, Sample feed reverse rotation mechanism, Overheat prevension of heat room, ELB, Safety cover |
| Air spray pressure gauge | Bourdon tube: 0 – 0.3 M Pa |
| Included Accessories/Sample liquid tube | Silicone tube – 2 pcs |
| Included Accessories/Static removal brush | 1pc |
| Included Accessories/Air hose | 1 pc |
| Included Accessories/Exhaust duct | 1 pc |
| Nozzle | 4, 5 (options), 3 standard |
| Compressed air | 28 L/min air volume and 8 kgf/cm2 compressed air is required |
| External dimensions（W×D×H mm） | 1060×880×1750mm |
| Power Source | AC220V 22A Single phase |
| Weight | 180kg |
