Easily micronize liquid samples with a spray dryer

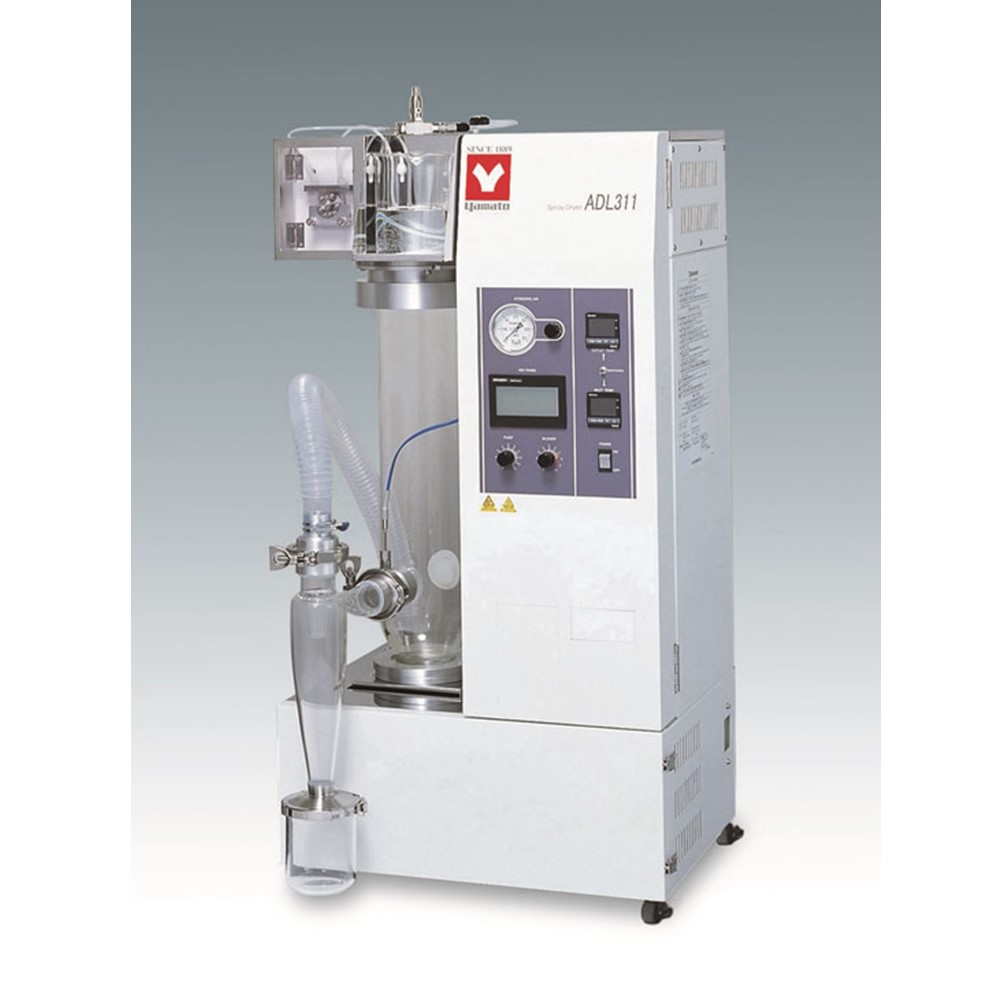

Features of Spray Dryer (ADL311-A)
Easily micronize liquid samples with a spray dryer
Features of Spray Dryer (ADL311-A)
ADL311-A: For aqueous soluble samples
Features
Easy setup, easy operation
Features
Suitable for heat sensitive samples. High heat is not directly applied to dry, fine powder
Features
Obtain contaminant free fine powder which is not oxidized and contains minimal moisture
Features
Direct drying of solution or solution liquid into fine powder. No pre- or post processes such as filtration, separation, or pulverization required
Features
Easy operation with one-touch detachable mechanism for drying chamber and cyclone
Features
Unique peristaltic pump, nozzle cooling mechanism, pulse jet mechanism and a nozzle knocker for stable spray drying
Model | ADL311-A |
---|---|
Temp. adjusting unit setting range | 40 to 220deg.C (inlet temperature), 0 to 60deg.C (outlet temperature) |
Temperature adjusting accuracy | Inlet temperature±1deg.C |
Drying air amount adjusting range | 0〜0.7m3/min |
Spray air pressure adjusting range | 0〜0.3MPa |
Liquid sending pump flow rate range | 0〜26 ml/min |
Spray air line washing function | Spraying at the nozzle tip, manual pulse jet system |
External output | Inlet temperature, outlet temperature, temperature outlet (4-20 mA) |
Temperature adjusting device | PID digital temperature adjusting device |
Touch panel | Blower, heater, liquid sending pump, pulse jet switch, error display |
Control select switch | Inlet temperature, outlet temperature control switch (Outlet temp. control is conditional.) |
Temperature sensor | K-thermocouple |
Heater | 2.0 kW (at 200V) to 2.88 kW (at 240V) |
Liquid sending | Fixed amount peristaltic pump |
Spraying air pump | Spraying air compressor (sold separately) is used |
Service outlet | For stirrer: AC100V, MAX2A |
Suction blower | Bypass blower |
Filter | Suction filter, exhaust filter |
Recovery of solvent | – |
Spray nozzle cooling mechanism | Connector: nipple x 2, O.D.:φ10.5 mm |
Spray air connection diameter | Nipple diameter:φ7 mm |
Spray air pressure | Bourdon tube: 0.3 MPa |
Exhaust connecting diameter | φ50mm |
Safety function | Inlet/outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error |
External dimensions(W×D×H mm) | 580×420×1125mm |
Power Source | AC220V AC220V Single phase |
Weight | 80kg |
