Highly safe N2 gas sealed circulation system, which can be operated with a spray dryer unit
Features of Solvent Recovery Unit (GAS410)

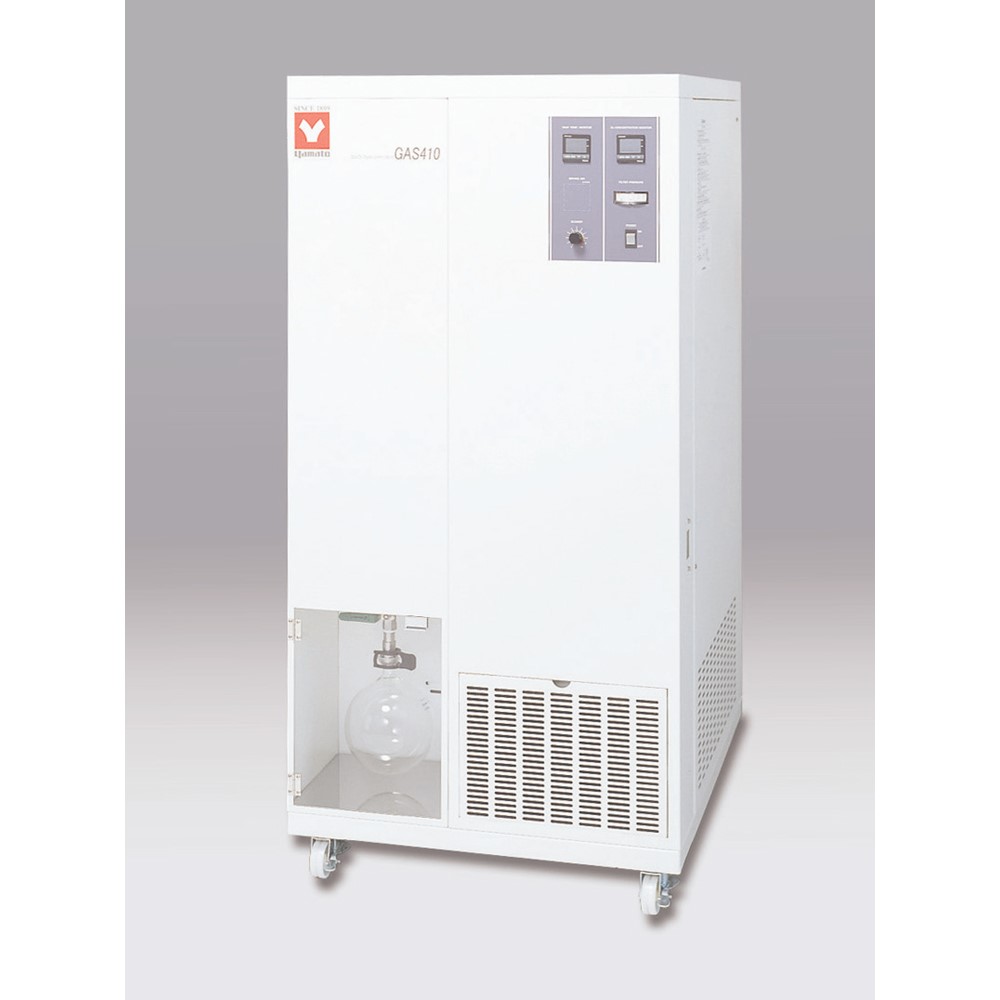

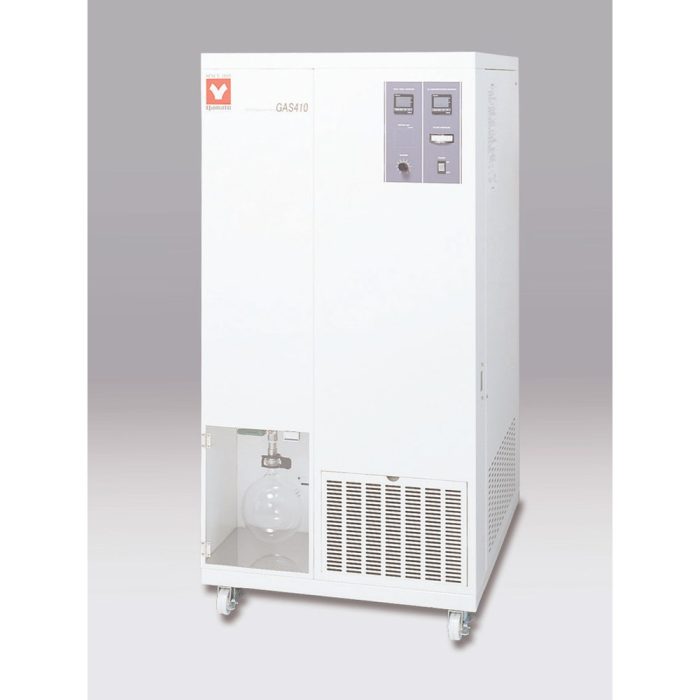

Solvent Recovery Unit (GAS410)
Description
Features
The Inert N2 Gas Sealed System is used to prevent external
discharge when combined with a spray dryer (ADL311SA or
GB-210A) when using an organic solvent.
Features
Dehumidifier (Freezer) integrated in GAS410. No extra Freezer/
dehumidi-fier equipment needed
Features
Compressor included, no need for a separate compressor to operate
the spray dryer ADL311SA when using organic solvent samples
Features
Flammable or toxic solvents can be processed by combining a N2 gas
sealed circulation system and a solvent recovery system (with freezer
and capacitor)
Features
Explosion safety with closed loop N2 inert gas systemFeaturesRecovery of solvent to protect the environment and enable minimized
pollution.
Features
Drying of easily oxidized materials is possible
Features
Supports low temperature drying of materials that easily deform with
heat
Features
No freezing risk due to organic solvent with aqueous solution mixtures
which could cause damage to the closed loop GAS410 system
Features
Spray drying and recovery of products and solvents are performed with
meticulously devised safety measures
| Model | GAS410 |
|---|---|
| Solvent recovery system | Capacitor + freezer |
| Circulating gas | N2 gas (sealed circulation when connected to ADL311SA or GB-210A) |
| Circulating volume flow | 0.12 to 0.65m3/min |
| Compressor (for spraying) | Linear compressor integrated |
| Circulation blower | Roots blower |
| Solvent recovery container | 2L flask |
| Freezer | Air-cooled condensation full-sealed type: 400W R404A (GWP:3920) |
| Solvent recovery mechanism | Capacitor cooling mechanism |
| Filter | Cartridge filter |
| Instruments | Cooling trap temperature display monitor Filter differential pressure meter (Monitor for clogging of filter) O2 density display monitor Blower wind amount adjusting volume |
| O2 sensor | Solid electrolyte (Zirconium) limit current type |
| Pump | For circulation to measure Oxygen |
| Safety device | O2 density meter, Flammable gas alarm, Electric leakage breaker, N2 gas forced introduction (when removing nozzles) |
| Required N2 amount | 15 L/h at 0.1 MPa |
| Accessories | Set of connection parts, anti-seismic clamps, interface cable, sample gas for gas alarm inspection, 2L flask |
| External dimensions（W×D×H mm） | 700×950×1500mm |
| Power Source | AC200-AC240V Single phase AC200〜240V 5A（15A） |
| Weight | 130kg |
