Description

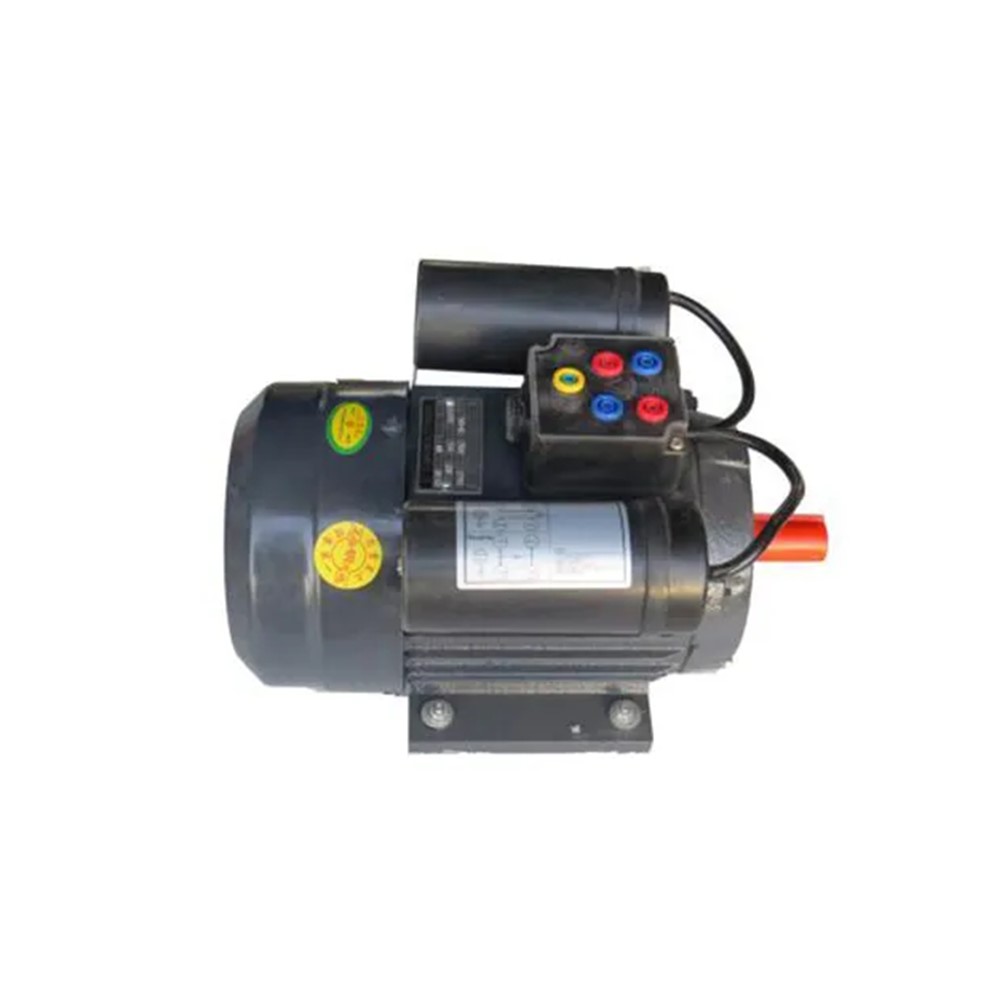

MR386E Single-phase Asynchronous Motor Vocational Training Equipment Electrical Engineering Lab Equipment

I. Introduction
Single-phase dual-capacitor motors are called single-phase dual-capacitor asynchronous motors, which belong to single-phase motors with the principle of capacitor splitting.
This is a high-torque single-phase motor.
The circuit of the motor is connected with a starting capacitor and a running capacitor.

It is widely used in agricultural appliances and daily appliances.
The forward and reverse of the single-phase motor can be realized by reversing the main and auxiliary windings of the motor,
that is, the rotation can be changed by changing the two leads of the main winding (the leads of the auxiliary winding can also be adjusted).

II. Performance parameters
Single-phase two-value capacitor asynchronous motor
Rated power: 0.75KW
Speed: 1490r/min
Frequency: 60Hz
Current: 5.4A
Voltage: 220V;
