Highly functional type, Standard equipped with motorized lift, vacuum regulator, vapor temperature display functions
Features of Rotary Evaporator (RE801A-O)

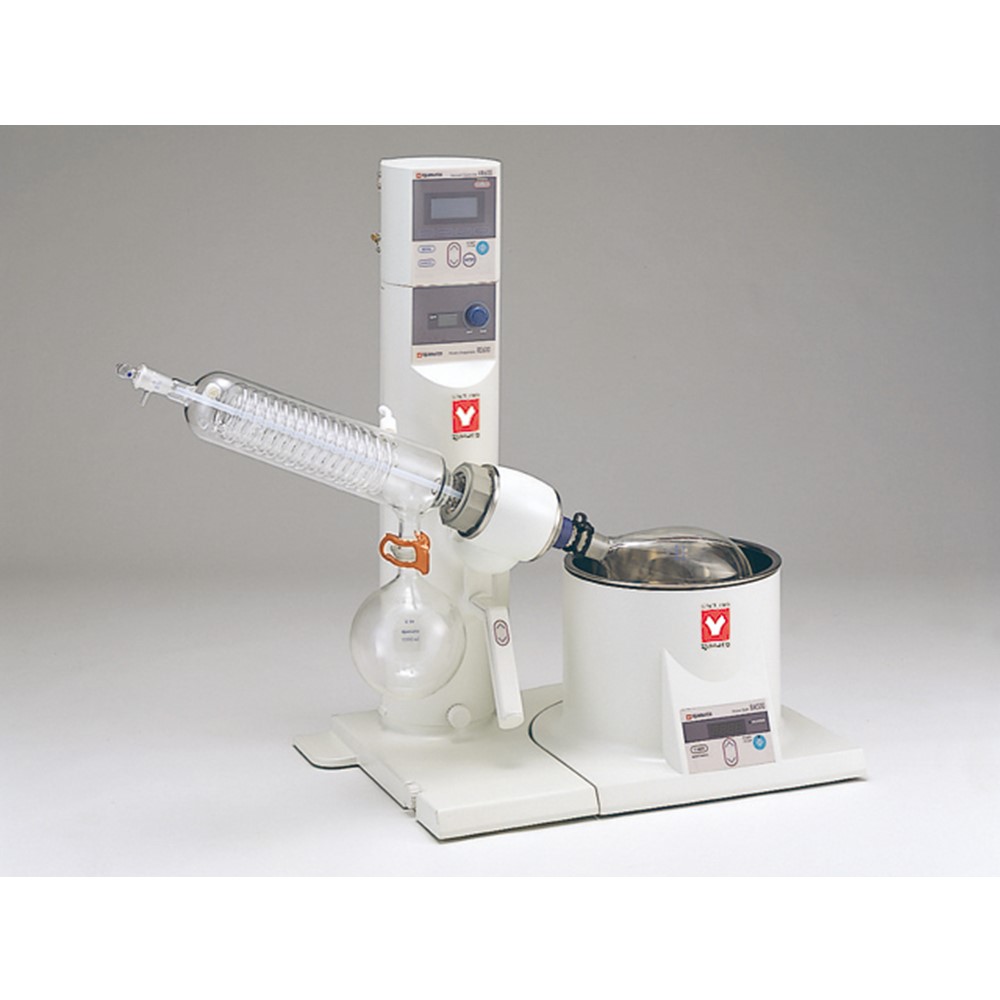

Rotary Evaporator (RE801A-O)
Description
Features
One touch electric lift for easy up and down movement.
Features
Digital setting and display for motor speed (rpm), vacuum and vapor temperature.
Features
Stable rotation at low and high speeds.FeaturesUnique durable vacuum seal suitable up to 2L flasks.
Features
One touch operation for displaying and saving operating conditions.
Features
Equipped with lift-up switch in the event of power outage.
Features
Compact, fits into any fume hood.
Features
Universal power supply: works with 100-240VAC.
Features
Automatic distillation
Features
Continuous bath control
Features
Data on 53 solvents installed as default
| Model | RE801A-O |
|---|---|
| Motor | DC brushless motor (for rotation) |
| Controller | Vacuum regulator VR800 |
| Lift stroke | 130ｍｍ |
| Setting range of vacuum | 0 to 981hPa |
| Measurable range of vacuum | 0 to 1033hPa |
| Resolution of vacuum | 1hPa |
| Setting range of hysteresis | 1 to 50hPa |
| Resolution of vapor temperature indicator | Selectable (either 1°C or 0.1°C) |
| Readout of cooling water temperature | Depending on indicator (option) |
| Resolution of cooling water temperature indicator | 1℃ or 0.1℃ |
| Operation modes | Free, fixed temperature, fixed temperature timer, descending, and descending timer, auto I (auto operation with continuous drying), and auto II (auto operation for distillation of single solvent) |
| Setting range of timer | 1-999 minutes in increments/decrements of 1 minute for preset operations, 1-99 minutes for descending timer operations |
| Memory | 10 programs for each operation |
| Data operation | 53 kinds of solvent data |
| Speed (rpm) setting | Rotation: Control knob Vacuum adjustment: Key pad |
| Safety measures (drive unit) | Circuit breaker, rotor for overload protection, manual adjustment of lift’s lower limit, lift-up switch during power outage |
| Safety measures (vacuum regulator) | Self-diagnostic functions, main unit / bath synchronized stop at malfunction, error display |
| Synchronized control feature | Selection of automatic bath stop or automatic insulation |
| Lifting feature | One-touch motorized lift system |
| External dimensions（W×D×H mm） | 828×400×727mm |
| Remarks(dimensions) | When glass set A is installed. Lift-up time: 857 mm |
| Power Source | AC100 to 240V 1.5A |
| Weight | 15kg |
| Remarks(weight) | Excluding glass · water bath / oil bath |
