Features of Rotary evaporator (RE202)

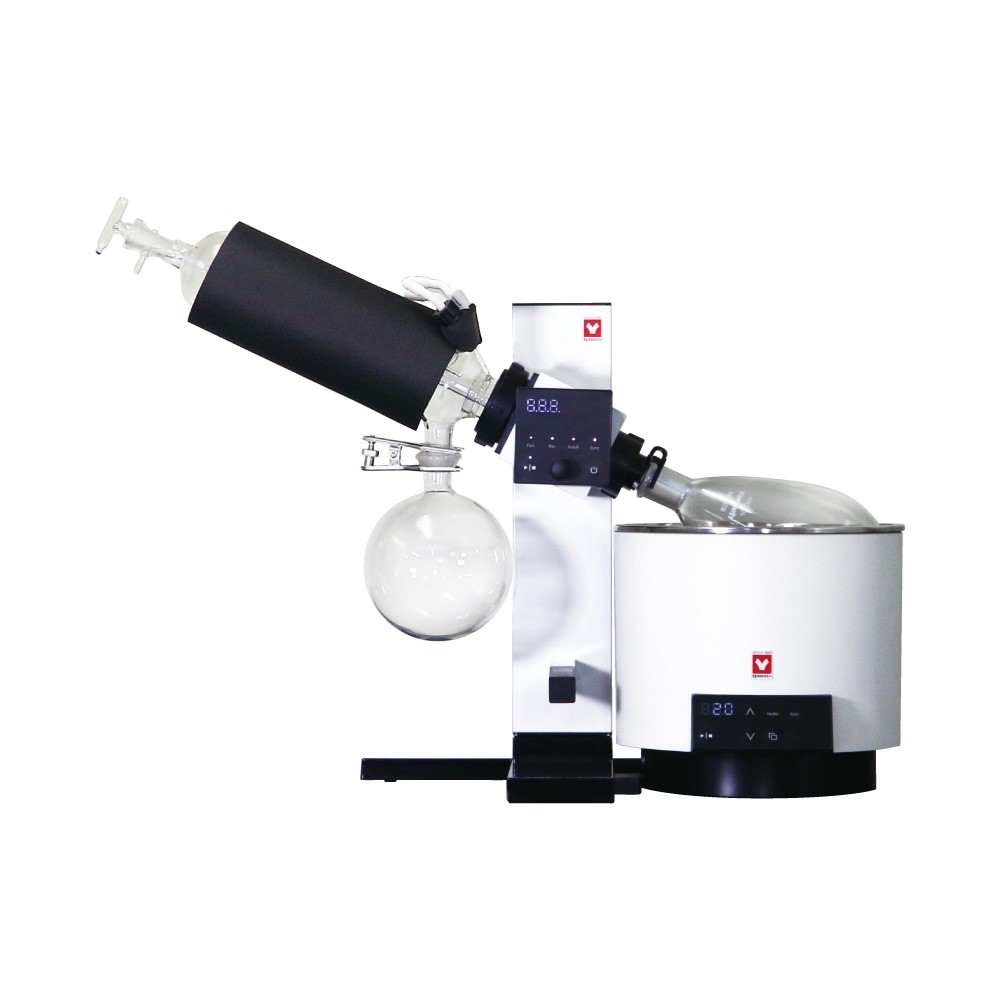

Rotary evaporator (RE202)
Description
Easy height adjustment with the jack handle.
Glass set and bath can be recombined left and right.
Intuitive operability, wide rotation speed range.
Improved durability of vacuum seal with liquid accumulation prevention structure.
AC adapter is stored neatly.
Two easy-to-care baths
Condenser insulation is included as standard equipment (common to glassware sets A and B)
A sample introduction tube cover prevents backflow of condensate (Glassware set B) *Patent pending
| Model | RE202 |
|---|---|
| Condenser Type | Type A (diagonal) / Type B (vertical) |
| Rotation number control range | 5 to 315rpm encoder type digital setting and display |
| Motor | DC brushless motor |
| External dimensions（W×D×H mm） | 529×324×534mm |
| Remarks(dimensions) | RE202 + glassware set (A) *Jack maximum position : H734mm |
| Power Source | AC100V 1A |
| Weight | 9kg |
| Remarks(weight) | (Rotary evaporator body : Approx. 7 kg + Glassware set : Approx. 2kg) |
