Basic with motorized lift and digital setting
Features of Rotary evaporator, Glass “A”, Oil Bath (RE301A-O)

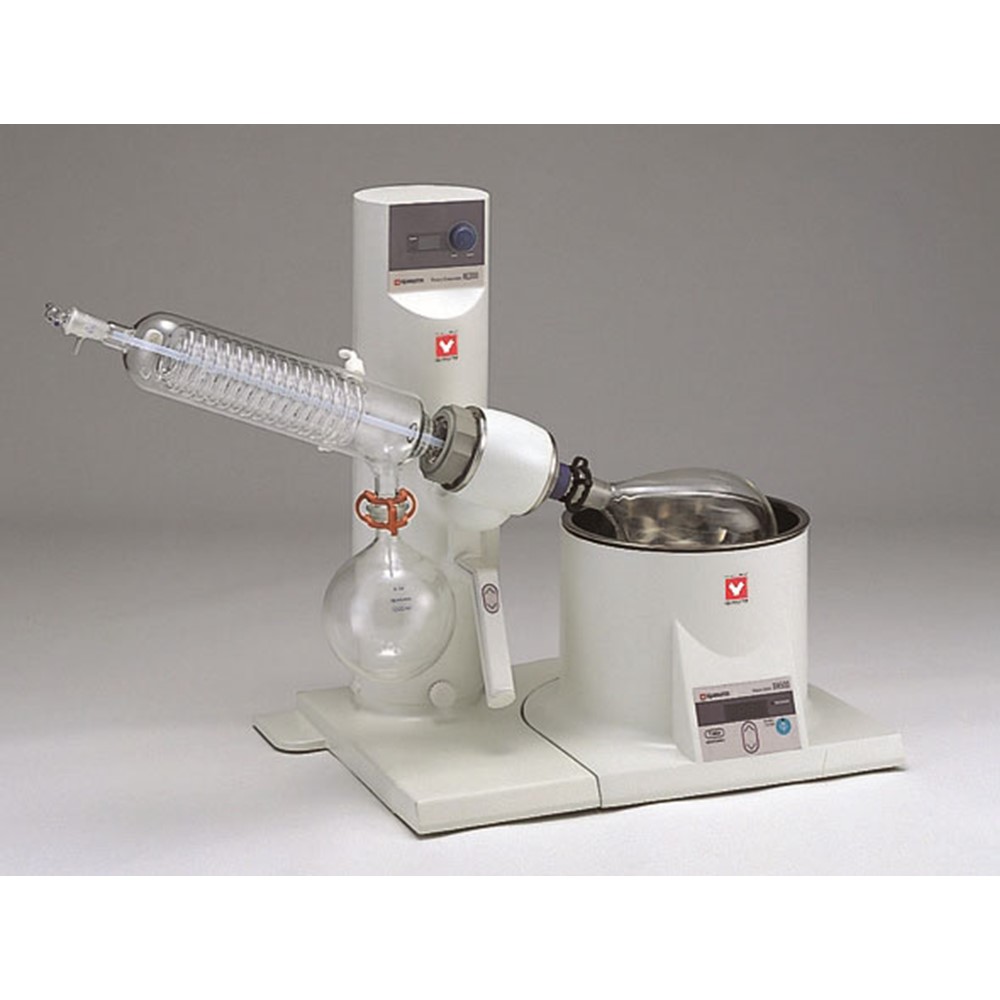

Rotary evaporator, Glass “A”, Oil Bath (RE301A-O)
Description
Features
One touch electric lift for easy up and down movement.
Features
The evaporator’s motor speed (rpm) is digitally set and displayed.
Features
Unique durable vacuum seal suitable up to 2L flasks.
Features
Stable rotation at low and high speeds.
Features
Equipped with lift up switch in case of power outage.
Features
Removable bath for easy cleaning and water replacement, with the option for water or oil bath.
Features
Compact design fits into any fume hood.
Features
Universal power supply: works with 100-240VAC.
| Model | RE301A-O |
|---|---|
| Motor | DC brushless motor |
| Rotation speed | 20~250 (rpm) |
| Lift stroke | 130ｍｍ |
| Rotational speed setting | Control knob (digital indication) |
| Safety function (main unit) | Manual-setting lower limit, motor overload |
| Lifting feature | Motorized lifting system |
| External dimensions（W×D×H mm） | 828×400×586mm |
| Remarks(dimensions) | With Glassware A (mm), (716 when raised) |
| Power Source | AC100 to 240V 1.5A |
| Weight | 14.1kg |
| Remarks(weight) | Excluding glassware and water/ oil bath. |
