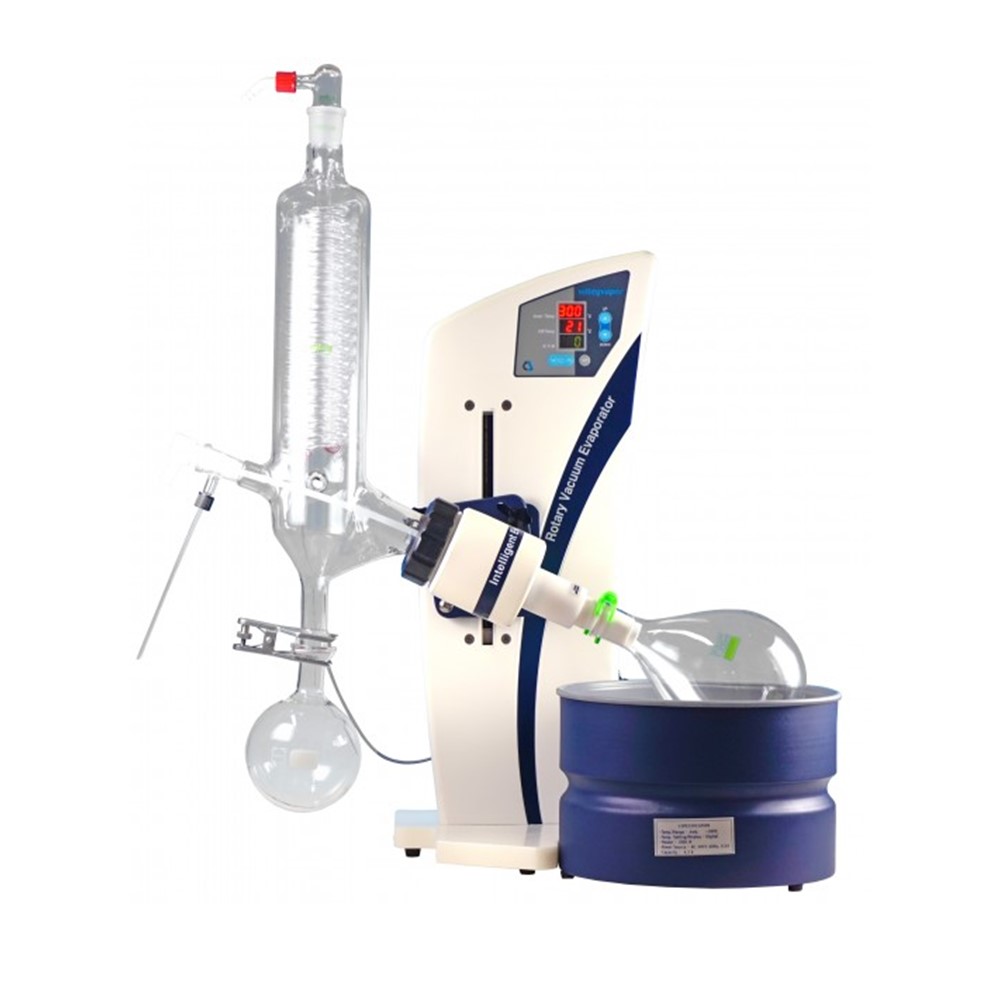

Rotary evaporator / evaporator witegvapor horizontal or diagonal 180°C 20-280rpm 30-5000ml

Suitable for:

  • all distillation processes under high vacuum pressure

Description

Technical features:

  • special glassware for fat-free use
  • Diagonal or vertical model
  • digital display
  • for flasks from 50 – 3,000 ml
  • Speed ​​range from 20 – 280 rpm
  • easy height adjustment by accurate motor with up/down buttons
  • double bonded PTFE and NBR nitrile vacuum seal
  • anti-wear, anti-aging, anti-chemical
  • adjustable tilt angle
  • including water bath made of stainless steel



Safety device:

  • insulated heater
  • Bathroom housing double-coated
  • detects too low water level and stops automatically



Steering:

  • integrated, digital control with LCD display



witegvapor rotary evaporator, water bath, 1,000 ml evaporating flask with ground joint sleeve NS 29/32, 500 ml round receiving flask with ground joint sleeve KS 35, clamps and connectors, condenser, power cable, operating instructions Recommended
vacuum pump: Rocker 400

height (inside)

120mm

diameter (inside)

Ø245mm

width (outside)

730mm

length (outside)

410mm

height (outside)

630mm

material

Bath: SUS304 stainless steel

suitable / suitable for

Flasks from 50 to 3000 ml

speed

20 – 280 rpm

temperature range

up to 180°C

packaging size

800x600x600mm
