PLC Electro Hydraulic Trainer Didactic Equipment Mechatronics Trainer Equipment

Description

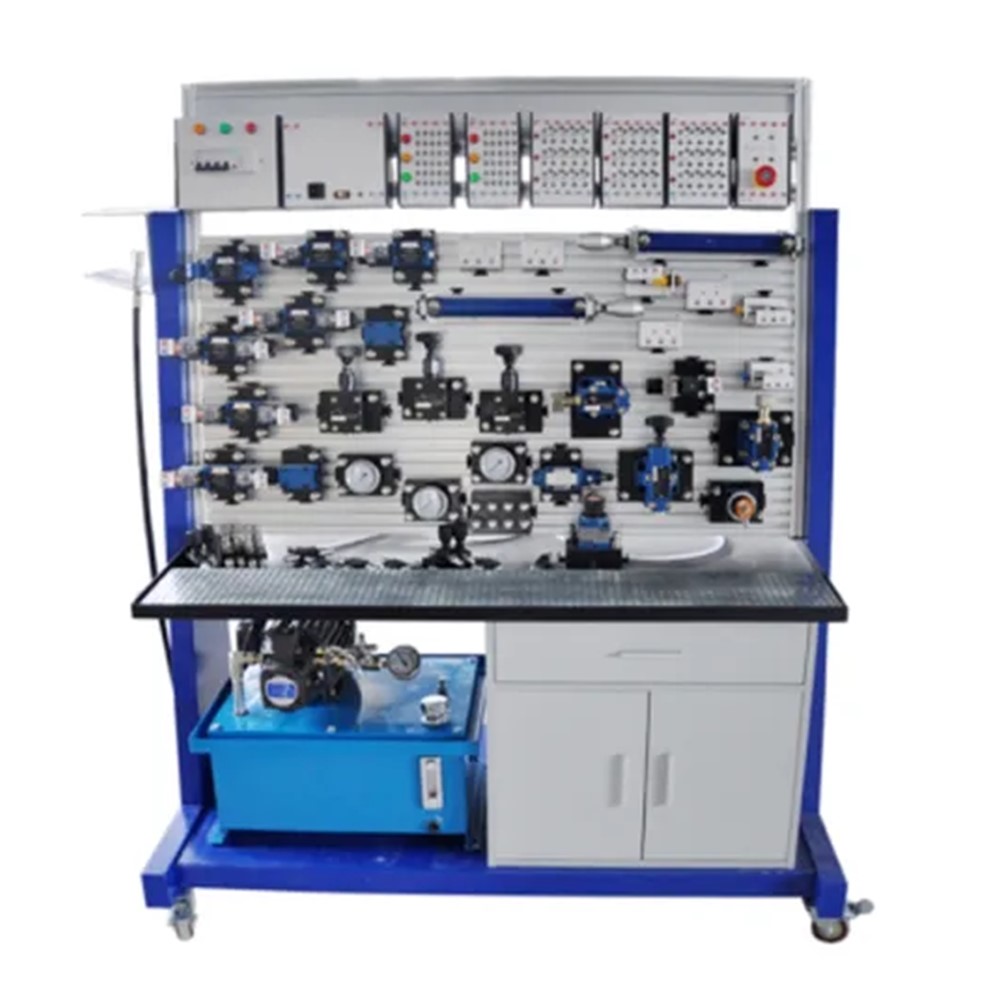

MR104M PLC Electro Hydraulic Trainer Didactic Equipment Mechatronics Trainer Equipment
 I. Introduction

I‘s suitable for schools, engineer training centers, factory training department etc.
Through this trainer, students can master hydraulic components structure, hydraulic circuit control theory, hydraulic circuit design, and hand on ability for hydraulic trainer.
This trainer is flexible and students can design their own hydraulic circuit.

II. Technical parameter
(1) DC power: input AC 380V,50Hz   Output: DC 24V/3A
(2)Wheel: 4, 2 lockable with brake, 2 not lockable
(3) Hydraulic station:
nominal volume: 35L
rated output hydraulic pressure is 16MPa,
pump type: gear pump
(4) Slot space:25mm
(5) Panel material: aluminum
(6) Workbench type: single side two work station for 2 students
(7) Hydraulic station with hydraulic oil
(8) Whole equipment dimension:1600mm（L）×750mm（W）×1700mm（H）
(9)Aluminum panel dimension: 1200（L）×750（W）
(10)Cabinet: 1

III. Experiment that can be finished
1. Direction control circuit
(1)Hand operated direction valve direction change circuit
(2)Solenoid directional valve direction change valve
2. Pressure control circuit
（1）Single grade pressure adjust circuit
（2）Secondary pressure adjust
（3）Single grade pressure decrease circuit
（4）Secondary reduce pressure circuit
（5）Use “M” direction change valve
