Description
A fluorescence microplate reader accessory can be added to an Edinburgh Instruments Photoluminescence spectrometer for automated high-throughput measurements of spectra, phosphorescence lifetimes and fluorescence lifetimes with photon-counting sensitivity.
Two options are offered: the PR2 Plate Reader accessory for the FLS1000 Photoluminescence Spectrometer and the SC-41 Plate Reader Module for the FS5 Spectrofluorometer. Both plate readers can utilise the spectrometer’s multiple sources and detectors, as well as its monochromator to fine-tune the wavelength and bandwidth.
If the instrument is configured for time-resolved photoluminescence, these measurements are automatically enabled in the plate reader. This, together with world-leading photon counting electronics, makes the PR2 and SC-41 stand out from traditional microplate readers in terms of flexibility and performance.
Plate Reader Operating Principle

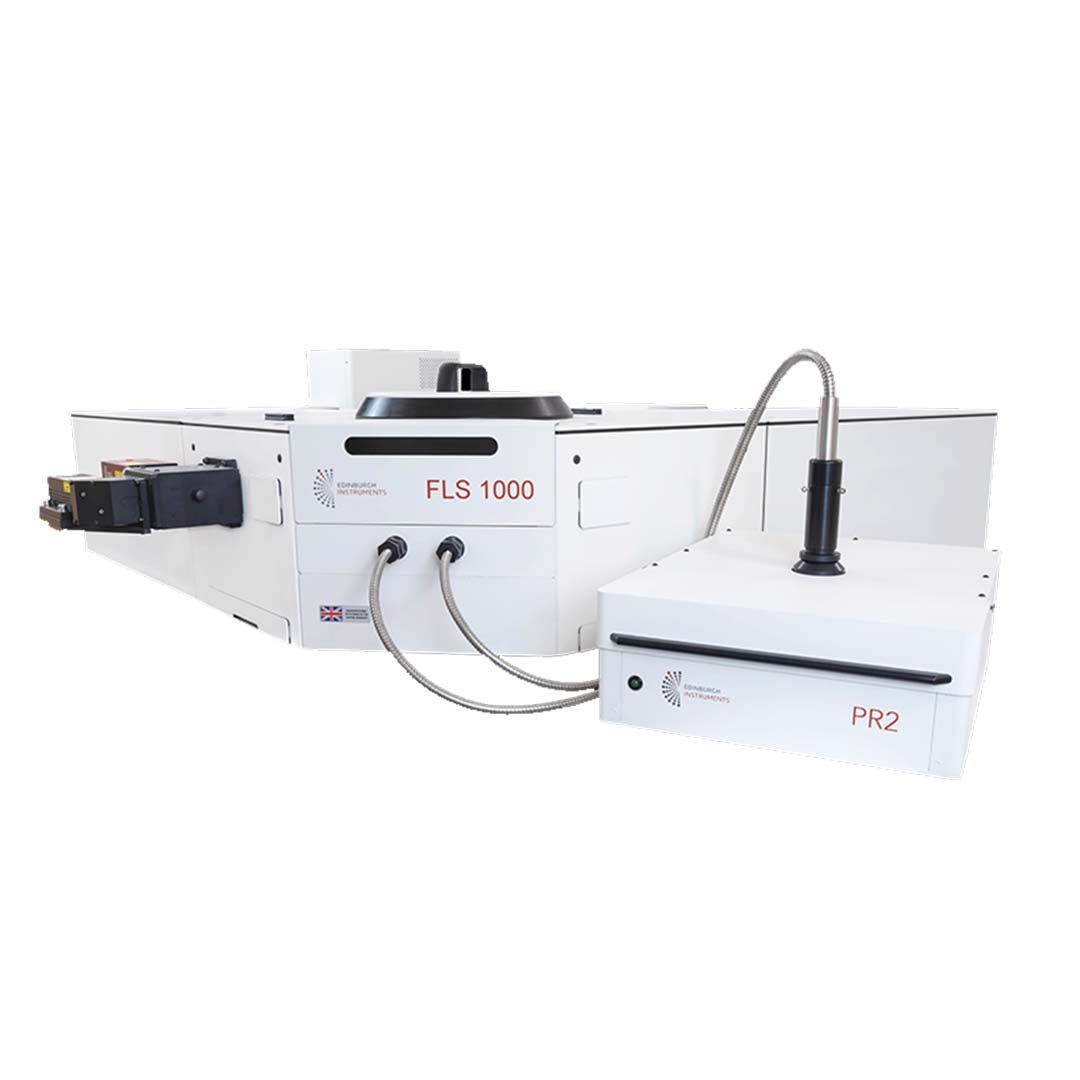

The plate readers are connected to the spectrometer excitation and emission light paths via fibres. The Fluoracle® software allows choosing the source/detector and the type of measurement, spectral or time-resolved.
The user can create and store custom microplate designs in the software. Measurement wells are selected in the plate layout before taking data. Up to 384 wells can be acquired in one
https://www.edinst.com/wp-content/uploads/2023/07/set-up-for-96-well-plate.png
Microplate reader accessories for Edinburgh Instruments spectrometers
- High throughput – fast, automated measurements of microplates with photon-counting sensitivity
- Plug & Play – easily exchanged with other sample holders in the FLS1000 Photoluminescence Spectrometer or FS5 Spectrofluorometer
- Fluorescence spectra – acquire spectra with high resolution enabled by the FLS1000 or FS5 monochromators
- Time-resolved photoluminescence – photon-counting fluorescence (sub-ns) and phosphorescence lifetimes
- Up to 384 wells – Users can customise plate layouts with up to 384 wells
- Software control – Controlled from the Fluoracle® instrument software, no additional packages needed
