The plasma of this model utilize normal air as the reaction gas
Features of Plasma Modifier (Barrel Chamber) (PM100)

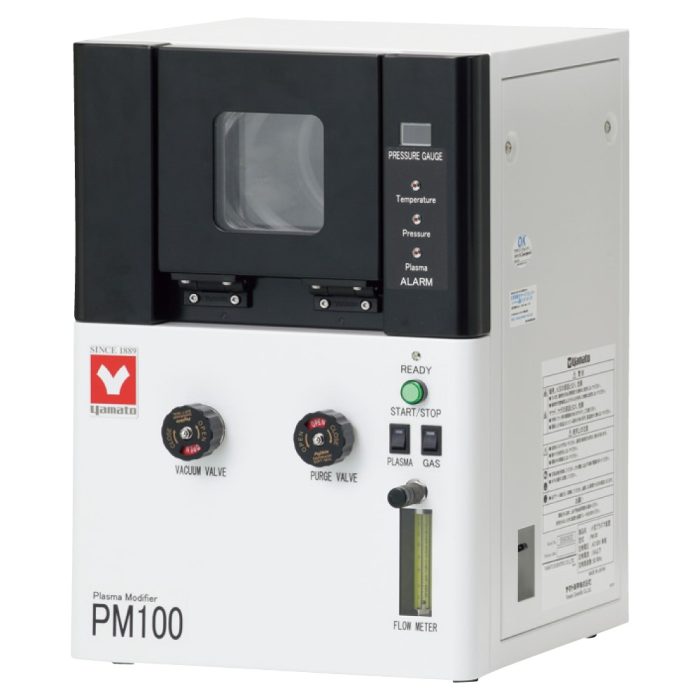

Plasma Modifier (Barrel Chamber) (PM100)
Description
- Low Frequency Plasma Device
- Barrel type and isotropic, plasma is generated throughout the chamber.
- Feature
- Easy operation, Simple utility preparation
- Feature
- No noise, vibration and harmful gases
- Feature
- Suitable for biochemical systems.
- Feature
- Uses oxygen as reaction gas.
| Model | PM100 |
|---|---|
| Plasma source | Low frequency high voltage power supply |
| Gas flow meter | For Oxygen: Flow volume 30～300mL/min |
| External Dimensions | 310W × 300D × 448H mm (without projection) |
| Vacuum Pump Connection Port | Vacuum hose φ15mmOD with joint (30L/min exhaust volume vacuum pump is recommended) |
| Gas Connection Port | φ6.35mmOD with piping joint |
| Internal dimensions（φ×D mm） | φ100×160mm |
| External dimensions（W×D×H mm） | 310×300×448mm |
| Power Source | AC115V/AC220V Single phase with step-down transformer |
| Weight | 16kg |
| Standard accessories | Specimen stand x 1 pc |
