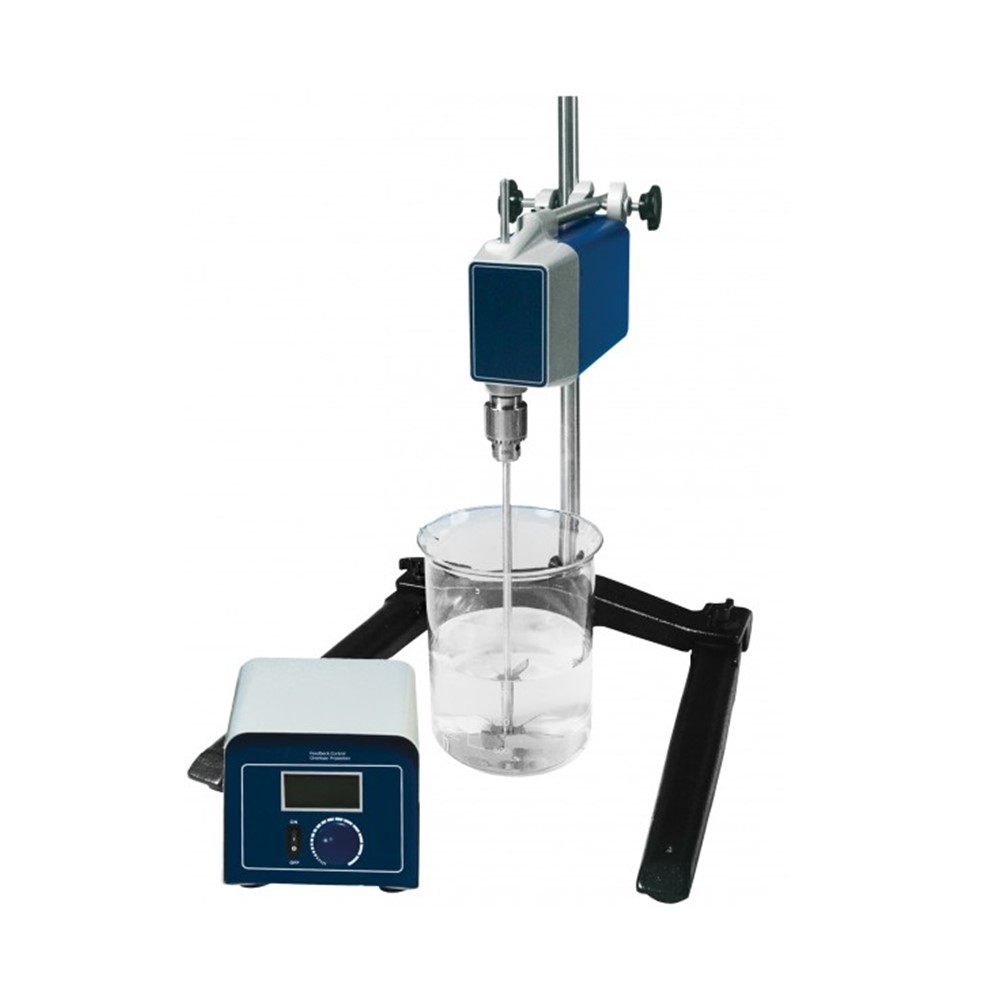

Overhead stirrer HT-T, high-torque, 50-1000 rpm, 60,0000/90,000 mPas, digital, external control

Suitable for:

  • all mixing processes in the laboratory
  • specialized in slightly aqueous solutions up to liquids with high viscosity
  • suitable for applications where a remote control is required
Category:

Description

Technical features:

  • maximum 40 / 60 liters
  • 50 – 1,000 rpm
  • maximum viscosity 60,000 / 90,000 mPas
  • Worm gear motors (ratio 3.5:1)
  • digital LCD display on the remote control
  • smooth start-up and changing the stirring speed during operation
  • Memory function for timer and speed
  • Height of stirrer is adjustable
  • chromed stainless steel chuck
  • CE certificate and traceability through serial numbers



Safety device:

  • Timer 99 hours 59 minutes with signal at the end of the timer
  • error status
  • lockdown mode
  • Overload & Overheat Protection
  • LED power indicator



Steering:

  • Jog shuttle remote control with control button



Unit: High Torque Overhead Mixer HT-T, Power Cord, Operating Instructions
Set: High Torque Overhead Mixer HT-T, Mixer PL020 4 blades Ø90mm, Clamp CL200, Stand with Plate HT-50T: ST120 30x40cm, HT-120T: ST200 39x up to 75cm , power cord, instruction manual

features



  • Strong DC motor for various uses in the field of stirring
  • Worm gear motor ensures strong torque at all recommended viscosities
  • digital feedback control
  • uniform and constant stirring speed
  • Chrome plated stainless steel chucks prevent corrosion
  • Anti-shake system – the stirring rod is fixed at two points in the housing and chuck
  • height-adjustable stirrer position
  • Motor overload and overheating protection for maximum safety and a long service life
  • available as a set with stirrer, stand and clamps
  • many different stirrers and stands available
  • Stirrer is fixed at two points inside the housing to ensure smooth operation without shaking





Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.

execution

high torque

width (outside)

155mm

length (outside)

180mm

height (outside)

110mm

material

ABS & Aluminum

suitable / suitable for

all mixing processes in the laboratory, specializing in slightly aqueous solutions up to liquids with high viscosity, suitable for applications where remote control is required

controllers

Digital, External

torque

180 Ncm at the chuck

humidity range

80% RH

speed

50 – 1,000 rpm

capacity

Max 40L

stirrer diameter

Shank Ø10mm or less

temperature range

Ambient temperature +0°C – 40°C

packaging size

580x340xh230mm

Viscosity (mPas)

Max. 60,000 mPas
