Suitable for:
- all mixing processes in the laboratory
- specialized in slightly aqueous solutions up to liquids with high viscosity

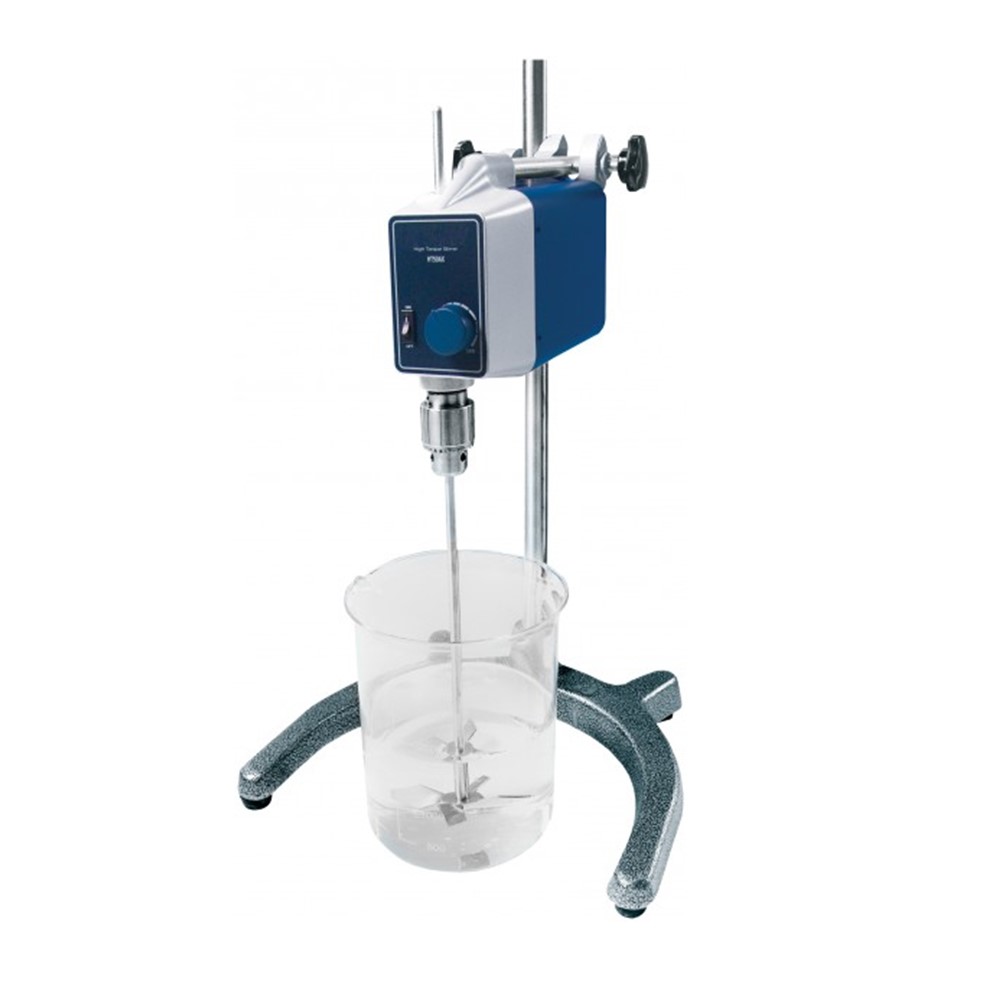

Overhead stirrer HT-AX, high-torque, 50-1000 rpm, 60,000/90,000 mPas, analogue, integrated control
Description
Technical features:
- maximum 40 / 60 liters
- 50 – 1,000 rpm
- maximum viscosity 60,000 / 90,000 mPas
- Worm gear motors (ratio 3.5:1)
- smooth start-up and changing the stirring speed during operation
- Height of stirrer is adjustable
- chromed stainless steel chuck
- CE certificate and traceability through serial numbers
Safety device:
- overheat protection
- overload protection
- LED power indicator
Steering:
- Analog phase control with adjustment knob
Unit: High-torque overhead stirrer HT-AX, power cable, instruction manual
Set: High-torque overhead stirrer HT-AX, stirrer PL020 4 blades Ø90 mm, clamp CL200, tripod with plate KA1177 34×29 cm, power cable, instruction manual
features
- Strong DC motor for various uses in the field of stirring
- Worm gear motor ensures strong torque at all recommended viscosities
- digital feedback control
- uniform and constant stirring speed
- Chrome plated stainless steel chucks prevent corrosion
- Anti-shake system – the stirring rod is fixed at two points in the housing and chuck
- height-adjustable stirrer position
- Motor overload and overheating protection for maximum safety and a long service life
- available as a set with stirrer, stand and clamps
- many different stirrers and stands available
- Stirrer is fixed at two points inside the housing to ensure smooth operation without shaking
Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.
execution
high torque
width (outside)
90mm
length (outside)
180mm
height (outside)
130mm
material
ABS & Aluminum
suitable / suitable for
all mixing processes in the laboratory, specializing in slightly aqueous solutions up to liquids with high viscosity
controllers
Analogue, integrated
torque
180 Ncm at the chuck
humidity range
80% RH
speed
50 – 1,000 rpm
capacity
Max 40L
stirrer diameter
Shank Ø10mm or less
temperature range
Ambient temperature +0°C – 40°C
packaging size
320x300xh180mm
Viscosity (mPas)
max. 60000 mPas
