Suitable for:
- all mixing processes in the laboratory
- specialized in low to medium viscosity materials
- suitable for applications where a remote control is required

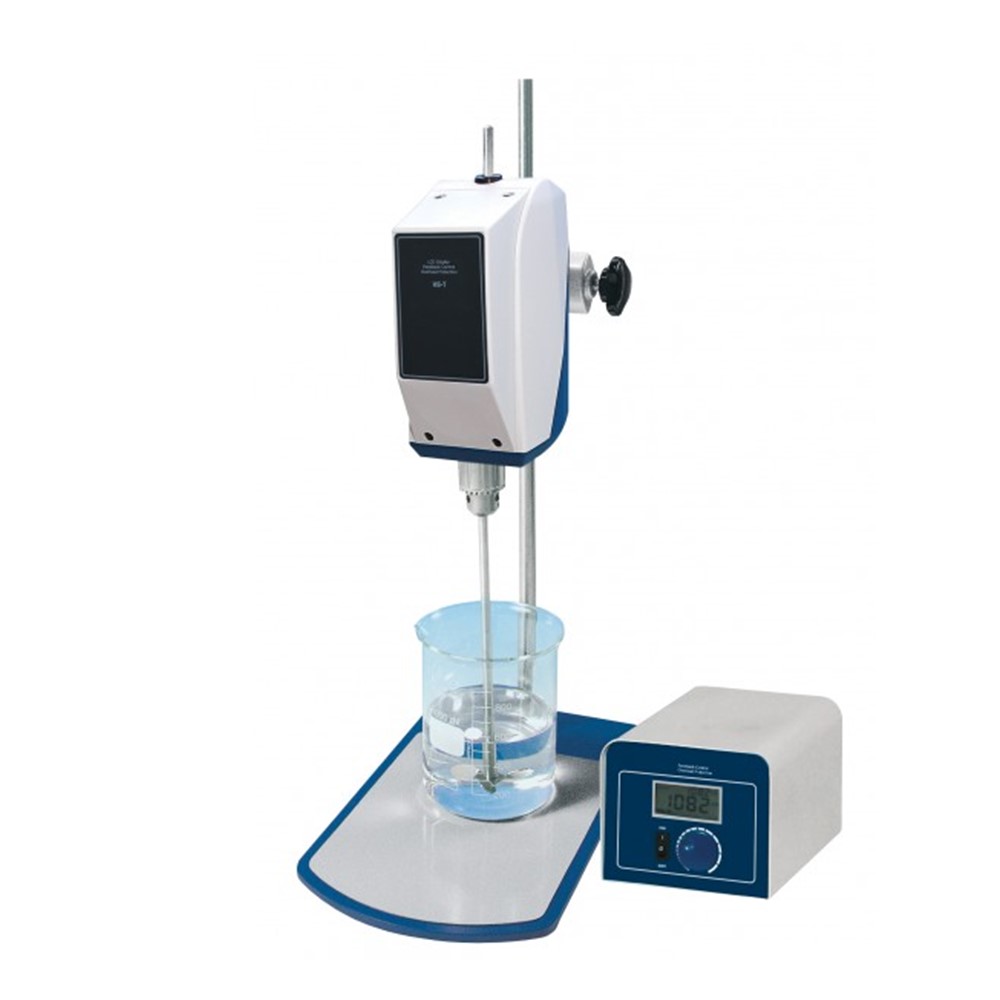

Overhead stirrer HS-T, high-speed, 200-3000 rpm, 5,000/10,000 mPas, digital, external control
Description
Technical features:
- maximum 10 / 20 liters
- 200 – 3,000 rpm
- maximum viscosity 5,000 / 10,000 mPas
- direct drive motor
- digital LCD display on the remote control
- smooth start-up and changing the stirring speed during operation
- Memory function for timer and speed
- Height of stirrer is adjustable
- chromed stainless steel chuck
- CE certificate and traceability through serial numbers
Safety device:
- Timer 99 hours 59 minutes with signal at the end of the timer
- error status
- lockdown mode
- overload protection
- overheat protection
- LED power indicator
Steering:
- Jog shuttle remote control with control button
Unit: High-speed overhead stirrer HS-T, Power cord, Instruction manual
Set: High-speed overhead stirrer HS-T, Stirrer HS-30T: PL010 3 blades Ø50mm, HS-100T: PL015 4 blades Ø70mm, Clamp CL200, Stand with plate HS-30T: ST110 20×35 cm, HS-100T: ST120 30×40 cm, power cord, instruction manual
features
- Strong DC motor for various uses in the field of stirring
- direct drive motor ensures high speed at all recommended viscosities
- digital feedback control
- uniform and constant stirring speed
- Chrome plated stainless steel chucks prevent corrosion
- Anti-shake system – the stirring rod is fixed at two points in the housing and chuck
- height-adjustable stirrer position
- Motor overload and overheating protection for maximum safety and a long service life
- available as a set with stirrer, stand and clamps
- many different stirrers and stands available
- Stirrer is fixed at two points inside the housing to ensure smooth operation without shaking
Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.
execution
high speed
width (outside)
90mm
length (outside)
100mm
height (outside)
180mm
material
ABS & Aluminum
suitable / suitable for
all mixing operations in the laboratory, specializing in low to medium viscosity materials, suitable for applications where remote control is required
controllers
Digital, External
torque
70 Ncm at the chuck
humidity range
80% RH
speed
200 – 3,000 rpm
capacity
Max 10L
stirrer diameter
Shank Ø8mm or less
temperature range
Ambient temperature +0°C – 40°C
packaging size
580x340xh230mm
Viscosity (mPas)
Max. 5,000 mPas
