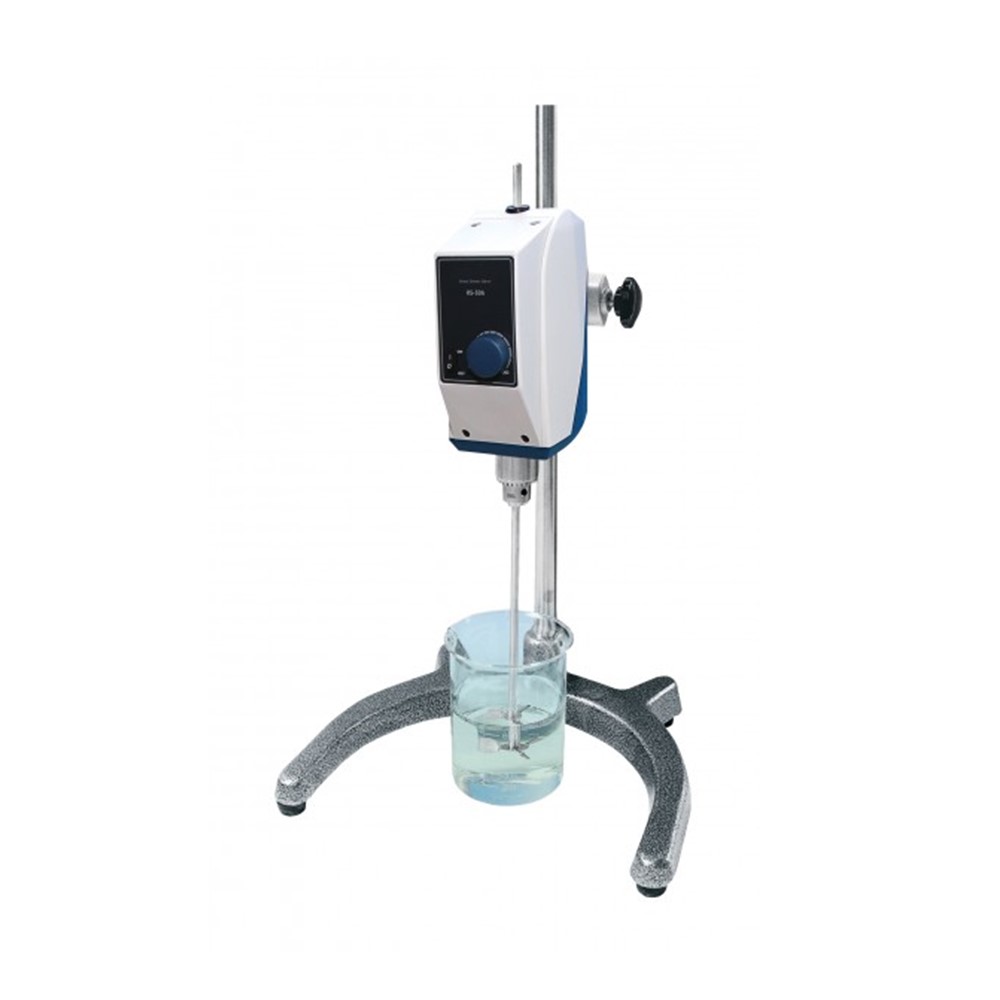

Overhead stirrer HS-A High-Speed ​​200-3000 rpm 5000/10000 mPas analogue integrated control

Suitable for:

  • all mixing processes in the laboratory
  • specialized in low to medium viscosity materials
Category:

Description

Technical features:

  • maximum 10 / 20 liters
  • 200 – 3,000 rpm
  • maximum viscosity 5,000 / 10,000 mPas
  • direct drive motor
  • smooth start-up and changing the stirring speed during operation
  • Height of stirrer is adjustable
  • chromed stainless steel chuck
  • CE certificate and traceability through serial numbers



Safety device:

  • overheat protection



Steering:

  • Analog phase control with adjustment knob



Unit: High-speed overhead stirrer HS-T, Power cord, Instruction manual
Set: High-speed overhead stirrer HS-T, Stirrer HS-30T: PL010 3 blades Ø50mm, HS-100T: PL015 4 blades Ø70mm, Clamp CL200, Stand with plate HS-30T: ST110 20×35 cm, HS-100T: ST120 30×40 cm, power cord, instruction manual

features



  • Strong DC motor for various uses in the field of stirring
  • direct drive motor ensures high speed at all recommended viscosities
  • digital feedback control
  • uniform and constant stirring speed
  • Chrome plated stainless steel chucks prevent corrosion
  • Anti-shake system – the stirring rod is fixed at two points in the housing and chuck
  • height-adjustable stirrer position
  • Motor overload and overheating protection for maximum safety and a long service life
  • available as a set with stirrer, stand and clamps
  • many different stirrers and stands available
  • Stirrer is fixed at two points inside the housing to ensure smooth operation without shaking





Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.

execution

high speed

width (outside)

90mm

length (outside)

145mm

height (outside)

180mm

material

ABS & Aluminum

suitable / suitable for

all mixing processes in the laboratory, specializing in low to medium-viscosity materials

controllers

Analogue, integrated

torque

70 Ncm at the chuck

humidity range

80% RH

speed

200 – 3,000 rpm

capacity

Max 10L

stirrer diameter

Shank Ø8mm or less

temperature range

Ambient temperature +0°C – 40°C

packaging size

320x300xh180mm

Viscosity (mPas)

Max. 5,000 mPas
