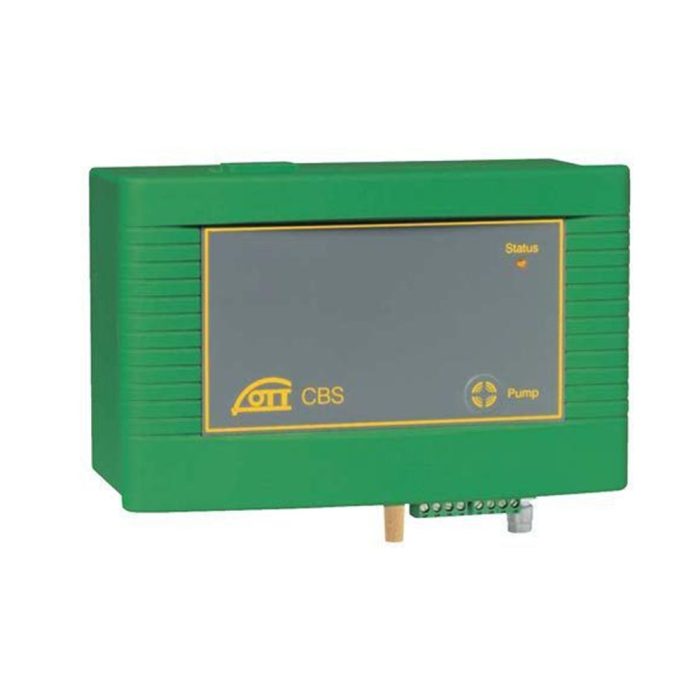

OTT CBS Compact Bubbler Sensor

The OTT CBS Compact Bubbler Sensor is an accurate, compact, and easy-to-use bubbler sensor for surface water level monitoring.

Features

  • Meets and exceeds USGS guidelines for water level accuracy, and will not drift over time
  • 5 year expected life based on 1 minute intervals – no pump maintenance or lubrication required
  • Easy integration with NexSens data logging & telemetry products
List Price

Description

Overview
The OTT CBS Compact Bubbler Sensor with EPS 50 Bubble Chamber accurately measures surface water level for new or existing stream gauges. The instrument’s compact design and low power consumption make it a great solution for solar charged applications. The sensor will not drift over time and does not require desiccant, eliminating the need for periodic site visits. At a 1 minute sampling interval, the CBS has a 5-year expected life before routine maintenance or lubrication is required.

Intelligent Pumping
The sensor features an intelligent pumping strategy that compares the previous measurement to the actual pressure at the current measurement. This optimizes pumping time and provides extremely high accuracy that meets and exceeds USGS guidelines of +/-0.01 ft accuracy. All calibration data is stored on the pressure cell, so field replacement can easily be accomplished as needed.

IoT-Compatible
The CBS features a plug-and-play interface to NexSens iSIC data loggers via SDI-12 digital output. Data collection options include direct-connect, landline phone, cellular, radio, Ethernet, WI-FI, and satellite telemetry. Each iSIC data logger simultaneously supports 8 analog inputs & 4 digital inputs for multi-sensor data logging capability. NexSens iChart Software is a Windows-based program for interfacing both locally (direct-connect) and remotely (through telemetry) to an iSIC data logger or network of data loggers.

  • Measuring Range: 0-50 ft (0-15 m)
  • Accuracy (Standard): +/-0.02 ft from 0 to 50 ft
  • Accuracy (High Accuracy): +/-0.01 ft from 0 to 15 ft
  • Resolution: 0.003 ft / 0.014 psi
  • Units: ft, psi, m, bar
  • Measuring Interval: 1 min to 24 hr
  • Maximum Rate of Level Change: 3 ft/min
  • Output: SDI-12 or 4-20mA
  • Power Supply: 10-30 VDC
  • Power Consumption: 15 min interval – 25 mAh/day; 1 min interval – 320 mAh/day
  • Compatible Tubing: 1/8″, 2 mm or 4 mm ID
  • Temperature Range: -4 to 140 F (-20 to 60 C)
  • Dimensions: 6.5″ x 8.1″ x 4.6″ (L x W x H)
  • Weight: 3.3 lbs.
