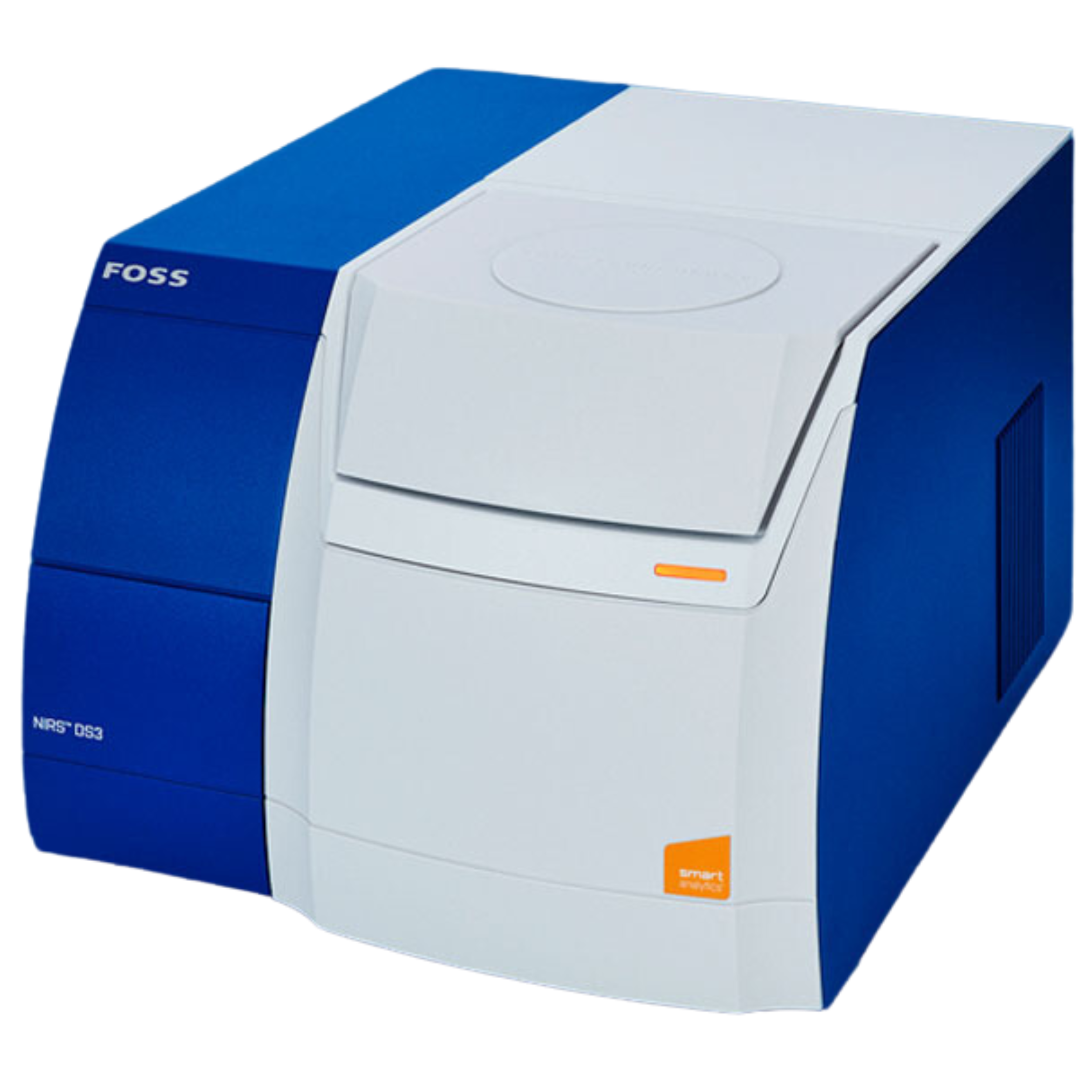

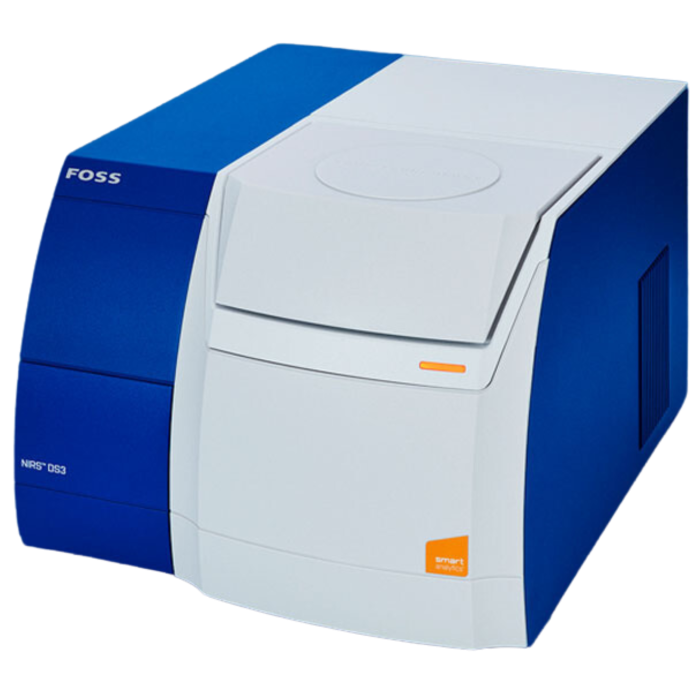

NIRS™ DS3 Dairy Analyser

The NIRS™ DS3 Dairy Analyser helps you to improve yield in your dairy powder and ice cream production. Designed for use in the laboratory or at the production line, the NIRS™ DS3 is a practical quality control tool ideal for routine production control and monitoring of final product quality.

Description

FTIR, NIR or FT-NIR – what’s the difference? How to choose the right technology for your production

FOSS experts explain the difference between Infrared analysis options for dairy producers.

Features

Sample Transfer picture

Automated sample transfer

Automated sample transfer reduces time spent on transferring data to and from management systems

Smart Start

The Smart Start function ensures that your NIRS DS3 is ready to measure without having to wait for diagnostics. Just start the shift and start measuring.
Manager

FossManager™

FossManager™ software allows instruments to be connected in a network making it easier, quicker and more reliable to manage individual or multiple instruments from a desktop located anywhere.
Calibrations

Ready-to-use calibrations or tools to develop your own

FOSS global ANN calibrations are built on thousands of samples from a large variety of raw materials. Alternatively, develop your own calibrations with the easy to use FossCalibrator™ tool.
Versatile Dairy

Versatile performance

Advanced and versatile solution for testing a range of parameters on ground or liquid material with no or very limited sample preparation.
Products measured and product presentation
Feature                                                          Specification
Dimensions (WxDxH) 375 x 490 x 300 mm
Weight 27 kg
Degree of protection IP 65
Measurement mode Reflectance or transflectance (for liquids)
Wavelength range 400 – 2500 nm
Detector Silicon (400 – 1100 nm), Lead Sulphide, PbS (1100 – 2500 nm)
Optical bandwidth 8.75 +- 0.1 nm
Data resolution 0.5 nm
Number of data points 4200
Number of subsamples Default: 7 for small cup; 8 for large cup
Self test 12 minutes (variable)
Analysis time <1 minute for 32 scans (8 subsamples, 4 scans per subsample)
Network connections FossManagerTM
Installation requirements
Voltage supply 100-240 V AC*, frequency 50-60 Hz, Class 1, protective earth
Ambient temperature 5 – 40oC
Storage temperature -20 to 70oC
Ambient humidity <93% RH
Mechanical enviroment Stationary during use
EMS enviroment Laboratory use, industry requirements
 *Mains supply voltage fluctuations not exceeding ±10% of the rated voltage.
Optional services
Digital Services FossAssure™
Digital Solutions FossCare™, SmartCare™
