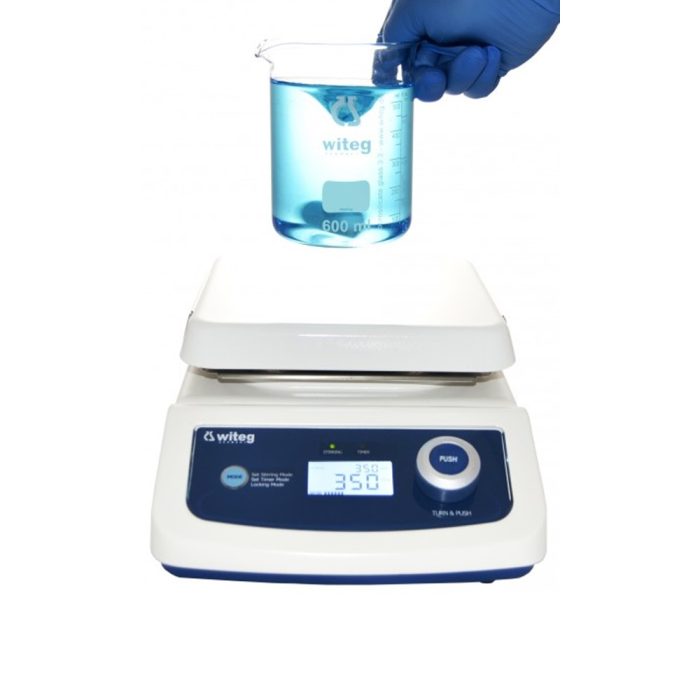

Magnetic stirrer MS-500D, digital, up to 1500 rpm, 200x200mm solid ceramic plate

Suitable for:

  • mixing chemicals, laboratory and pharmaceutical materials



Category:

Description

echnical features:

  • digital display with backlight
  • Shaded pole motor with 80-1,500 rpm
  • very strong magnet
  • high-quality, stable ceramic plate 200×200 cm
  • heat, chemical and acid resistant
  • Liquids do not get into the housing
  • powder-coated aluminum housing
  • Includes 30mm stirrer
  • CE certificate and traceability through serial numbers



Safety device:

  • Timer 99 hours 59 minutes with signal at the end of the timer
  • error status
  • lockdown mode
  • LED power indicator



Steering:

  • Jog dial control with knob for precise speed control



MS-500D magnetic stirrer, 30mm stir bar, power cord, instruction manual

features

Highest performance:

  • powerful: stirring capacity up to 20 l, speed up to 1,500 rpm
  • intelligent design protects against corrosion
  • strong but quiet motor, for a long service life



Maximum comfort

  • intuitive and easy-to-use controls
  • Illuminated, digital display for easy operation
  • Easy-to-clean all-ceramic plates



Protection: Two features protect the device from internal corrosion and thus prolong its lifespan: the closed housing and the intelligent liquid management system that directs accidental spills away from the interior of the device.

Motor: The brushless shaded-pole motor ensures powerful and precise stirring, minimized noise and a long service life. With the high-performance magnet, up to 20 l of water can be stirred without any problems.

Surface: The excellent all-ceramic plate is resistant to aggressive chemicals and easy to clean.

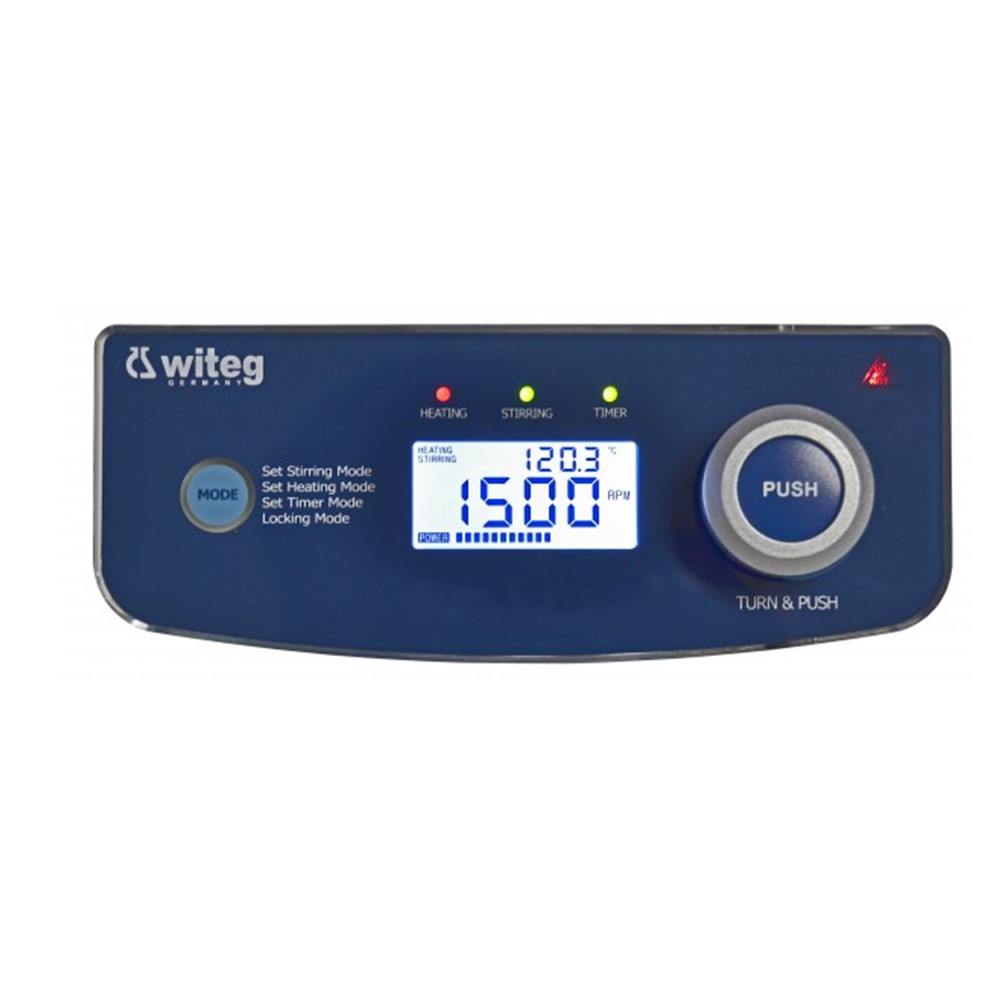

Controls: The new “turn + press” jog dial and control button are designed for intuitive, simple and direct operation.



Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.

width (outside)

205mm

length (outside)

345mm

height (outside)

135mm

suitable / suitable for

mixing chemicals, laboratory and pharmaceutical materials

controllers

Digital

humidity range

85% RH

housing material

powder-coated aluminum

speed

80 – 1,500 rpm, controller resolution 5 rpm

capacity

20L

plate size

200x200mm

plate material

solid ceramic plate

temperature range

+5 – 50°C

packaging size

400x280xh160mm

Accesories

30mm stirrer, usable up to 50mm
