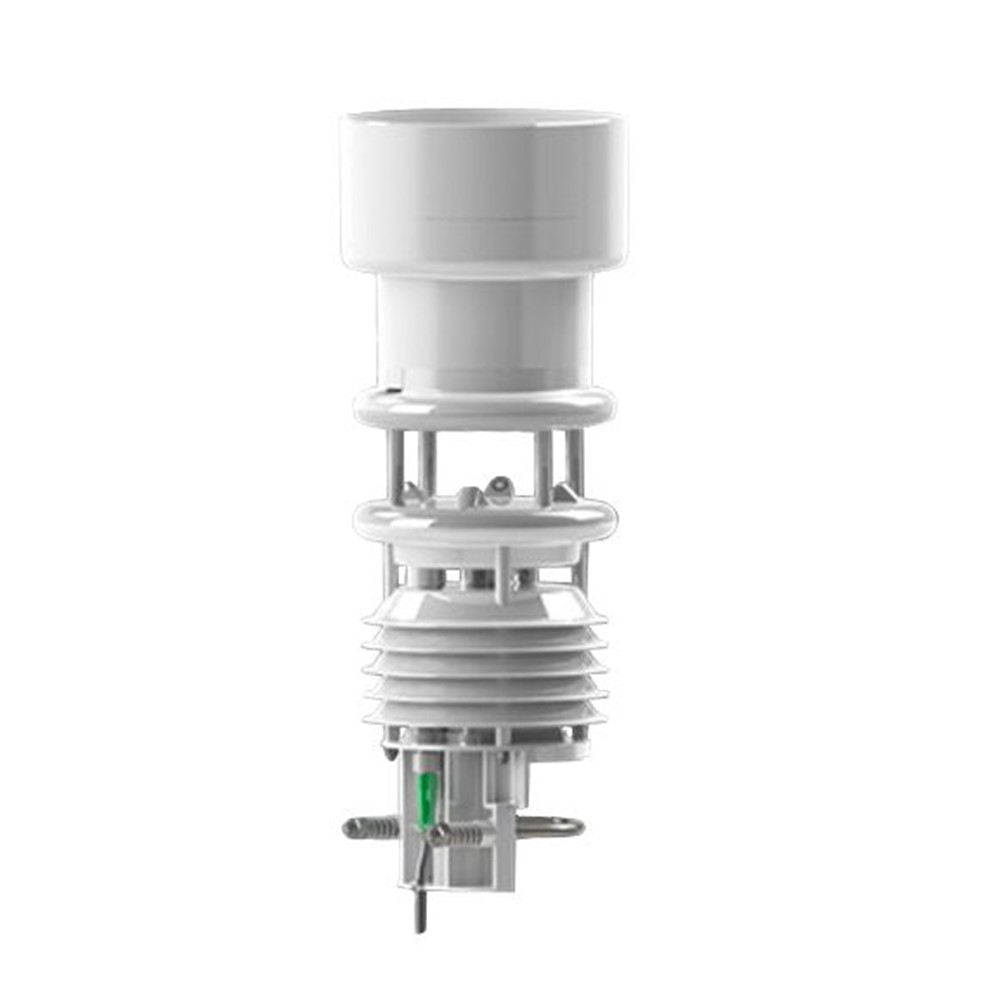

Lufft WS601 Multi-Parameter Weather Sensor

The Lufft WS601 Multi-Parameter Weather Sensor simultaneously measures air temperature, humidity, pressure, precipitation & wind in a compact platform with ventilated housing.
Features
  • Integrated tipping bucket allows a 0.2mm or a 0.5mm resolution of rainfall
  • Easily mounts to 2″ diameter pipe with integrated bracket mount & U-bolts
  • SDI-12 output for integration with NexSens and other data loggers
Category:

Description

Overview
The Lufft family of multi-parameter weather sensors offer a cost-effective, compact alternative for the acquisition of a variety of measurement parameters on land- and buoy-based weather stations. Depending on the model, each sensor will measure a different combination of weather parameters to meet a wide variety of applications.

Air Temperature & Humidity
Temperature is measured using a highly accurate NTC-resistor, while humidity is measured using a capacitive humidity sensor. Both sensors are located in a ventilated radiation shield to reduce the effects of solar radiation.

Pressure
Absolute air pressure is measured using a built-in MEMS sensor. The relative air pressure referenced to sea level is calculated using the barometric formula with the aid of the local altitude, which is user-configurable on the equipment.

Wind Speed & Direction
The wind sensor uses four ultrasound sensors which take cyclical measurements in all directions. The resulting wind speed and direction are calculated from the measured run-time sound differential.

Compass
The integrated electronic compass can be used to check the north-south adjustment of the sensor housing for wind direction measurement. It is also used to calculate the compass-corrected wind direction.

Precipitation
Precipitation is measured using an integrated tipping bucket rain gauge. The flexible tipping bucket can be configured for 0.2mm or 0.5mm rainfall resolution.

  • Air Temperature
  • Principle: NTC
  • Measuring Range: -50 to +60 C
  • Resolution: 0.1 C (-20 to +50 C); otherwise 0.2 C
  • Accuracy: +/-0.2 C (-20 to +50 C); otherwise +/-0.5 C
  • Units: C; F
  • Humidity
  • Principle: Capacitive
  • Measuring Range: 0 to 100% RH
  • Resolution: 0.1% RH
  • Accuracy: +/-2% RH
  • Units: % RH; g/m3; g/kg
  • Pressure
  • Principle: Capacitive
  • Measuring Range: 300 to 1200hPa
  • Resolution: 0.1hPa
  • Accuracy: +/-1.5hPa
  • Unit: hPa
  • Wind Speed
  • Principle: Ultrasonic
  • Measuring Range: 0 to 60m/s
  • Resolution: 0.1m/s
  • Accuracy: +/-0.3m/s or 3% (0 to 35m/s); +/-5% (>35m/s)
  • Response Threshold: 0.3m/s
  • Units: m/s; km/h; mph; kts
  • Wind Direction
  • Principle: Ultrasonic
  • Measuring Range: 0 to 359.9 degrees
  • Resolution: 0.1 degrees
  • Accuracy: +/-3 degrees
  • Response Threshold: 0.3m/s
  • Compass
  • Principle: Integrated Electronic Compass
  • Measuring Range: 0 to 359.9 degrees
  • Resolution: 1.0 degree
  • Precipitation
  • Principle: Tipping Bucket
  • Liquid Precipitation Resolution: 0.2mm/0.5mm
  • Precipitation Types: Rain, Snow
  • Accuracy: +/-2%
  • Technical Data
  • Interface: SDI-12, Modbus
  • Operating Temperature: -50 to +60 C
  • Operating Humidity: 0 to 100% RH
  • Included Cable Length: 10m
