Constant Low Temperature Incubator of Multi-function and Air Jacket
Features of Low Temperature Incubator (Programmable, Air Jacket) (ILE800)

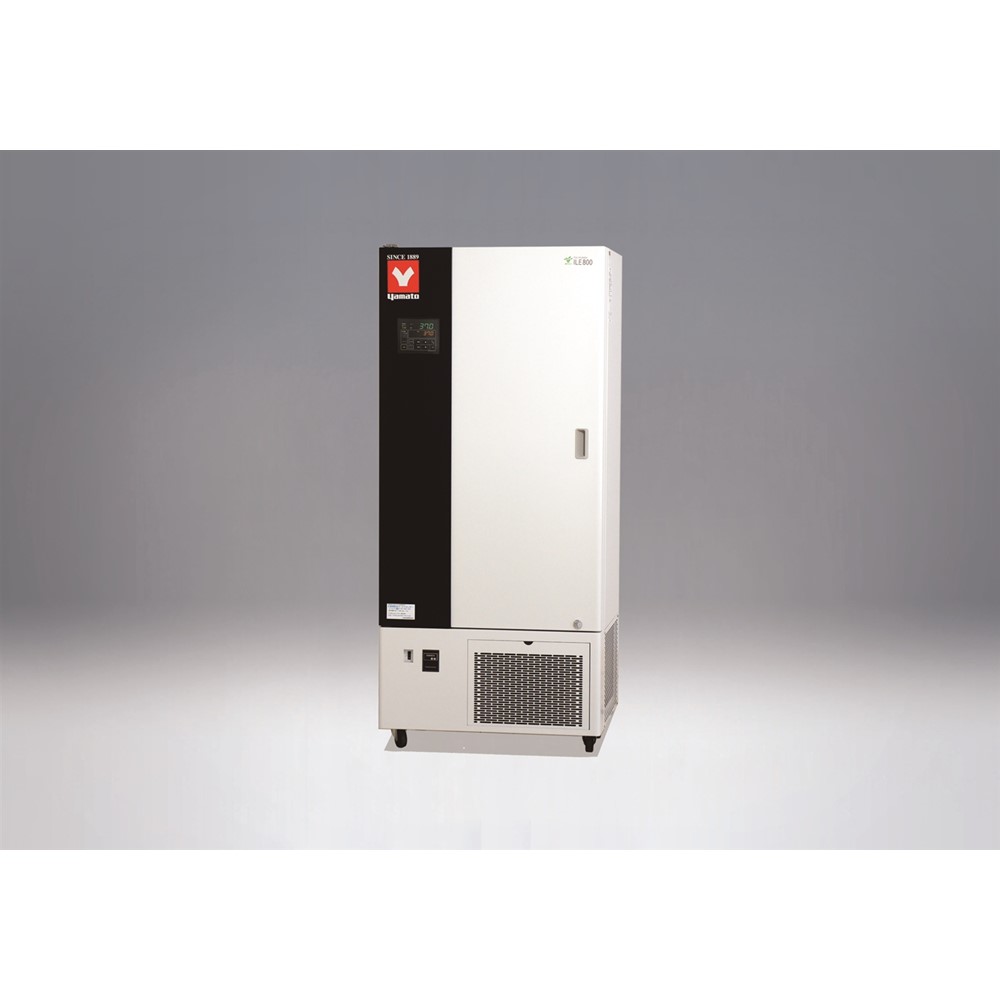

Low Temperature Incubator (Programmable, Air Jacket) (ILE800)
Description
Features
Input duplication or error is avoided, adopting an interactive key input system.
99 step programming is available. weight function guarantees the time of treatment.
Safety measures are enriched, including self diagnosis function.
Possible to bring a cable into the incubator.
| Model | ILE800 |
|---|---|
| Circulation method | Natural convection by air jacket |
| Operating temperature range | 0 to +60℃ |
| Temp. control accuracy | ±0.2℃ (when refrigerator is in the continuous operation) ±0.3℃ (when refrigerator is in the cycle operation) |
| Temp. distribution accuracy | ±1.0℃ (at 37℃ refrigerator is in the continuous operation) |
| Interior Material | Stainless steel SUS304 |
| Inner door | 5mm thick reinforced glass |
| Refrigerator / Refrigetrant | Inverter type / HFC-R410A |
| Defrosting mechanism | Hot gas bypass system Manual ON/OFF, Cycle operation |
| Cable hole | 50mm l.D. |
| Temp. controller | PID control by micro processor |
| Temp. setting method | Digital setting with key |
| Temp display method | Digital display green LED |
| Operation function | Fixed temperature operation, Auto-start/Auto-stop operation, Program operation:You can make patterns within the program memory capacity, 99 step (Repeat, Ramp operation, Quick auto-stop) |
| Temp. sensor | Pt100Ω(temperature controller)+K-thermocouple (EV control), K-thermocouple (overheat preventive device) |
| Safe Device | Self diagnosis functions (Automatic overheat prevention, Temperature sensor trouble, heater disconnection, Min relay malfunction, Refrigerator trouble, Communication trouble, Timer trouble, Triac short circuit), Circuit breaker, Alarm buzzer |
| Internal dimensions（W×D×H mm） | 600×530×1000mm |
| External dimensions（W×D×H mm） | 785×650×1765mm |
| Remarks(dimensions) | 300L |
| Power Source | AC115V/220V Single-phase with step down transformer |
| Weight | 150kg |
| Standard accessories | Stainless punching metal shelf 5pcs, Shelf brackets 10pcs, Key 2 pcs, Silicone sponge stopper 1 pc |
