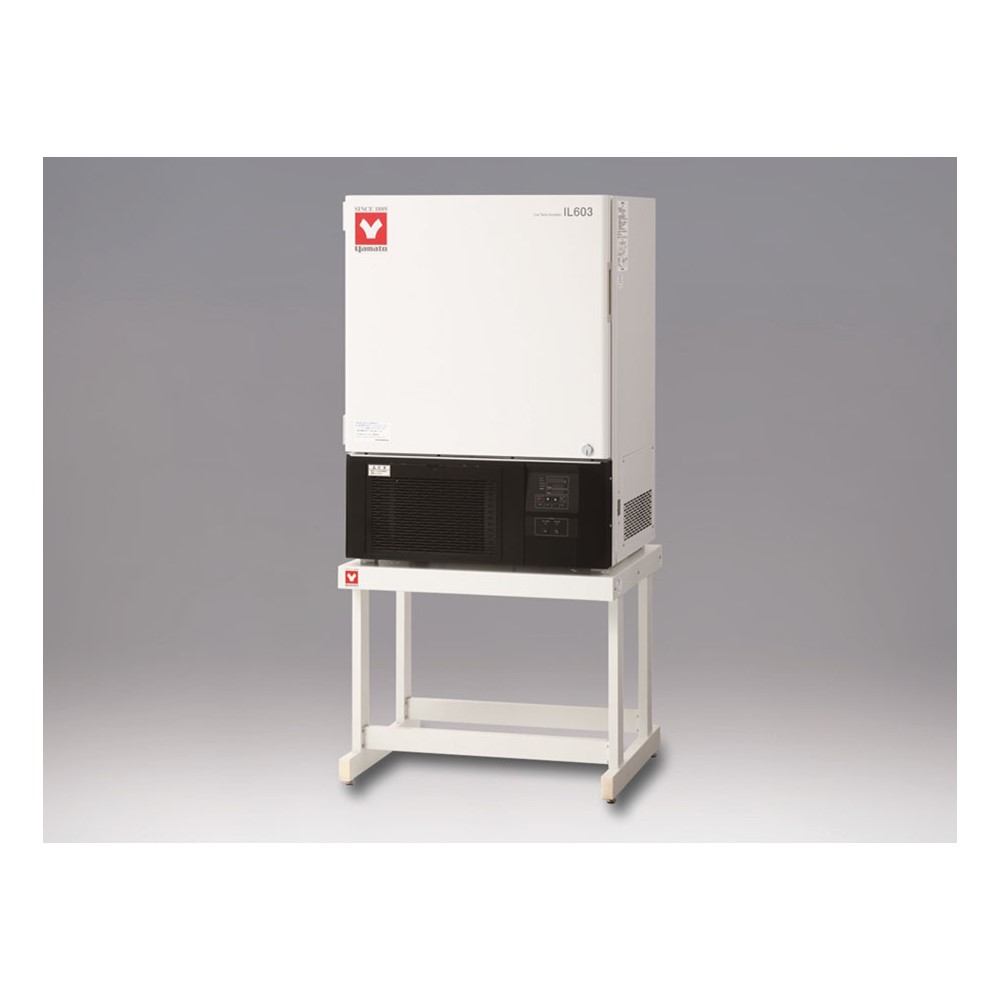

Constant Low Temperature Incubator of Multi-function and Air Jacket
Features of Low Temperature Incubator (Programmable, Air Jacket) (IL603)
Constant Low Temperature Incubator of Multi-function and Air Jacket
Features of Low Temperature Incubator (Programmable, Air Jacket) (IL603)
Feature
Air jacket and PID control realizes the highly precise temperature control and the uniformity of temperature distribution
Feature
Various functions such as Individual overheat protection, auto start, auto stop, defrost, RS485 communication port, temperature output terminal(4 to 20mA), Alarm output terminal(IL612C)
Feature
Equipped with individual overheat preventor, program function up to 99 steps, fixed temperature operation
Feature
Optional cable enables the remote operation control
Safety features
Self-diagnosis, refrigerator heat overload protector, refrigerator delay start protection, overheat protector, electric leakage breaker, key lock, etc.
Model | IL603 |
---|---|
System | Natural convection, Air jacket |
Operating Temperature Range | 0~50℃ |
Temperature Adjustment Accuracy | ±0.3℃(at 37℃ when refrigerator is in continuous operation), ±1.0℃(at 37℃ when refrigerator is in cycle operation) |
Temperature Distribution Accuracy | ±1.0℃(at 37℃ refrigerator is in continuous operation) |
Refrigerator | Air cooling enclosed type, 300W, Refrigerant : R134a |
Defrost Function | Manual / Cycle |
Sensor | Double sensor:Pt. resistance temperature detector, Pt100Ω(Temperature controller), K-thermocouple(Overheat prevention device) |
Cable Port | 50mm ID (Left side from the front) Silicone sponge stopper 1 pc provided |
Temperature Controller | VS3P PID control |
Operation | Fixed temp., Auto-start, Quick auto-stop, Auto-stop |
Safety Device | Self-diagnosis, Overcurrent ELB, Refrigerator overload relay, Refrigerator delay protection, overheat protector(IL612C), Individual overheat protector (IL812C) |
Shelf Loading Capacity | 15kg/shelf |
Shelf Support Step Number | 12 steps |
Shelf Support Pitch | 35mm |
Shelf / Support | Stainless steel punching metal 3 shelves / 6 supports |
Door Key | 2 pcs. |
Internal dimensions(W×D×H mm) | 600×530×500mm |
External dimensions(W×D×H mm) | 710×645×1008mm |
Remarks(dimensions) | 159L |
Power Source | AC115V/220V Single phase |
Weight | 105kg |
