Color lighting to make it easy to determine the stage of the washing process.
Features of Laboratory Washer (Process Monitorable) (AWD510)

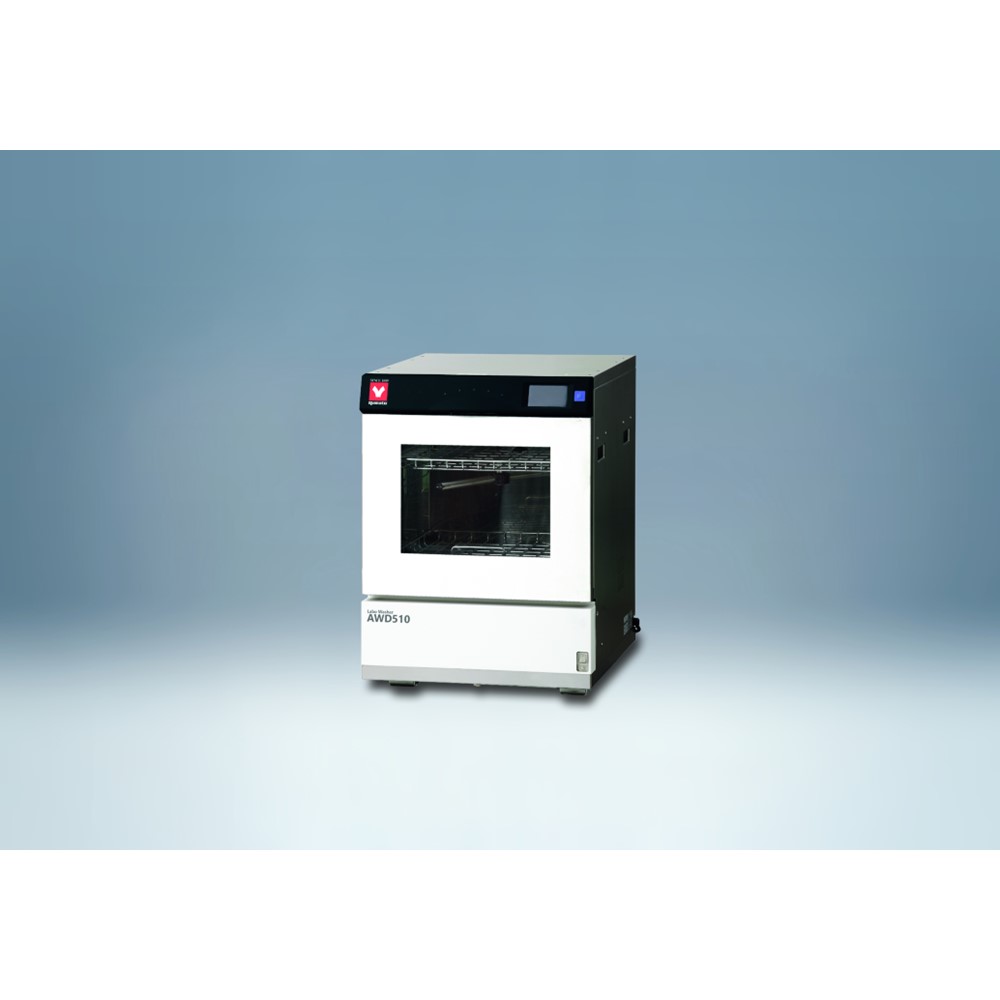

Laboratory Washer (Process Monitorable) (AWD510)
Description
Features
Large double glass window affording a good view of the inside.
Features
Powerful alkaline is set as standard liquid detergent.
Features
Effluent temperature controlled to stay at 60°C or below.
Features
Feed-water connection established between the rack and main body simply by closing the door.
| Model | AWD510 |
|---|---|
| Washing system | Upper / Middle / Lower-stage rotating jet nozzles |
| Washing process | Pre-washing, Washing, Rinsing, Rinsing with pure water (optional) |
| Water temp. | Set Off to Max. 80℃ (pre-washing / washing), Max. 93℃ (rinsing) |
| Hot-water supply | 2kW Pipe heater |
| Detergent supply | Automatic weighing and loading (liquid detergent) |
| Drain method | Hot water cooling and forced draining with pump |
| Water supply Tap water (Necessary) | Temp. 5 to 25℃ , Raw water feed pressure 0.1 to 0.5MPa, G3/4 (main unit), G1/2 (primary) |
| Water supply Hot water (Discretionally) | Temp. 5 to 60℃ , Raw water feed pressure 0.1 to 0.5MPa, G3/4 (main unit), G1/2 (primary) |
| Detergent | Dedicated detergent (optional) |
| Pure water connection (Discretionally ) | Raw water feed pressure 0.02 to 0.1MPa, Hose nipple I.D. 10.5mm |
| Exterior | Stainless steel plate （SUS304） |
| Interior | Stainless steel plate （SUS316） |
| Leg | Level adjuster |
| Display | 4.3-inch LC touch panel / LED lamp (process) / Interior lighting color by process |
| Safety Device | Over current/Electric leakage breaker, Overheat prevention, Door lock, Water leakage |
| Accessories | Raw water supply hose (for tap water and hot water), Drain hose, Lid for removing upper-stage rack, Stainless steel rack for detergent, Drain hose clamp, Overflow water hose, Detergent tube |
| Internal dimensions（W×D×H mm） | 500×480×480mm |
| External dimensions（W×D×H mm） | 580×600×845mm |
| Power Source | AC220V 13A Single phase with step-down transformer |
| Weight | 87kg |
| Remarks(weight) | 本体のみの重量（洗浄水・洗浄対象物の重量は含みません） |
