Ideal for washing large equipment and a large amount of instruments

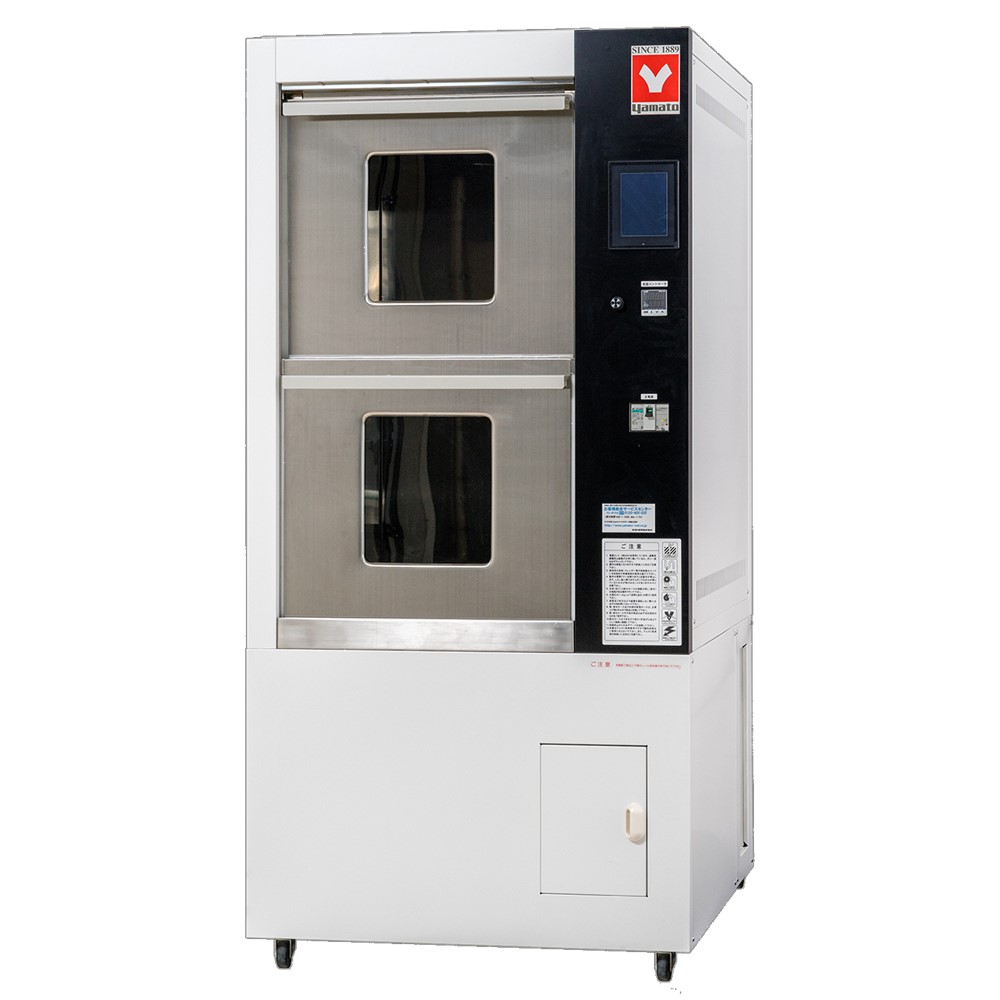

Features of Laboratory Washer (Fully-automatic, Large Capacity) (AW83Z)
Ideal for washing large equipment and a large amount of instruments
Features of Laboratory Washer (Fully-automatic, Large Capacity) (AW83Z)
Features
Two washing chambers
Features
Selectable three washing patterns
Features
Jet rack (option) can remove the dirt of containers more easily
Features
Fixing type rack and spinning type jet nozzle can avoid the brakeage of containers
Features
Available hot water washing by built-in heate
Features
Liquid detergent is automatically supplied from detergent container (powder detergent also available by adding powder in each time)
Model | AW83Z |
---|---|
Washing water temp. | Supplied temp. to 80℃ |
Accessories | Supply hose I.D.18mm, 2m×1pc, Drain hose (with coupler) 2m×1pc, Detergent (Amorphous phosphorus) 1kg, Measuring spoon (for 50ml) 1pc, Test tube rack support 1pc, Hose clamp 1pc |
Washing compartment | Two washing chambers |
Washing compartment | Pressure water jet from two directions (Top and bottom), Jet nozzle spinning |
Washing compartment | Upper : Jet nozzle rotation, Lower : Fixed type (jet rack) |
Washing pattern | Selectable three washing patterns *Final rinse is option |
Washing pattern | 1. Pre-washing → Washing → Rinse → Final rinse* |
Washing pattern | 2. Washing → Rinse → Final rinse* |
Washing pattern | 3. Rinse → Final rinse* |
Washing time | Pre-washing, Washing, Rinse: settable 1 to 99min |
Washing time | Rinse: settable up to 5 times by batch system |
Washing time | Final rinse (to connect with pure water supplying system): Rinse by pure water 50L, settable up to 5 times, start to wash after reaching to the set water level, Timer count starts after reaching to the setting temp. |
Supplying water temp. | Room temp. to 60℃ |
Washing water temp. | Water supply temp. to 80℃. Same water temp. for pre-washing and washing, no water heat-up for rinse and final rinse |
Liquid detergent supplying type | Automatic supply by pump (Adjustable supply amount) |
Liquid detergent tank capacity | 2L |
Required water amount | Approx. 28L for each pre-wash, wash and rinse |
Hot water supply system | Heater (Built-in: 6kW) heat-up or connection to primary hot water supply |
Container stand | Shelf board 2pcs. (Standard) |
Water supplying system | Solenoid valve Open/Close, water flow amount is fixed by flow switch |
Water drain system | Forced drain by pump |
Exterior | Chrome-free electrogalvanized steel sheet, baking finish |
Interior | Stainless steel |
Pump | Washing pump: 355W/560W Drain Pump: 45W |
Shelf board | 550×550mm, max. load 245N (25kg) |
Internal dimensions(W×D×H mm) | 600×630×1080mm |
External dimensions(W×D×H mm) | 860×770×1795mm |
Power Source | AC220V/AC380V Three phase with step-down transformer |
Weight | 220kg |
