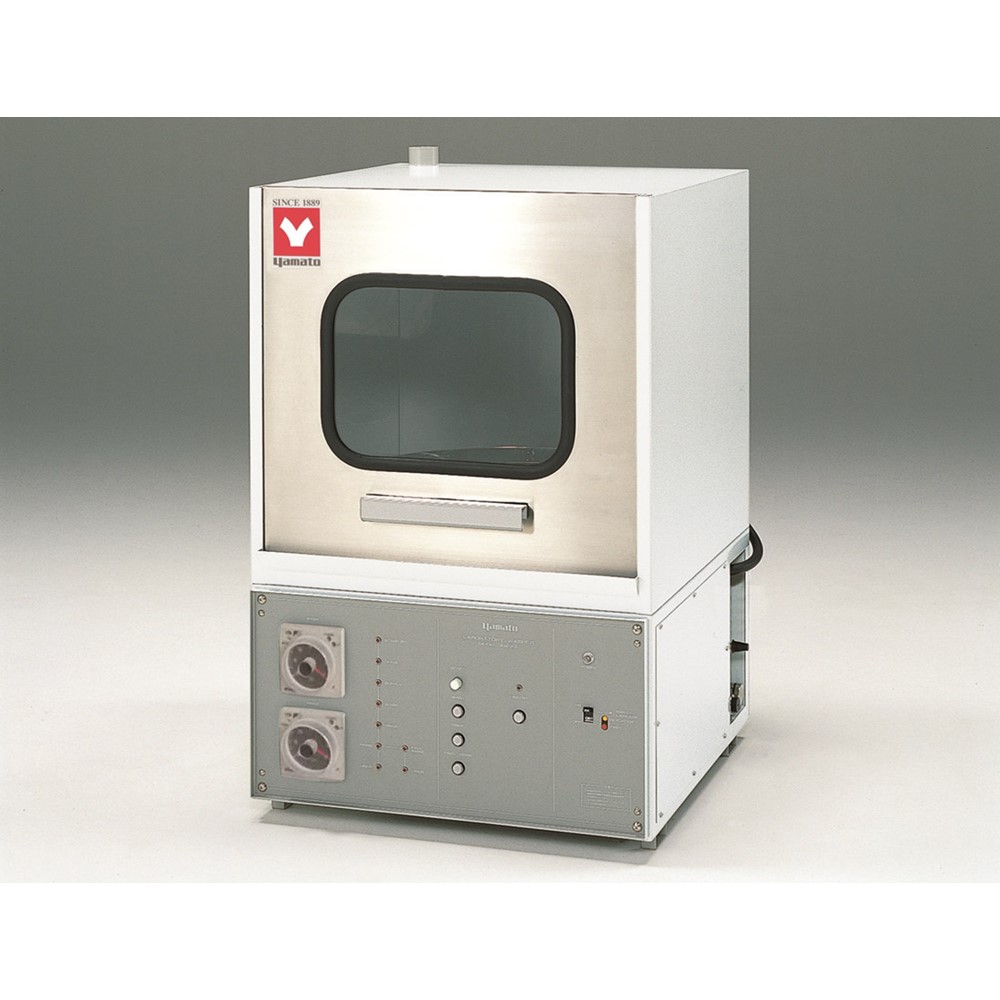

Compact and powerful automatic benchtop washer with spin table helps reduce laboratory glassware cleaning workload
Features of Laboratory Washer (Automatic, Compact) (AW62)
Compact and powerful automatic benchtop washer with spin table helps reduce laboratory glassware cleaning workload
Features of Laboratory Washer (Automatic, Compact) (AW62)
Features
All processes from wash to rinse are fully automatic. Each process is displayed on indicator
Features
Final rinse (option) with purified water available
Features
Water purifier connection is possible for pure water rinse process
Features
Wash process and time can be set according to glassware shape and contamination level
Features
Cleaning water temperature impacts the final cleaning results. With built-in water heater, no boiler piping and water heating system are required
Features
Powerful upward and downward two-way pressurized water jet method
Features
Optional jet rack is available for hard to clean targets, such as glassware with narrow neck or body
Model | AW62 |
---|---|
Cleaning method | Spray nozzle type, Turntable mthod |
Cleaning cycle | Wash (setting range: 0 to 30min.) |
Cleaning cycle | Rinse (setting range: 0 to 30min.) |
Cleaning cycle | Purified water rinse (optional) when connected with water purifier, Rinse clean with 20L purified water |
Water supply | Room temp. to 60°C |
Washing water temp. | 45 to 80°C |
Water heater | Built-in heater 6kW |
Supply water pressure | 0.1 to 0.3MPa |
Glassware stand | Turntable (Standard), racks (Optional) |
Water supply | Controlled by electromagnetic valve open / close, Water level adjustable by water level control switch |
Water drain | Natural drainage by water level gap |
Exterior material | Chrome-free electric galvanized steel plate, chemical-resistant paint |
Interior material | Stainless steel |
Spin table | Dia.550mm (max. load : 25kg) |
Door | Drop down style (can stop at any position) |
Accessories | Water supply hose (with coupler) 2m 1pc., Drain hose (I.D.25.4mm) 1.5m 1pc. , Phosphorus-free detergent 1kg (50mL measuring spoon 1pc.) , Vinyl cover, Main jet nozzle cleaning needle 1pc. , Water supply unit |
Consumable | Phosphorus-free detergent |
Internal dimensions(W×D×H mm) | 594×572×564mm |
External dimensions(W×D×H mm) | 600×620×940mm |
Remarks(dimensions) | Effective height: 345mm |
Power Source | AC220V/AC380V Three phase with step-down transformer |
Weight | 90kg |
