High precision and stability at high temperature hot plate
Features of Hot Plate (HK200)

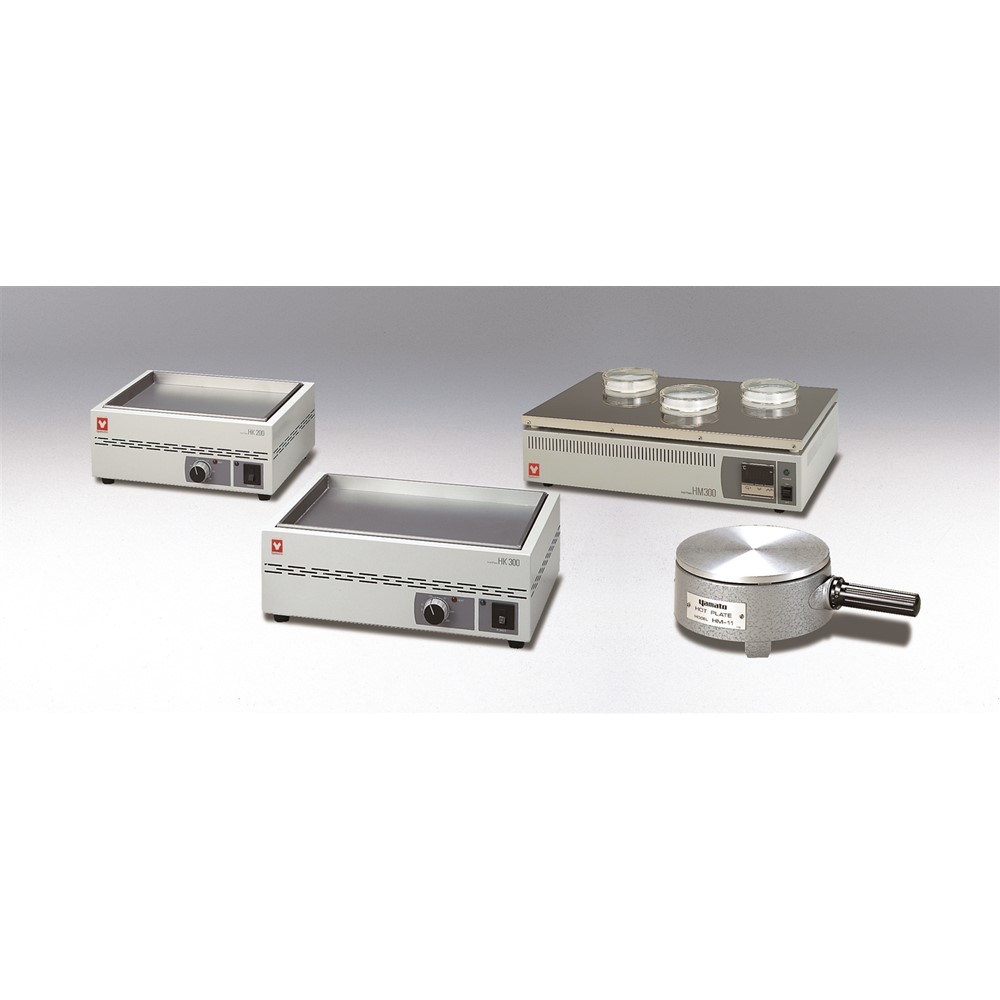

Hot Plate (HK200)
Description
Model HK200/300 is Usable, sand bath type.
Temperature control accuracy is stable however in high temp.
| Model | HK200 |
|---|---|
| Operating temperature range | 50 to 250℃ |
| Temp. control accuracy (with no load) | ±5.0℃ at 250℃ (at the center point of to plate) with no load |
| Max. temp reaching time | Approx. 40 min. at the center point of top plate (with no load) |
| Thermoregulator | Liquid expansion type |
| Hot plate material | Aluminum |
| Heater | 750 W |
| Safety devise | Circuit protector |
| Internal dimensions（W×D×H mm） | 338×238×25mm |
| External dimensions（W×D×H mm） | 392×330×160mm |
| Power Source | AC115V / AC220V Single-phase with step-down transformer |
| Weight | 6.2kg |
