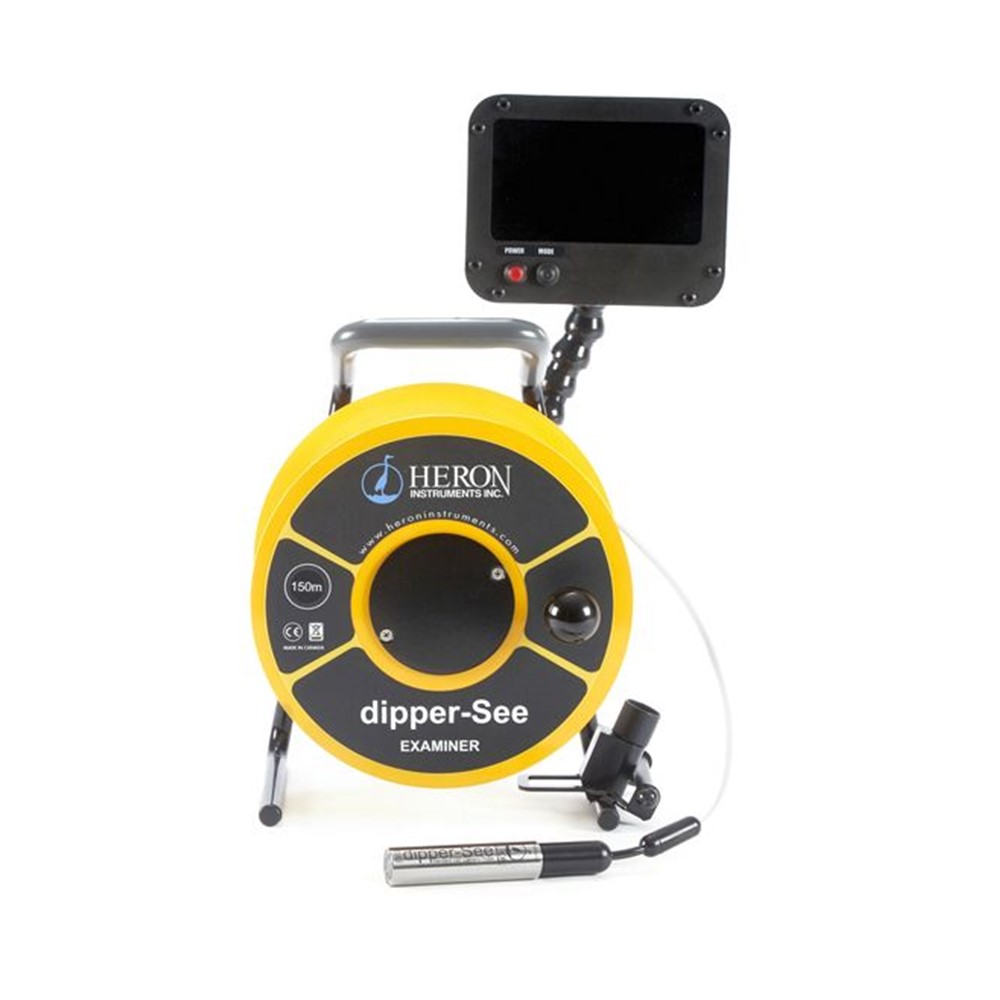

The Heron dipper-See EXAMINER is a cost-effective vertical, downhole inspection camera that allows for well inspections and maintenance.
Features
Overview
The Heron dipper-SEE is a cost-effective way for people to perform well inspections, maintenance, and installation quickly and accurately. The dipper-See EXAMINER comes with everything a well inspector, well driller, or hydrogeologist needs. Designed with portability in mind, this self-contained unit is ideal for viewing in wells, drains, vertical shafts, open bodies of water, boreholes and narrow tubes over 25mm (1”) in diameter.
Transportable

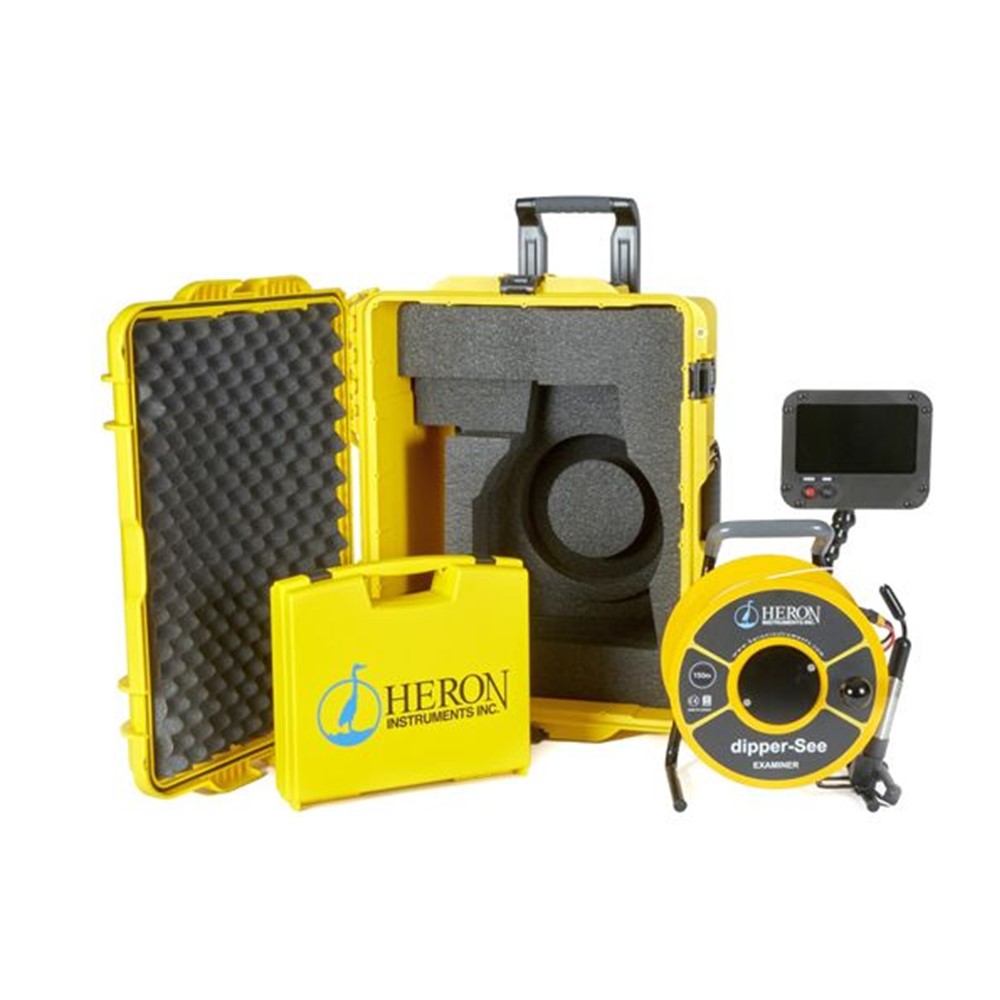

The dipper-See EXAMINER and the included accessories are easily transported in the super-tough wheeled carry case and accessory case.
Convenient Design

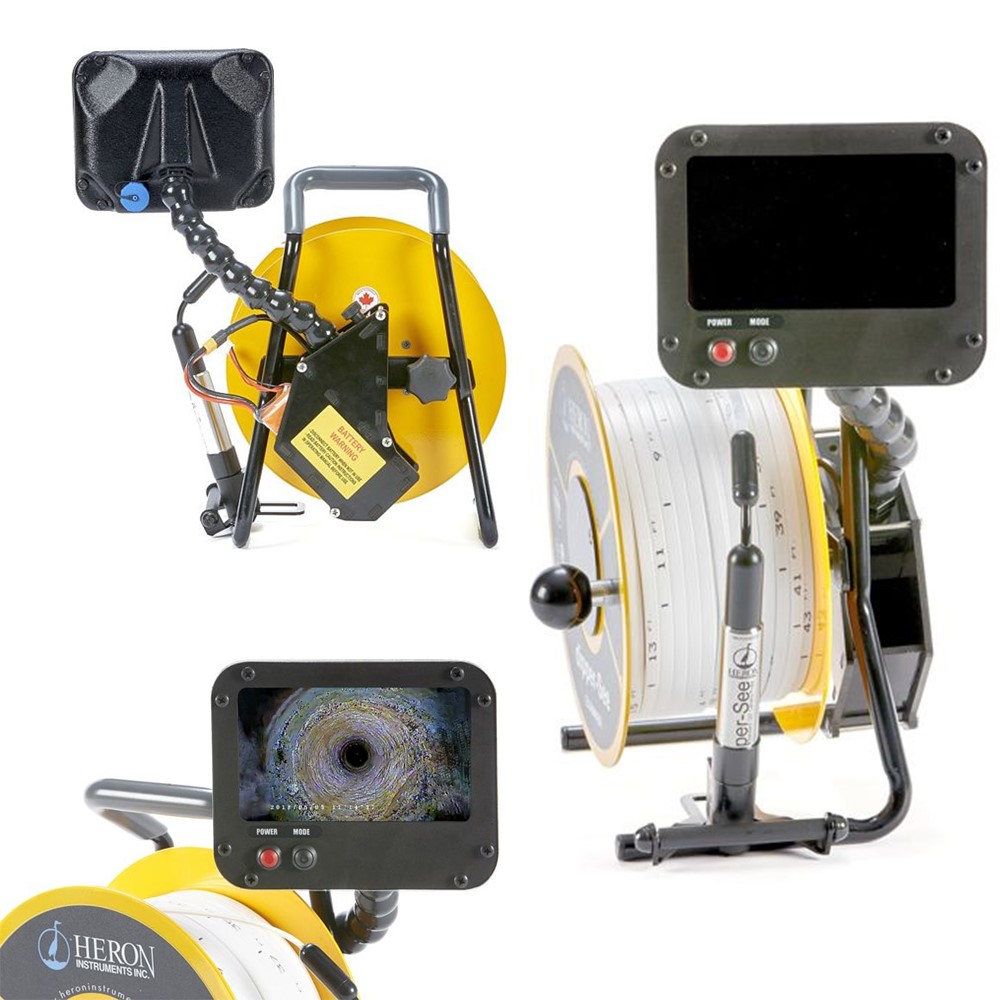

The adjustable positioning arm, conveniently attached to the frame, offers an ergonomic solution for adjusting the monitor for viewing the High Definition (HD) display screen at different angles and lighting conditions. The monitor conveniently houses all of the controls on the front of the panel. Record the video/audio on the SD card provided for easy video transfer to another device.
| Reel Assembly: | |
| Height | 36cm (14.2″) |
| Depth | 21cm (8.3″) |
| Width | 29cm (11.4″) |
| Weight (Reel Assembly Only) | 2.30kg (5.1lbs) |
| Plate Material | Aluminum |
| Brake | Ergonomic Dial |
| Hanger | Included on frame leg |
| Tape Guide | Included on frame leg |
| Available Tape Lengths | 150m, 500ft |
| Cable: | |
| Tape | Polyethylene |
| Jacketing | Polyethylene |
| Conductors x 4 | 7 strand (4 S/S & 3 copper) |
| Markings every meter or foot | |
| Width | .952cm (3/8″) |
| Break Strength | 127kg (280lbs) |
| Monitor/DVR: | |
| Resolution | 500TVL, 7.0″ (diagonal) |
| Video Recording | HD Video |
| Display | Full Colour LCD |
| Operating Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| DVR | External, Included (see manufacturer info for specs.) |
| SD Card | 32GB |
| Camera Probe: | |
| Weight | 315g +/- 5% |
| Length | 120mm (4.75″) |
| Diameter | 25mm (1″) |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Removable | Yes |
| Depth Rating | IP68 to 300m (1000ft) |
| Wetted Material | Sapphire, Viton, Stainless Steel 316, Delrin, Acrylic, Polyethylene |
| Lens | Clear Sapphire |
| Battery: | |
| Rechargeable x 2 | 11.1v, Lithium Ion |
| Charger | Plug type A, AC Input |
| Included: | |
| Rugged Carry Case | Wheeled, Lightweight NK-7 Polypropylene |
| Weight: | |
| Unit | 9.1kg (20lbs) |
| Unit/Accessories/Cases | 21.8kg (48lbs) |
| Warranty: | |
| Unit – 1 year | |
| Case – NANUK Lifetime Warranty |
