Suitable for:
- Flask 50 – 6,000mL
- very large flasks 10,000ml and 20,000ml

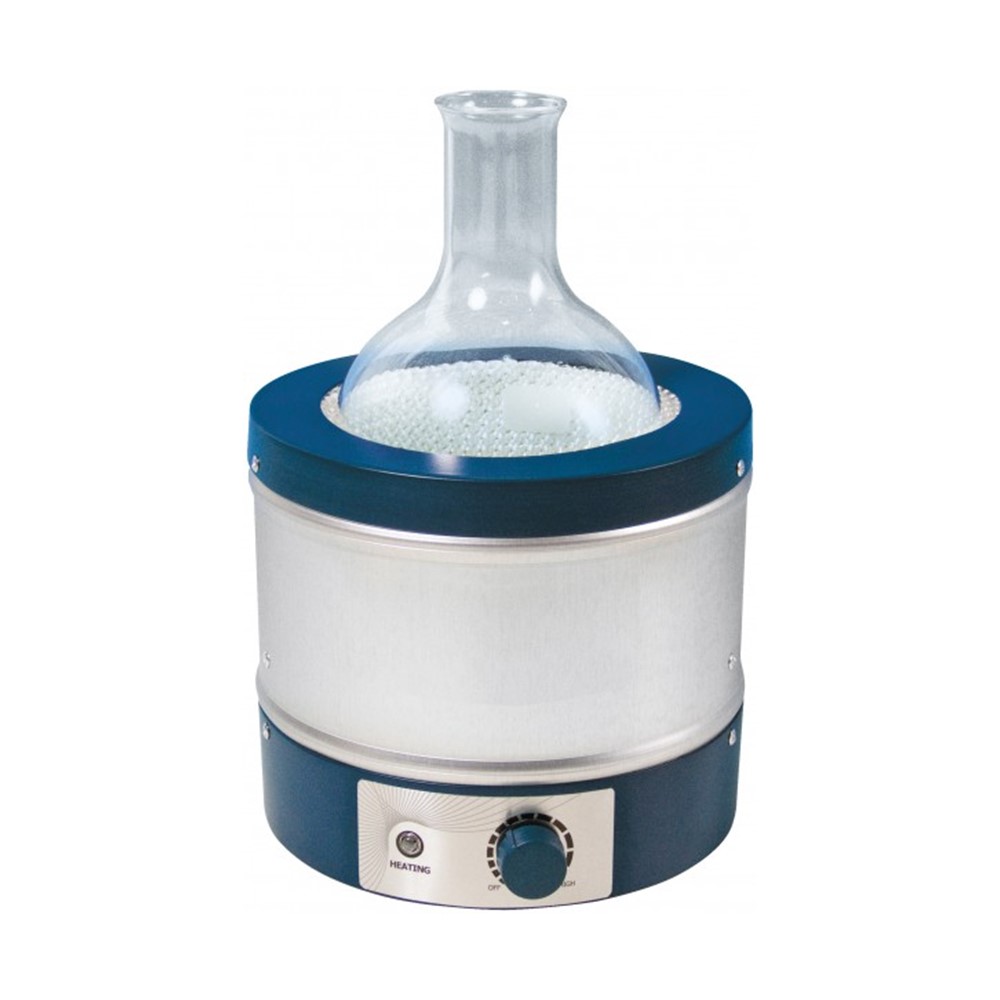

Heating jackets WHM for flasks
Description
Technical features:
- 100°C to 450°C or 100°C to 650°C
- Nickel-chrome heating element
- Coil design: acid-resistant and with a long service life
- any type of piston can be used
- CE certificate and traceability through serial numbers
Finishes:
- with integrated temperature control
- with integrated temperature and stirring control
- without controller (separate controller required)
- for high temperatures
- for very large vessels
Heating mantle, power cord, instruction manual (magnetic stir bars for versions with magnetic stirrer)
features
* 10,000mL and 20,000mL heating mantles without an integrated controller can only be operated with a digital controller.
Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.
execution
with integrated temperature control
height (inside)
40mm
height (outside)
150mm
diameter (outside)
Ø150mm
controllers
integrated
vessel diameter
Ø49 – 52mm
vascular capacity
50ml
tripod rod
Ø13x440mm
power consumption
80W
temperature range
100ºC – 450ºC
