Suitable for:
- Cup 100 – 10,000 ml

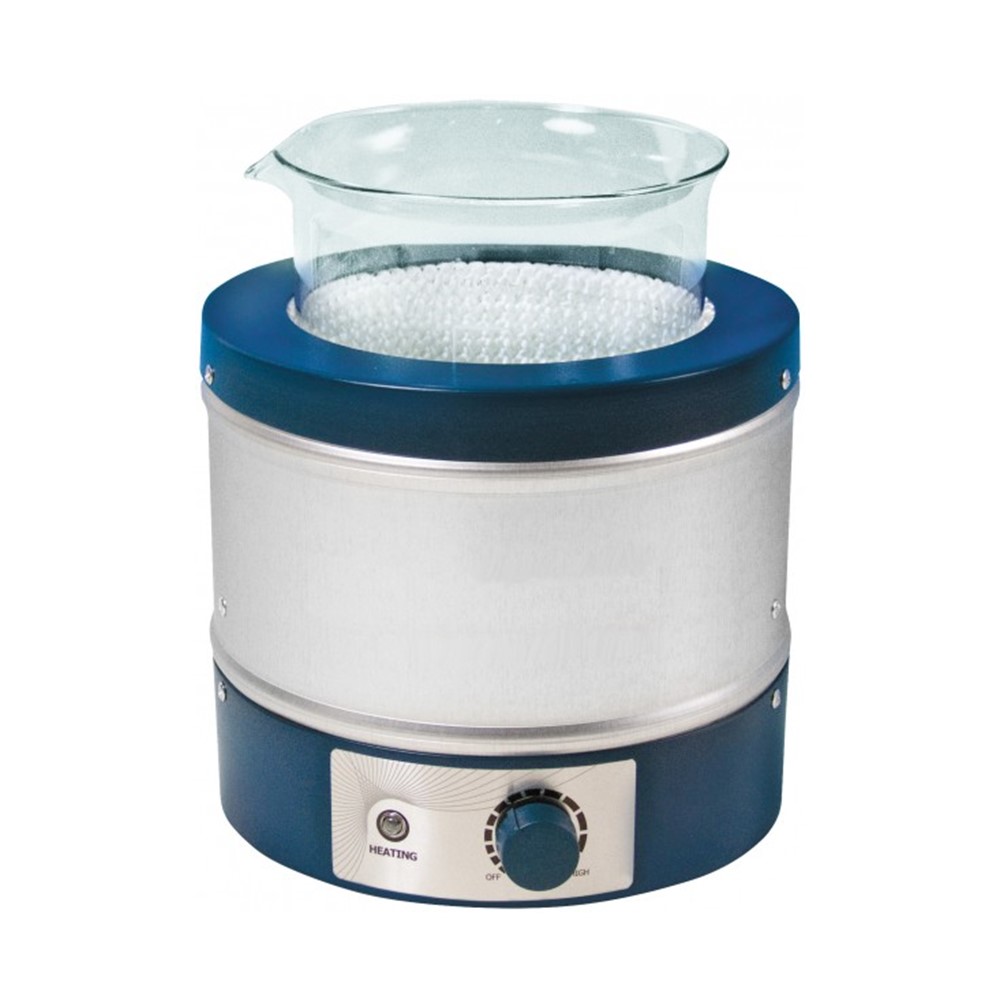

Heating jackets WHM for cups
Description
Technical features:
- 100ºC – 450ºC
- Nickel-chrome heating element
- Coil design: acid-resistant and with a long service life
- any type of cup can be used
- CE certificate and traceability through serial numbers
Finishes:
- with integrated temperature control
- with integrated temperature and stirring control
- without controller (separate controller required)
Heating mantle, power cord, instruction manual (magnetic stir bars for versions with magnetic stirrer)
features
10,000ml and 20,000ml heating mantles without an integrated controller can only be operated with a digital controller.
Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.
execution
with integrated temperature control
height (inside)
40mm
height (outside)
150mm
diameter (outside)
Ø150mm
controllers
integrated
vessel diameter
Ø50 – 52mm
vascular capacity
100ml
speed
50 – 750 rpm
tripod rod
Ø13x440mm
power consumption
80W
temperature range
100ºC – 450ºC
