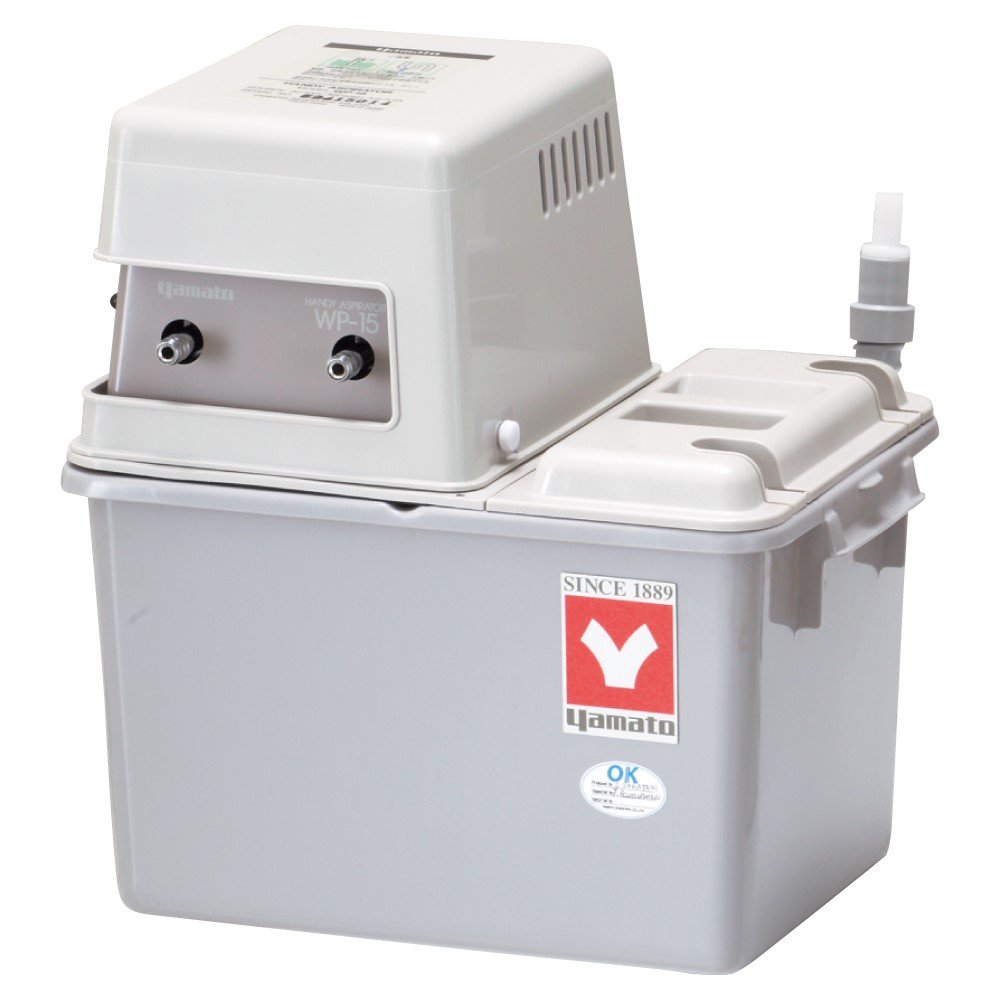

Water circulation type handy aspirator
Features of Handy Aspirator (WP-15)
Water circulation type handy aspirator
Features of Handy Aspirator (WP-15)
Features
It is a highly safe, durable aspirator that greatly improves exhaust performance and suppresses noise.
Features
The water tank is made of polypropirene resin
Features
It reduces noise generated when water is forced to circulate, enabling quiet operation
Features
The aspirator unit and the water tank are divided, maintenance and inspection are easy. In addition, a large inlet 210 x 130 mm is provided to insert a throw-in type cooler, which can easily cool the circulating water an maintain a strong suction force
Features
Vacuum degree can be set by attaching a vacuum regulator (Option)
Features
The motor has an over current protection device and a safety cover is attached
Model | WP-15 |
---|---|
Ultimate pressure | Depends on stream pressure at operating temperature |
Ultimate vacuum | 1.2kPa(9.2Torr)at 10℃ |
Ultimate vacuum | 2.3kPa(17.5Torr)at 20℃ |
Ultimate vacuum | 4.2kPa(31.8Torr)at 30℃ |
Discharge rate | 50Hz 11〜13L/min×2 |
Discharge rate | 60Hz 12〜14L/min×2 |
Aspirator | O.D. 12mm (metal) x 2 |
Water tank | Polypropyrene resin made 10L |
Circulation pump | 80W self-suction type Polypropyrene resin made |
Vacuum controller (with pressure gauge) | can be attached(Option) |
Drainage method | Natural drainage by overflow |
Suction port size | O.D. 12mm |
External dimensions(W×D×H mm) | 360×250×360mm |
Power Source | AC100V 2/2.3(50/60Hz)A |
Weight | 9kg |
