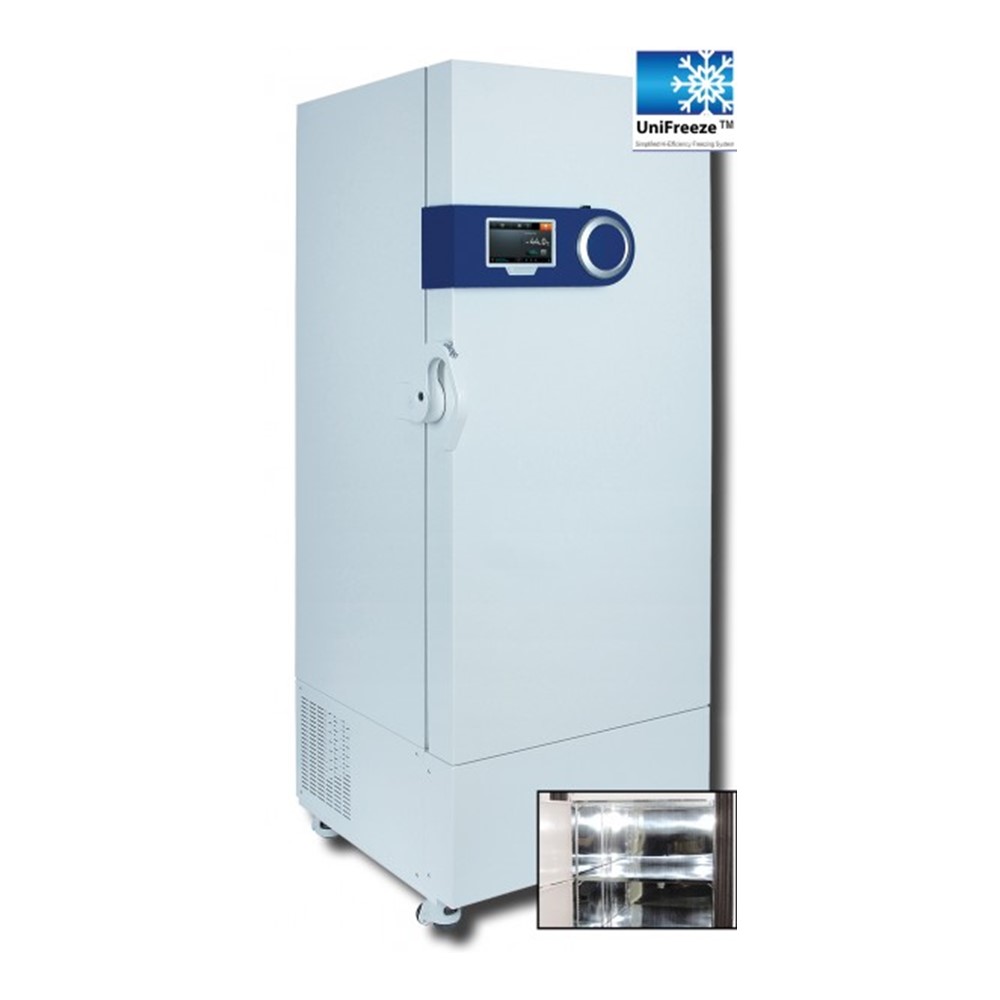

Freezers SWUF UniFreeze SmartLab 308/393/503/714/796 liters -86°C

Suitable for:

  • ultra low cooling
Category:

Description

Technical features:

  • CFC-free refrigerant (R-404A)
  • UniFreeze™ system
  • automatic vacuum dissolver – easy opening of the door
  • Hole for external temperature sensor
  • no filters and therefore no filter-related failures thanks to the blocking capacitor
  • less heat from the compressor thanks to the filterless system
  • easy maintenance and improved performance
  • high quality insulation panel and inner doors ensure defrosting on the outer surface
  • simple observation and control – at eye level
  • Stainless steel interior, powder coated steel body and inner door
  • incl. 3x stainless steel inserts for subdivision into 4 chambers
  • Casters for easy moving
  • UL/CUL, CE & RoHS certificate & with serial number for tracking
  • IQ/OQ available



Safety device:

  • Push alarm service to your smartphone
  • Sensor error detection
  • Door lock system, door opening error
  • Door and power failure alarm
  • Standard warning and alarm functions



Steering:

    • Smart-Lab™ control with 7″ touchscreen TFT LCD:
      • WiRe™ App Service, remote control system
      • various program settings
      • self-diagnostic function
      • automatic data recording
      • Data transfer via USB stick to the PC
      • Internet connection through WiFi



SWUF freezer, 3 or 4 stainless steel shelves, power cord, instruction manual

features

UniFreezeTM System: Single compressor ensures temperatures down to -86°C, minimizes power consumption and noise levels.

Environmentally friendly product

RoHs certified: No hazardous substances (Pb, Cd, Hg, Hex-Cr, PBB, PBDE) are used in all UniFreezeTM and DuoFreezeTM cooling devices!

Natural Refrigerants: Instead of HFC refrigerants (R-134a, R-404A, R-507), all Uni-FreezeTM and DuoFreezeTM models have a specially blended refrigerant made primarily of natural materials.

Power Consumption: Up to 39% lower than the average competitor.



Smart LabTM control:

  •  TFT LCD full touch screen:
    • WiRe™ App Service, remote control system
    • various program settings
    • Self-diagnosis and interactive temperature graph
    • automatic data recording and password protection
    • Data transfer via USB stick to the PC
    • digital calibration (compensation function)
    • Min./max. temperature memory & programming function
    • Push alarm service to your smartphone or tablet



Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.

execution

Max. number of racks: 16 pcs with 15 (3 x 5) racks (RFU4234)

width (inside)

600mm

length (inside)

500mm

height (inside)

1310mm

width (outside)

840mm

length (outside)

750mm

height (outside)

1900mm

suitable / suitable for

ultra low cooling

slots

3 stainless steel inserts for subdivision into 4 chambers

capacity

393 l

compressor

Hermetic execution

capacitor

Blocking capacitor, no pins, no filters

coolant

R-404A (CFC-free)

power consumption

373 W/hr

temperature range

-86°C to -65°C

packaging size

116x116x222 cm

sensor

Temperature sensor PT100
