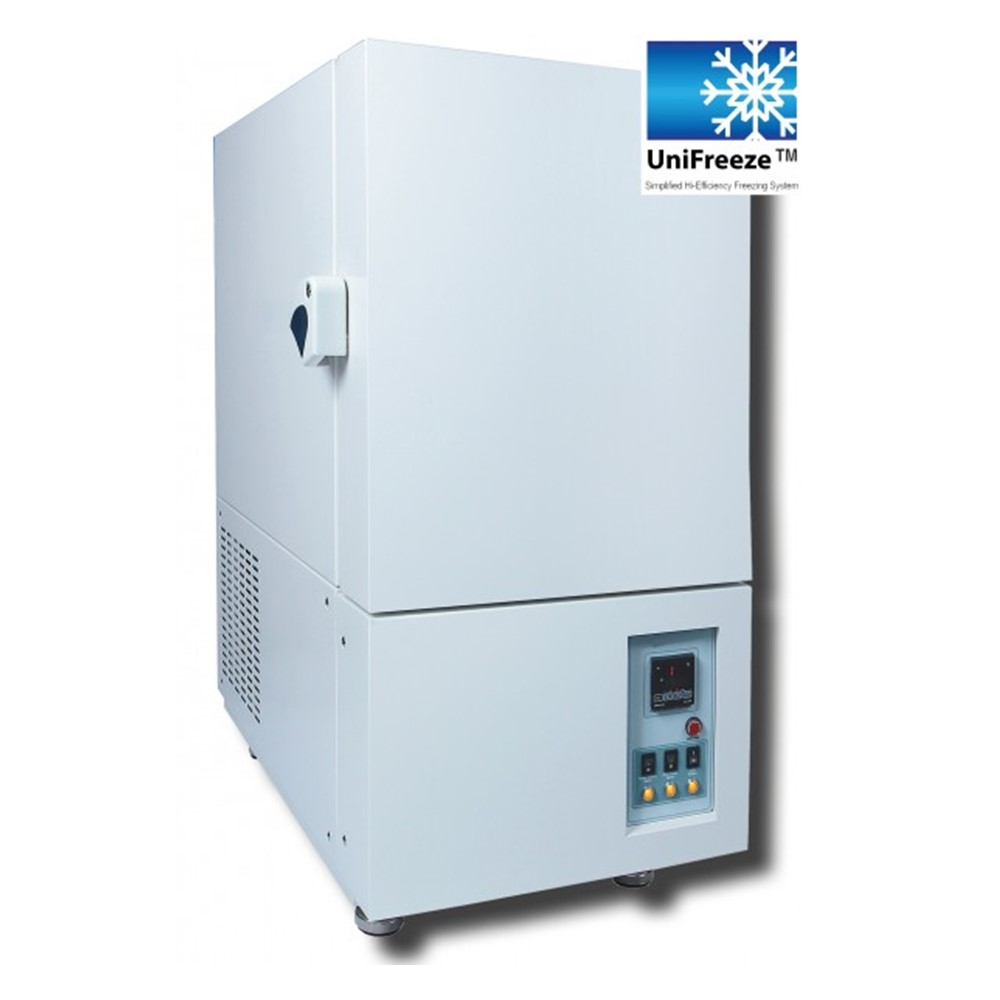

Freezer WUF-25 UniFreeze 25 liters -86°C

Suitable for:

  • ultra low cooling
Category:

Description

Technical features:

  • personal, compact, ultra-low temperature freezer
  • Freezing down to -86°C
  • CFC-free coolant
  • Hole for external temperature sensor
  • Blocking capacitor replaces filter
  • less heat from the compressor thanks to the filterless system
  • easy maintenance and improved performance
  • high quality insulation panel and inner doors ensure defrosting on the outer surface
  • Stainless steel interior & powder coated steel body
  • CE & RoHS certificate and with serial number for tracking
  • IQ/OQ available



Freezer WUF-25, power cord, instruction manual

features

UniFreezeTM System: Single compressor ensures temperatures down to -86°C, minimizes power consumption and noise levels.

Environmentally friendly product

RoHs certified: No hazardous substances (Pb, Cd, Hg, Hex-Cr, PBB, PBDE) are used in all UniFreezeTM and DuoFreezeTM cooling devices!

Natural Refrigerants: Instead of HFC refrigerants (R-134a, R-404A, R-507), all Uni-FreezeTM and DuoFreezeTM models have a specially blended refrigerant made primarily of natural materials.

Power Consumption: Up to 39% lower than the average competitor.



Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.

execution

Max. number of racks: -, only 10-15 boxes can be used

width (inside)

200mm

length (inside)

420mm

height (inside)

300mm

width (outside)

390mm

length (outside)

627mm

height (outside)

785mm

suitable / suitable for

ultra low cooling

capacity

25L

compressor

Hermetic execution

capacitor

Blocking capacitor, no pins, no filters

coolant

CFC-free

power consumption

321 W/h

temperature range

-86°C to -65°C, at 30°C room temperature & 70% humidity

packaging size

880x860x1300mm

sensor

Temperature sensor PT100
