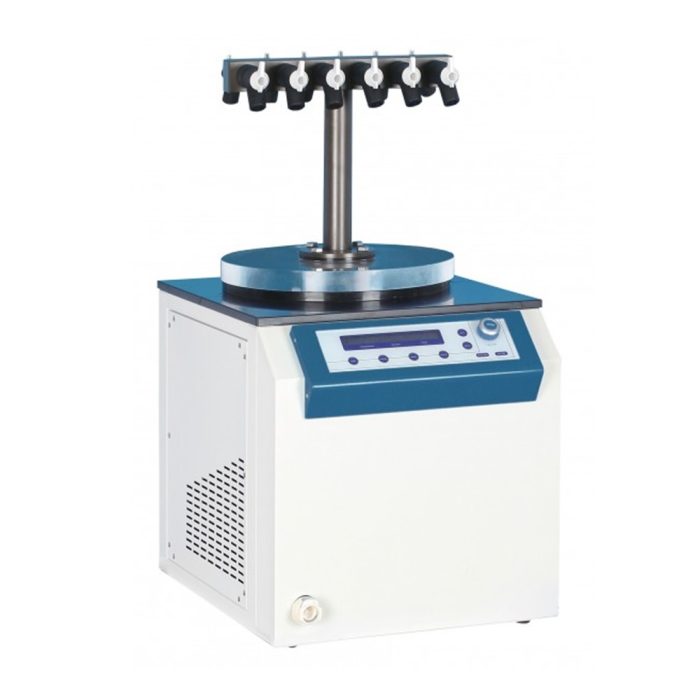

Freeze Dryer FD8 Freeze Dryer -60°C to -90°C

Suitable for:

  • Applications from biology, pharmaceutical or food industry to petroleum and semiconductor industry, etc.
Category:

Description

Technical features:

  • ergonomic design and compact housing size for all laboratory benches
  • allows automatic or manual control
  • Temperature and timer can be controlled in automatic mode
  • fast, integrated defrost function with hot gas for a quick change to the next cycle
  • LED light lights up as soon as temperature and vacuum are reached
  • homogeneous temperature distribution over all racks in the drying chamber
  • Manufactured from 304 stainless steel
  • Backlit LCD display shows temperature and vacuum
  • CE certificate and traceability through serial numbers



Steering:

  • Jog dial switch (turn + press) and control knob



Freeze Dryer FD-8, Power Cord, Instruction Manual

features

Control: Intuitive, capacitive control button control (jog dial), indicator LEDs for temperature and vacuum.

Freezing system: Fast freezing and defrosting function.

Accessories: Many accessories are available such as distributors, drying chambers or inserts. More information can be found here .



Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.

execution

Defrost type: manual

width (outside)

460mm

length (outside)

620mm

height (outside)

520mm

suitable / suitable for

Applications from biology, pharmaceutical or food industry to petroleum and semiconductor industry, etc.

Print

10 – 0.01 torr

capacity

Chamber: 8L

compressor

1/2 HP

capacitor

Capacity: 10 l, condenser: Ø 300 x 150 mm

sublimation

3L/day

temperature range

Cold trap: Max. -90°C, Condenser: Max. -40°C, Setting range: -60°C to -90°C

packaging size

560x760x675mm
