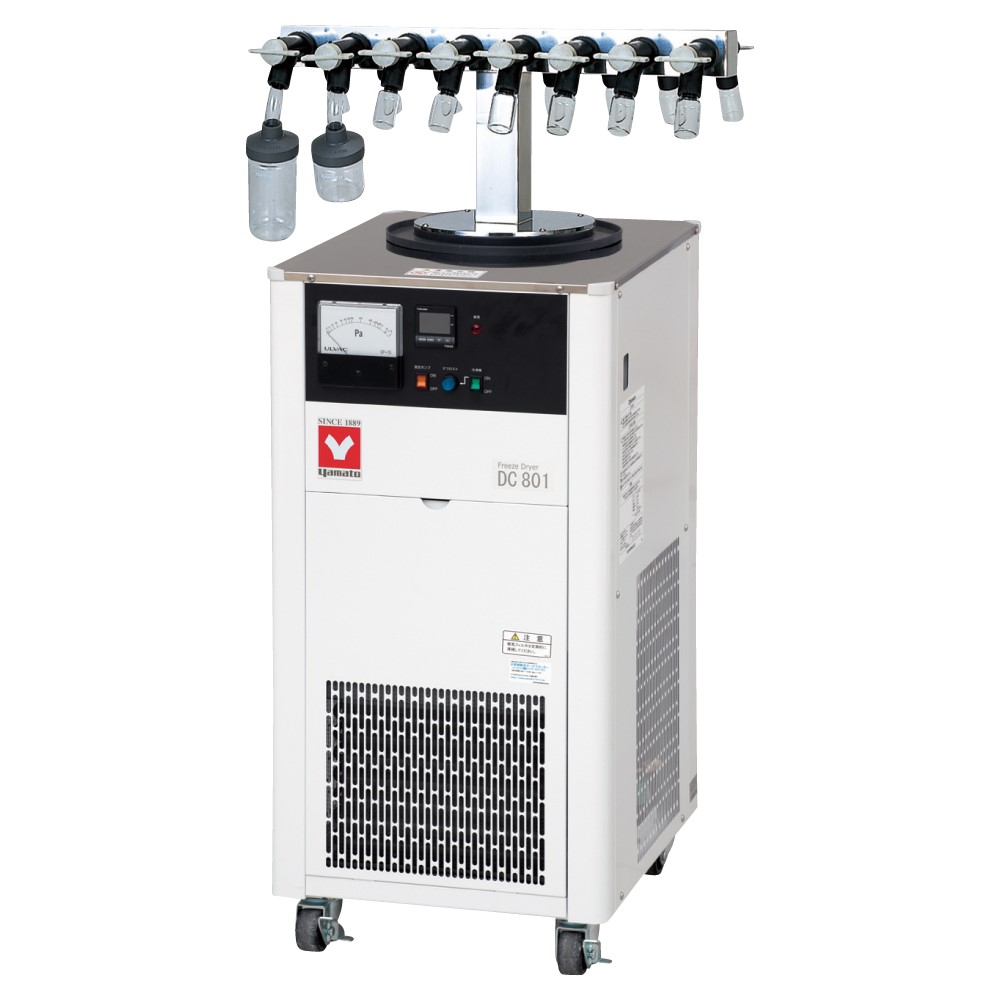

Freeze Dryer (DC801)

Features: Designed with automatic safety vacuum venting system which prevents oil back flow when turn off power supply or power failure.
Features: Ice can be refrozen and removed smoothly from the vessel by Hot Gas Bypass System.
Features: Equipped with Pirani Vacuum Gauge.
Features: Safety Valve is linked with Service Receptacle for Vacuum Pump.
Features: Environment friendly coolant used for refrigeration.
Features: Highly mobile on wheels

Model	DC801
Trap cooling temperature	-85℃
Dehumidify amount	1.0L
Temperature sensor	Platinum resistance temperature detector Pt100Ω
Temperature display	7 segment LCD
Refrigerator	Air Cooling Type, 350W
Refrigerator, coolant	R600a and others, mixed coolant
Compound gauge	High pressure/Low pressure monitor
Bath Shape, material	Cylinder, Stainless steel
Drain	Vacuum Hose with Stopper
Vacuum gauge	Pirani vacuum measure
Trap defrost	Defrosted by Hot Gas
Exhaust port (vacuum pump connection	Dia.17mm
Ambient temperature range	5 to 30°C
Safety device	Electric leakage breaker with over current protection,refrigerator overload relay, valve for back flow prevention
Trap dimensions	Dia.153 x H235mm
Accessories	Vacuum silicone grease, Vacuum hose, 10A fuse, 4 caster stop holders
External dimensions（W×D×H mm）	405×500×846mm
Remarks(dimensions)	Internal capacity approx. 4L
Power Source	AC115V/AC220V Single phase with step-down transformer
Weight	65kg
