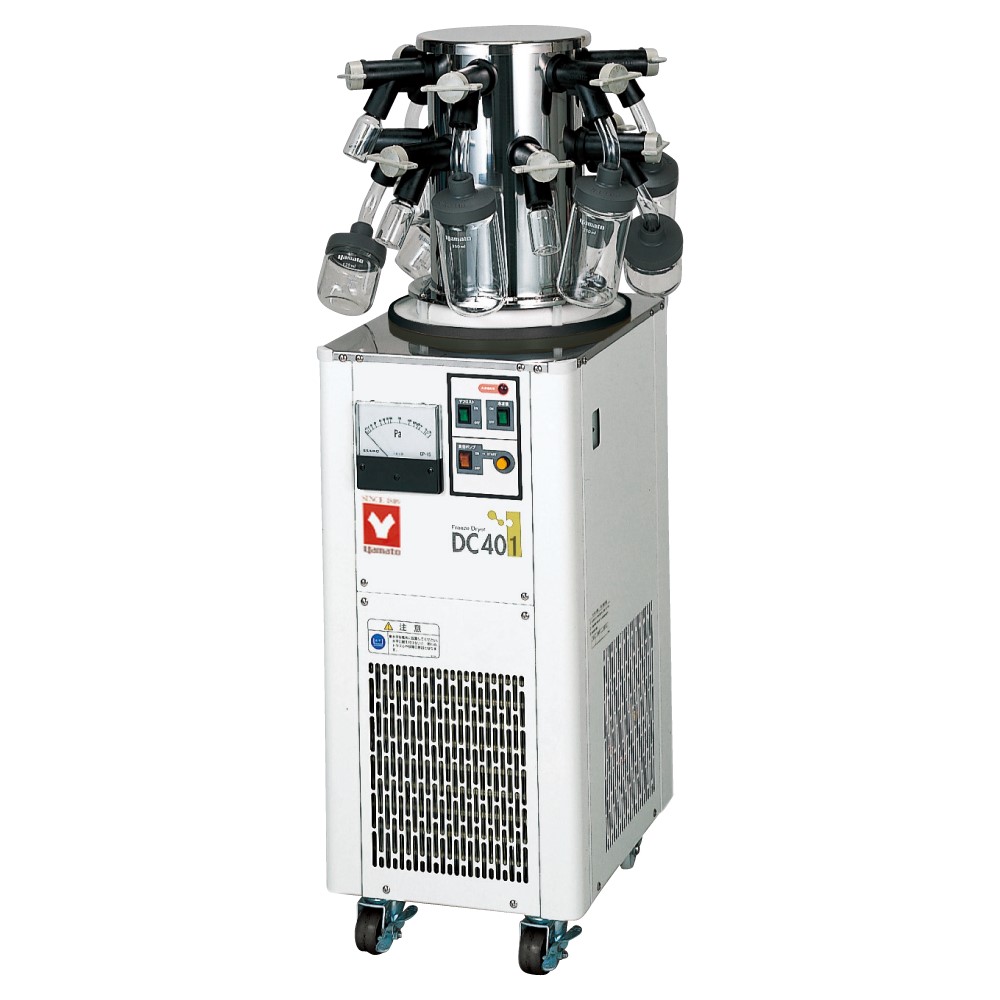

Freeze Dryer (DC401)

Contaminant free system

Features of Freeze Dryer (DC401)

Description

Features
Designed with automatic safety vacuum venting system which prevents oil back flow when turn off power supply or power failure.
Features
Ice can be refrozen and removed smoothly from the vessel by Hot Gas Bypass System.
Features
Equipped with Pirani Vacuum Gauge.
Features
Safety Valve is linked with Service Receptacle for Vacuum Pump.
Features
Environment friendly coolant used for refrigeration.
Features
Highly mobile on wheels.
Model DC401
Trap cooling temperature -45℃
Dehumidify amount 0.6L
Temperature sensor N/A
Temperature display N/A
Refrigerator Air Cooling Type, 400W
Refrigerator, coolant R404A, Coolant amount: 225g
Compound gauge N/A
Bath Shape, material Cylinder, Stainless steel
Drain Vacuum Hose with Stopper
Vacuum gauge Pirani vacuum measure
Trap defrost Defrosted by Hot Gas
Exhaust port (vacuum pump connection Dia.17mm
Ambient temperature range 5~30°C
Safety device Electric leakage breaker with over current protection,refrigerator overload relay, valve for back flow prevention
Trap dimensions Dia.153 x H235mm
Accessories Vacuum silicone grease, Vacuum hose, 10A fuse
External dimensions(W×D×H mm) 300×450×720mm
Remarks(dimensions) Internal capacity approx. 4L
Power Source AC115V/AC220V
Single phase with step-down transformer
Weight 43kg
