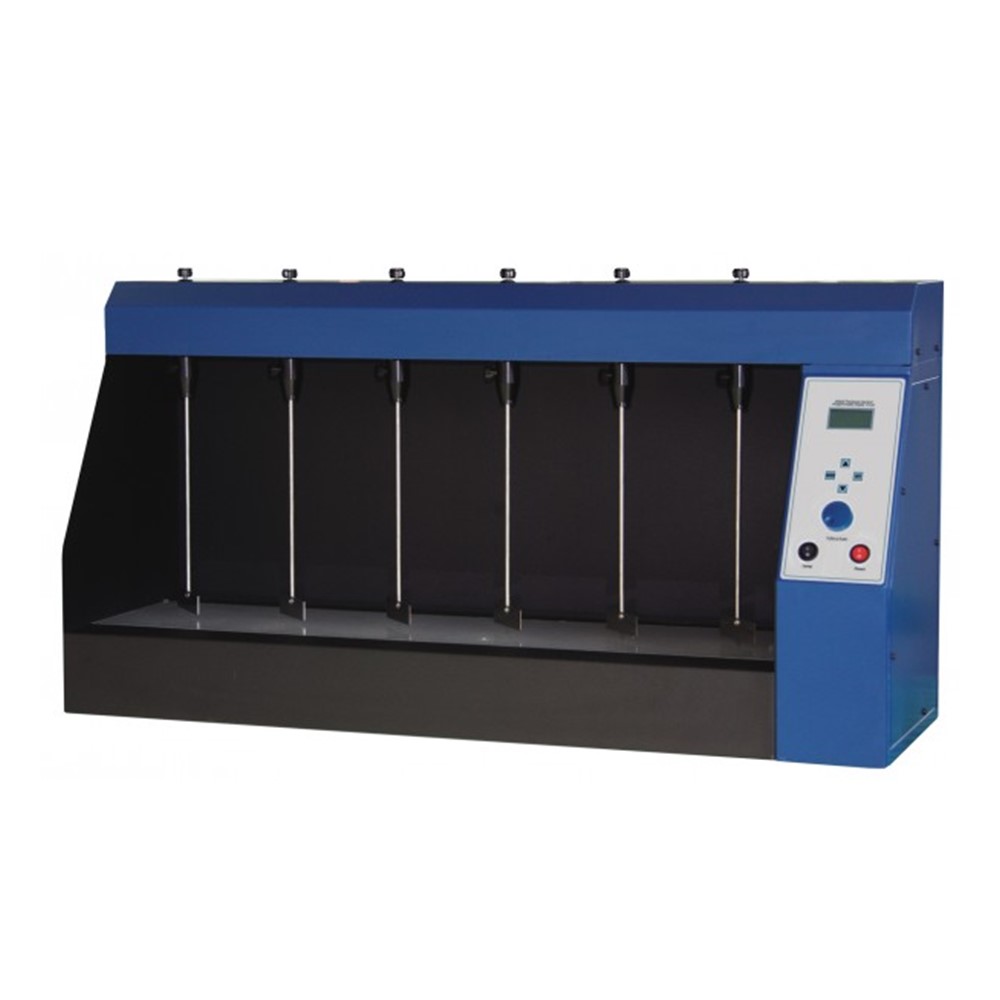

Flocculation plant JT-M6C, 6 stations, 20-300 rpm

Suitable for:

  • Flocculation tests in water treatment laboratories
  • coagulant chemistry
Category:

Description

Technical features:

  • 20 – 300 rpm
  • 6 stirring points
  • 6 light sources
  • programmable operation (6 programs with 10 levels)
  • Gear motor (ratio : 10:1)
  • digital LCD shows RPM, power bar graph, status and programming
  • specially developed toothed belt
  • CE certificate and traceability through serial numbers



Safety device:

  • Timer 99 hours 59 minutes with signal at the end of the timer
  • error status
  • lockdown mode
  • overload protection
  • overheat protection
  • LED power indicator



Steering:

  • programmable, digital feedback control with jog shuttle switch (turn + press)



JT-M6C flocculation system, power cord, instruction manual

features

Devices with a mains voltage of 230 V can also be supplied with a voltage of 120 V on request.

execution

6 stirring points

width (outside)

1000mm

length (outside)

310mm

height (outside)

535mm

suitable / suitable for

Flocculation tests in water treatment laboratories, coagulant chemistry

lighting

6 x 20 W (light sources)

wing

straight wing W 75 x H 25 mm

speed

20-300 rpm, controller resolution 5 rpm (DC gear motor ratio 10:1, 40 W)

capacity

6 x 1L beakers

stirrer diameter

Ø8 x L400mm

packaging size

1,120 x 430 x 740mm
