Large fine oven designed to support high throughput.
Features of Fine Oven (Large Capacity) (DF832)

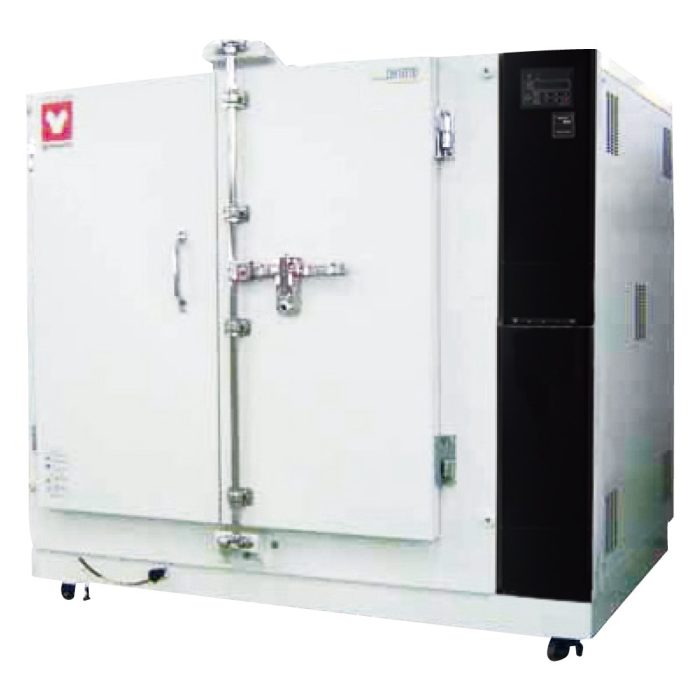

Fine Oven (Large Capacity) (DF832)
Description
High precision constant temperature oven for heat treatment
Allows precision maintenance of large parts at a constant temperature
Features
Quick exhaust and cooling in the unit with the exhaust damper
Features
Interactive key entry on the control panel with a green LED digital display for easy settings
Features
Features power consumption/ CO2 emissions monitoring
Features
Increased safety and self diagnostic functions
| Model | DF832 |
|---|---|
| Fan motor | Axial flow fan (capacitor motor: 20W) |
| Cable port | I.D. ø30mm (rear) |
| Heat insulator | Glass wool |
| Other additional structure | Exhaust damper (manual operation) |
| Safety device | Self-diagnostic functions (temp. sensor error, heater disconnection, SSR short-circuit, automatic overheat prevention), Door switch, Fan Failure Detection, key lock, independent overheat protection, electric leakage breaker with over current protection |
| Shelf / support | 3 pcs. / 6 pcs. |
| System | Forced air circulation and ventilation |
| Operating temp. range | Room temp. +15°C~200°C |
| Temperature fluctuation | 3.0°C (at 200°C) |
| Temperature slope | 12°C (at 200°C) |
| Temperature controller | PID control |
| PID Z control Temp setting method | Digital setting with ▲/▼ keys |
| Timer | 1 min~99 hrs 59 min (Resolution: 1 minute or 1 hour) |
| Operation function | Fixed temperature operation, Program operation (Maximum 99 steps, up to 99 patterns, repeat operation function) |
| Operation function | Duration/time select timer operation function (Fixed temperature operation, auto start/auto stop/quick auto stop, program operation auto start) |
| Additional functions | Accumulated Power on and Operation Time (up to 65,535 hours); Calendar Time (24 hours); Calibration Offset; Monitor Display of Accumulated Power Consumption, |
| Additional functions | Total CO2 Emission, and Heater operating Output; Power Recovery Mode; User Settings Save and Restore Function; Fan Speed Setting Function |
| Sensor | K-thermocouple (double sensor) |
| Heater | Stainless steel pipe heater with fins |
| Heater | 4.5kW |
| Internal dimensions（W×D×H mm） | 800×800×800mm |
| External dimensions（W×D×H mm） | 1500×1015×1330mm |
| Remarks(dimensions) | 512L |
| Power Source | AC220V 14A Three-phase |
| Weight | 350kg |
